- Page 1 Finch Jeti Converting JetiEX protocol to Albatross protocol Manual version: 1.0 RC Electronics support@rc-electronics. eu www.rc-electronics.eu...
- Page 2 Contents Introduction..............................3 Key features.............................3 Specifications............................3 Using the Finch Jeti module........................5 Powering the module..........................5 Update via SD card...........................5 Revision history............................6 - Converting JetiEX protocol to Albatross protocol Page 2...
- Page 3 Introduction The Finch Jeti unit is designed as bridge to convert Jeti EX to Albatross App protocol. It is converting Jeti data from Sparrow / Raven onboard units. Key features External SD for updates Plug & play Specifications...

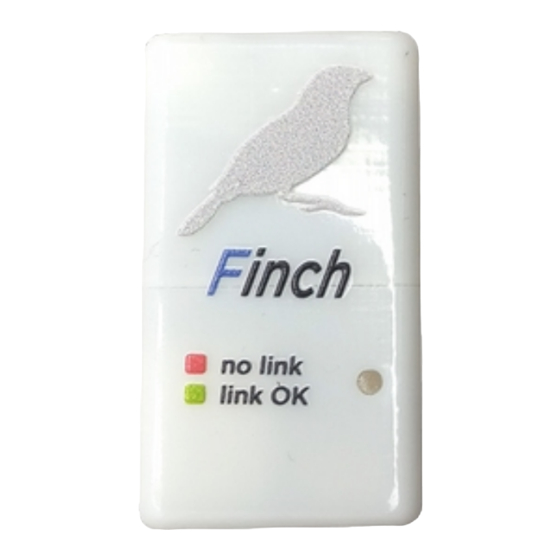

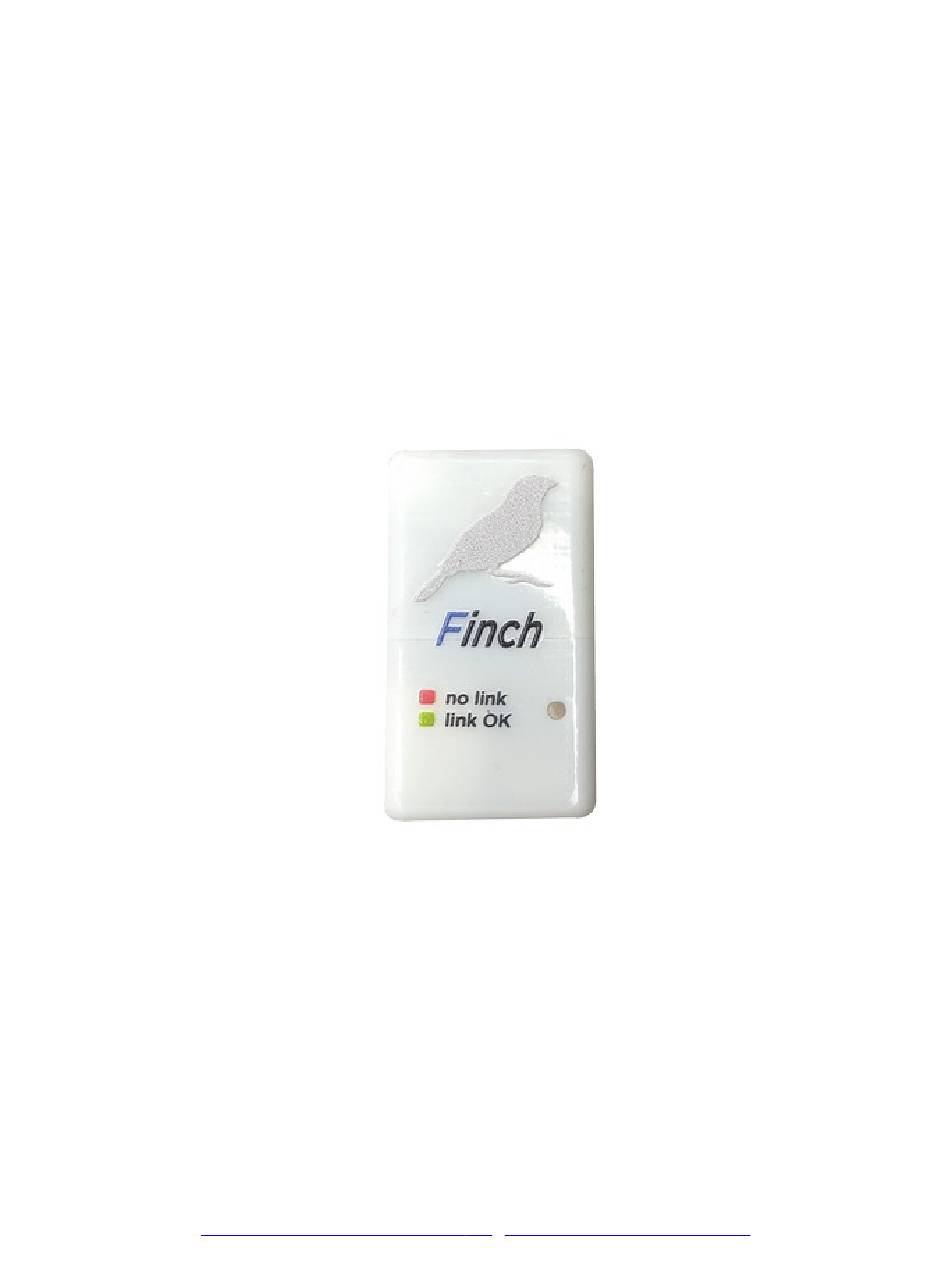

- Page 4 Physical overview Figure 1 shows the Finch Jeti module. Main connectors are: - 3- pin JR input for connecting Jeti Cable - Onboard multi-color LED shows different status of operation: At power on all LEDs are toggled (red, green, blue and white) to confirm its operation, during operation LED status are: red –...
- Page 5 Powering the module To power the Finch Jeti module connect it to a tablet or phone via Finch USB cable. Connect Jeti Cable to Finch 3-pin JR connector. Connect onboard unit and green LED must turn on. Run the Albatross application and you are ready to use it.
- Page 6 Revision history 20.12.2019 v1.0 - initial release - Converting JetiEX protocol to Albatross protocol Page 6...
