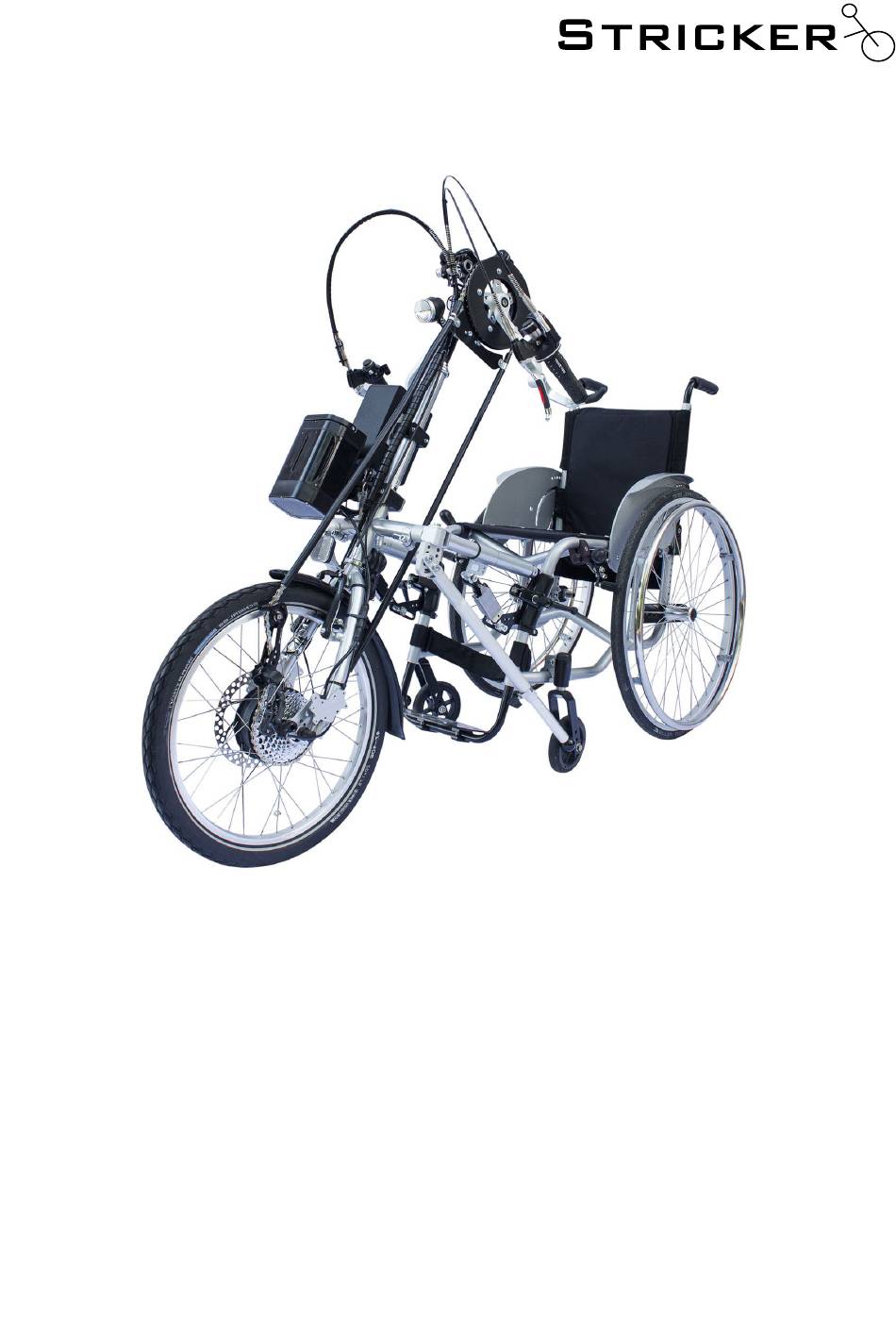

- Page 1 Model series Lipo Smart Smart Wild Additional operating instructions R&E Stricker Reha-Entwicklungen GmbH This supplementary instruction manual for the Lipo Smart and Smart Wild series supplements the general instruction manual for the City, Ultra, Sport, Neodrives and Lipo Smart series!
- Page 2 Misprints, errors and price or product changes reserved. Product changes include, but are not limited to, changes resulting from further development of mechanics, software or legal requirements. Date: 2.11.2021 © R&E Stricker Reha-Entwicklungen GmbH, Bühl Reprint, even in part, only with the written permission of R&E Stricker Reha-Entwicklungen GmbH , Bühl.
-
Page 3: Table Of Contents
Transportation in vehicle ......................... 13 10 Disposal and recycling ........................13 11 Warranty and guarantee ........................14 12 Liability ............................14 Attachment ............................15 Technical data Lipo Smart ........................15 Technical data Smart Wild ........................15 R&E Stricker Reha-Entwicklungen GmbH Additional operating instructions Lipo Smart... -
Page 4: Declaration Of Conformity
Our power assist devices have been tested by means of an electromagnetic compatibility test (EMC).. In the event of a change not agreed with R&E Stricker GmbH, this declaration loses its validity. 2 Introductory notes WARNING Before operating the handcycle or power assist device, please read these operating instructions and all other supplied operating instructions carefully and observe them. -
Page 5: Safety Instructions For Battery And Charger
The temperature must WARNING not exceed 45 °C. To prevent overheating, take an operating break to relieve the batteries. Do not leave the battery unattended during the charging process. R&E Stricker Reha-Entwicklungen GmbH Additional operating instructions Lipo Smart... -
Page 6: Operation
Do not store the batteries in places that are exposed to heat for long periods of time (sunlit car boot, garden shed, etc.). The service life of the battery depends, among other things, on the storage conditions. Additional operating instructions Lipo Smart R&E Stricker Reha-Entwicklungen GmbH... - Page 7 Press and hold the left brake lever. Now carefully accelerate at the same time. Reduce the pressure on the brake as you slowly apply more throttle. Fig. 2: Lipo Smart control unit „ON“ position R&E Stricker Reha-Entwicklungen GmbH Additional operating instructions Lipo Smart...
- Page 8 Turn off the battery with the main switch on the battery. You will know the battery is off when the light on the battery goes out. Fig. 4: Battery left switched on Fig. 3: Lipo Smart control unit position „OFF Additional operating instructions Lipo Smart R&E Stricker Reha-Entwicklungen GmbH...
- Page 9 Always switch two switches at the same time. Make sure that the left or right switches are switched to the same position at all times. Fig. 7: Battery bottom left switched on R&E Stricker Reha-Entwicklungen GmbH Additional operating instructions Lipo Smart...
-
Page 10: Smart Wild Model Series
Slide the battery onto the holder from above and lock it with the key. You can check the charge level via the charge level indicator on the battery (Fig. 9). Fig. 10: Switch on the battery Additional operating instructions Lipo Smart R&E Stricker Reha-Entwicklungen GmbH... - Page 11 Fig. 12: Control unit on the left handle Press and hold the on/off switch on the control unit for 3-5 seconds until the Stricker logo appears on the display. The +/- keys on the control unit are used to control the speed levels 1-5. These are shown on the display under the speed indicator.
- Page 12 (Fig. 16) (Fig. 17). accelerate. If the throttle grip is turned back to the zero position after accelerating, this will deactivate the cruise control. Additional operating instructions Lipo Smart R&E Stricker Reha-Entwicklungen GmbH...
- Page 13 6.2.5 Battery change Only purchase batteries for your handbike from one of our certified Stricker dealers or directly from the factory. Our batteries might look similar to other e-bike batteries and might also fit on the bracket.
-
Page 14: Battery And Charger
Before you can remove the wheel of the Lipo Smart, you must disconnect the motor cable at the fork. To do this, you may need to unravel cable ties. Once the motor cable is disconnected, you Additional operating instructions Lipo Smart R&E Stricker Reha-Entwicklungen GmbH... -
Page 15: Transport
Avoid taping parcel tape to the handcycle, as Some batteries from R&E Stricker GmbH are adhesive residue is difficult to remove. suitable for air travel according to IATA guidelines Dispose of all other components of your handcycle (as of 2020). -
Page 16: Warranty And Guarantee
(as at the time of printing). These can be viewed in full at the web address http://www.stricker-handbikes. de/de/agb. The warranty period for the handbike is 2 years. The batteries for our Lipo and Neodrives models also have a 2 year warranty. -
Page 17: Attachment
+5° to Battery 30° Battery type Lithium Discharge temperature range -20° to 40° Rated capacity 13 Ah Capacity display or 17 Ah battery and display Rated voltage 48 V Weight 4 kg R&E Stricker Reha-Entwicklungen GmbH Additional operating instructions Lipo Smart... - Page 18 20 °C, steady ride, etc.), a drive power of 100 watts and a pedaling power of 100 watts, the indicated range can be achieved. Subject to changes in technology and design due to continuous further developments. Additional operating instructions Lipo Smart R&E Stricker Reha-Entwicklungen GmbH...
- Page 19 Attachment R&E Stricker Reha-Entwicklungen GmbH Additional operating instructions Lipo Smart...
- Page 20 Misprints, errors and price or product changes reserved. Product changes include, but are not limited to, changes resulting from further development of mechanics, software or legal requirements. Date: 2.11.2021 © R&E Stricker Reha-Entwicklungen GmbH, Bühl Reprint, even in part, only with the written permission of R&E Stricker Reha-Entwicklungen GmbH , Bühl.
