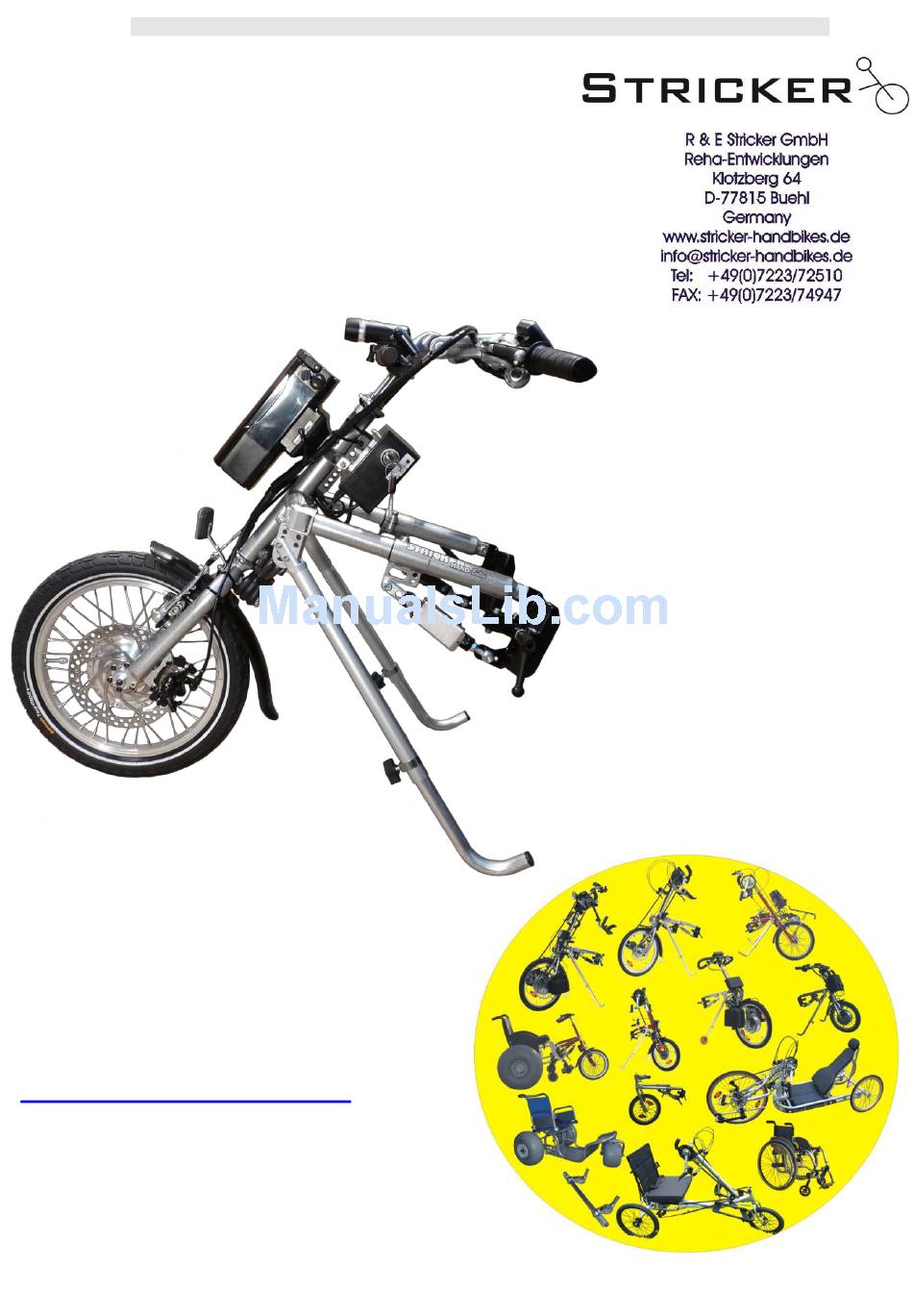

Page 1: Owners Manual
Owners manual Lipo Lomo V16/4 Hand over to the customer always together with the standard manual Find an installation Video at www.strickerhandbikes.de /installation - 1 -... -
Page 2: Table Of Contents
Stricker Lipo Lomo Instruction Vers 15/07 The device complies with the current standards and directives of the EU. We certify this in the EC declaration of conformity. If required we will be glad to send you the according declaration of conformity. - Page 3 driving uphill: For protecting the system, watch the battery temperature at the display (see page 11) while driving up the hill. The temperature shouldn’t go over 45 degrees Celsius. Attention! During connecting the handbike to the wheelchair, make sure that the clamps are parallel to the tubes of the wheelchair.
-
Page 4: Operation Of The Lipo Lomo
Owners manual Operation of the Lipo Lomo Check if all components are screwed tight. The cables may not disturb the steering and must be fixed narrow to the frame. No cable may be damaged. Use fully charged battery. Choose a calm place for using the Lipo Lomo the first time. Start: key switch „on“(picture 5;... - Page 5 key position: picture 6: on Picture 7: off battery main switch always turn off at the break of journey picture 7: off Picture 8: on - 5 -...
-
Page 6: Capacity Display Of The Batterie
Capacity display of the battery see charging conditions by pushing the button Batteries The Lipo Lomo has a maintenance-free 36 Volt Lipo Battery with a capacity of 6,75 A. The batteries have no so called memory effect. You can charge all the time. I.e. -
Page 7: Fuse
3.1 Fuse The battery has a fuse, 16 A slow. Our order number is 630947-0. The new batteries (since 2012) with the yellow casing don’t have a fuse. Since 2015 the batteries have a fuse again. 3.2 Remove the battery For removing the battery turn the key counterclockwise and pull the battery from the socket. -
Page 8: Optional Equipment: 2 Lipo Batteries Below The Fork With 2 Switches
batteries connected at the fork with 2 switches (no standard battery connector on top) At the controller case there are 2 dip-switches. One for switch the batteries from right to left because it’s not allowed to connect the batteries parallel. And one for switch the display to the correct battery. -
Page 9: Optional Equipment: 2 Lipo Batteries Below The Fork With 4 Switches
with the possibility to connect one battery on top at the standard battery connector At the controller case there are 4 dip-switches. Ones for switch the batteries from right to left because it’s not allowed to connect the batteries parallel. And ones for switch the display to the correct battery. -
Page 10: Optional Equipment: Leadacid Batteries At Klickfixconnector Additional To Lipo Battery
to lipo battery above with switch from lipo battery to lead acid battery. The capacity display is not working while lead acid battery is on duty. The extra batterie comes with an automatic charger 36V/1,4A with following performance: 3 steps charge control for fast an automatic charge ... -
Page 11: Charger And Charging Of The Batterie
4 Charger and charging of the battery - 11 -... -
Page 12: Instruction Of The Capacity Display
5 Instruction of the capacity display - 12 -... -
Page 13: Maintenance
6 Maintenance Before every ride check the tyre pressure of the drive wheel. It should be three bars. Make sure that the electrical connectors have secure contact. Before riding test also the effectivity of the brakes. mechanical parts: In principle all bolts of the non-moveable parts of the frame have to be tightened firmly (Allen key 6mm) The bolts S1L and S1R of the cross bar need to be tightened very firmly to avoid a slipping movement of the cross tube. -
Page 14: Change Of Tyres
6.1 Change of tires Before changing the tire disconnect both connectors (picture 10) by cutting the cable ties open. Stick it together after the change and fix it with cable ties again (picture 11). Picture 11 Picture 10 6.2 circuit diagram Display (4-pin) 5 3speed switch (3-pin) -
Page 15: Tecchnical Facts
8 Technical facts weight: ready to start with battery: 15,65 kg transport without battery: 13,75 kg weight without kickstand and battery: 13,3 kg battery: 1,9 kg measure: height = 90 cm breadth = 53 cm length = 48 cm weight of driver: 120 kg max. -
Page 16: Accessories
9 Accessories 202032-0 Klickfixconnector for following bags etc. 202008-0 bag (big 8 liter) 202033-0 vario rack - 16 -... - Page 17 202001-0 basket (big, 18 liter) 600133-0 luggage carrier: - 17 -...
