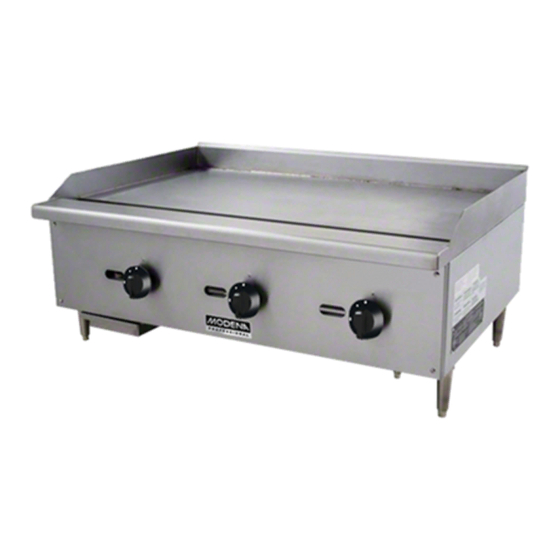

- Page 1 User Manual Book Fry Top FT 6930G, FT 6620G...
- Page 2 Thank you for your trust in choosing MODENA products for your household needs. With your satisfaction as our priority, we constantly aim to deliver stylishly designed products equipped with state-of-the-art technology to assist you in your daily activities. This is your guidebook containing everything you need to know about our product. Please reach out to us if you need further assistance or other information via our Customer Care or our official website www.modena.com.
- Page 3 CONTENTS Page INTRODUCTION - Part 1 : Name of Parts - Part 2 : Installation - Part 3 : How to Use - Part 4 : Cleaning & Maintenance - Part 5 : Troubleshooting - Part 6 : Specification...
- Page 4 Part 1: Name of Parts The picture is a general overview and is not necessarily the same a sthe product you receive. Features and completeness depends on the type of the products.
- Page 5 FT 6930G FT 6620G...
- Page 6 DO NOT operate this appliance if the smell of gas occurs. Turn off all gas supply valves and move to a remote location and contact MODENA Call Center. The technical content of this manual, including any parts pictures and/or adjustment procedures, is intended for...
- Page 7 Notice: The warrant y on this appliance is in effect only when the appliance is installed in accordance with these instructions and local codes and ordinances. MODENA declares of no liability for any damage or injury res ult ing from failure t o comply with this notice.
- Page 8 Addi ti ona l I nform a ti on : 1. The gas supply line used to connect the appliance to the gas supply system must be black iron pipe, or other material as approved by local ordinanc e for gas piping. 2.
- Page 9 Important: All pipe joints must be checked for leaks before lighting. Leak checks should be performed with a soap and water solution. Warning: FIRE HAZARD, This appliance is supplied with a gas pressure regulator. Failure to properly install the supplied regulator will result in an extremely hazardous c ondit ion. Flow arrow s t amped on body of regulator must point toward the appliance.
- Page 10 DO NOT use this appliance if it has been submerged in water. Contact MODENA Call Center to examine the appliance and to service or replac e any c omponent whic h has been s ubmerged. B urners which become wet must be thoroughly dried before use.
- Page 11 WARNING: FIRE HAZARD, NEVER attempt to force or repair a stuck control valve. Contact MODENA Call Center for repairs. Forced or improperly repaired valves can lead to fire and/or explosion. ...
- Page 12 Important: Use only factory authorized service parts and replacement filters. For factory authorized service, or to order factory authorized replacement parts, contact MODENA Call Center. Part 4: Cleaning & Maintenance A. Cleaning Appliance Preparation: ...
- Page 13 4. Turn control to OFF. Allow the griddle surface to cool, and then wipe the surface with a c lean cloth. Dry the griddle surface thoroughly. Important: Season the cooking surface after each cleaning. 5. At least once each day, the grease trough must be cleaned. Using a scraper, remove all grease and food waste from the grease trough by pushing it down the waste hole and into the grease tray.
- Page 14 Note: There are no user s ervic eable c omponent s in t he burner assemblies or in the control valves. In all cases of damage or malfunc t ion, contact MODENA Call Center for repairs. Mentioned troubles are just for reference. If any failure occurs, please stop using, and inform contacting MODENA Call Center or the authorized technicians to check and repair.
- Page 15 Part 6: Specification MODEL FT 6930G FT 6620G Type Gas fry top Gas fry top Numbers of burner 3 Gas 2 Gas Color Stainless Stainless Gas type LPG or NG LPG or NG Power (BTU/hr) 75000 50000 Product Dimension Length (mm)
- Page 16 11/20...
