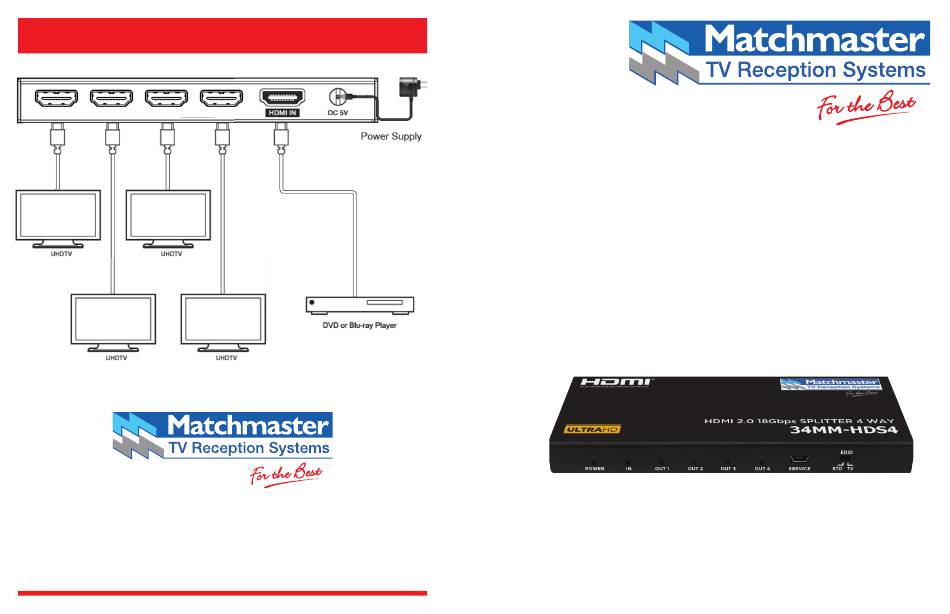

- Page 1 6. Application Example HDMI OUT 4 HDMI OUT 3 HDMI OUT 2 HDMI OUT 1 34MM-HDS4 HDMI 2.0 18Gbps SPLITTER 4 WAY QUICK GUIDE AU Technical Support 1800-AERIAL 237425 www.matchmaster.com.au NZ Technical Support 0800-AERIAL 237425 www.matchmaster.co.nz...
- Page 2 Thank you for purchasing this product 1. Introduction For optimum performance and safety, please read these 1 x 4 HDMI 18Gbps Splitter is an advanced solution for instructions carefully before connecting, operating or splitting HDMI content to 4 x HDMI outputs at the same adjusting this product.
- Page 3 4. Specifications 5. Operation Controls and Functions Technical Video Bandwidth 600MHz/18Gbps OUT 1 OUT 2 OUT 3 OUT 4 Input Ports 1 x HDMI Type A [19-pin female] Output Ports 4 x HDMI Type A [19-pin female] Video Resolutions 4K2K@24/25/30/60Hz ESD Protection Human body model —...
