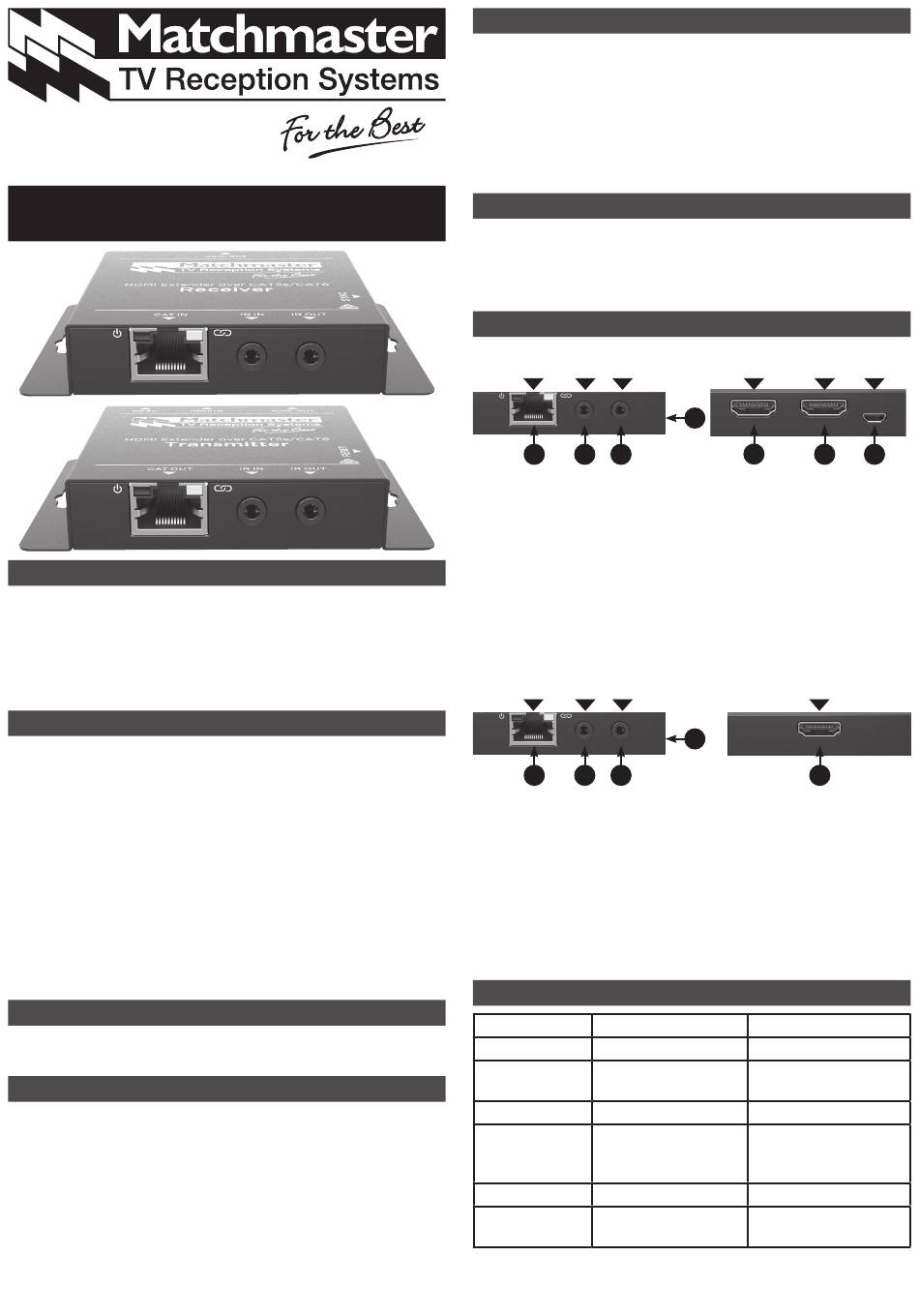

Matchmaster 34MM-2K50 Instruction Manual

34MM-2K50
INSTRUCTION MANUAL

STATEMENT

Thanks for purchasing this product, please read this user
manual carefully before using this product. The functions
described in this version are updated till March 30, 2020.
In the constant effort to improve our product, we reserve
the right to make functions or parameters changes without
notice or obligation.

SAFETY PRECAUTION

• Do not dismantle the housing or modify the module to
avoid electrical shock or burn.
• Using power supplies not meeting the products' specifica-
tions may cause damage, deterioration or malfunction.
• Do not expose the unit to rain, moisture or install this
product near water.
• Install the device in a place with open ventilation.
• Do not twist or pull by force ends of the Cat5e/6 or HDMI
cable. It can cause malfunction.
• Do not use liquid or aerosol cleaners to clean this unit.
• Always unplug the power to the device before cleaning.
• Unplug the power when not used for a long period
of time.
• Refer all servicing to qualified service personnel.

AFTER-SALES SERVICE

We provide limited warranty for the product within
three years.

INTRODUCTION

The 34MM-2K50 extends HDMI signal between Transmitter
and Receiver over CATx cable. It supports 1080p@60Hz
video signals up to 50m including embedded multi-channel
audio and HDCP 1.4. Built-in EDID make this product
compatible with most display and source device, to ensure
HDMI transmission. Advanced power design (PoC) allows
this product to be powered at Transmitter, and only one
power supply is required. In addition, the 34MM-2K50 send/
receive IR signals to each other over the same CATx cable
with IR pass through.
PAGE 1 OF 2 | AU SUPPORT 1800 237 425 WWW.MATCHMASTER.COM.AU

FEATURES

• Supports HDMI 1.3, HDCP 1.4 compliant.
• Supports built-in EDID to ensure HDMI signal transmission
from source to display.
• The transmission of 1080p@60Hz (max) signal is
up to 50m.
• Supports bidirectional IR pass-through.
• Supports PoC, the Receiver can be powered
via Transmitter.

PACKAGE CONTENTS

• 1 x Transmitter
• 1 x Power Adaptor (5V DC 1A)
• 1 x IR Receiver (5V)
• 1 x User Manual

PANEL DESCRIPTION

Transmitter (TX)
CAT OUT IR IN IR OUT
1 2 3
1. CAT OUT: RJ45 connector with Green& Yellow indicators.
Connect to Receiver over CATx cable. The Green
indicator lights up when powered on. The Yellow indicator
lights up when linked successfully between Transmitter
and Receiver.
2. IR IN: Connect with IR Receiver.
3. IR OUT: Connect with IR Emitter.
4. RESET: Reboot.
5. HDMI OUT: HDMI loop output, connect to display.
6. HDMI IN: Connect to HDMI source.
7. DC 5V: Micro USB, connect to the power adaptor.
Receiver (RX)
CAT IN IR IN IR OUT
1 2 3
1. CAT IN: RJ45 connector with Green& Yellow indicators.
Connect to Transmitter over CATx cable.
2. IR IN: Connect with IR Receiver.
3. IR OUT: Connect with IR Emitter.
4. SYNC: After the system is connected, press this button
once for best image output. When the cable, source, or
display is changed, or the output resolution is reset, you
will need to press this button again to ensure the best
image.
5. HDMI OUT: Connect to display.
HDMI OUT: CONNECT TO DISPLAY.
Transmitter
Input (1) HDMI
Input (1) 19-pin type-A
Connector female HDMI
Output (1) HDMI; (1) CAT
Output (1) 19-pin type-A
Connector female HDMI, (1)
RJ45
Control (1) IR IN, (1) IR OUT
Control (2) 3.5mm mini
Connector jacks
| NZ SUPPORT 0800 237 425 WWW.MATCHMASTER.CO.NZ
• 1 x Receiver
• 2 x Velcro Tape
• 1 x IR Emitter (5V)
HDMI OUT HDMI IN DC 5V
4
5 6
HDMI OUT
4
5
Receiver
(1) CAT
(1) RJ45
(1) HDMI
(1) 19-pin type-A
female HDMI
(1) IR IN, (1) IR OUT
(2) 3.5mm mini jacks
7
