Camshaft Bushings
Meritor recommends that you install new camshaft bushings
whenever you install a new camshaft.
Lubricate through the fitting on the bracket or spider until new
grease flows from the inboard seal.
Rollers and Anchor Pins
When you disassemble the brake, or when necessary, lubricate the
anchor pins and rollers where these parts touch the brake shoes.

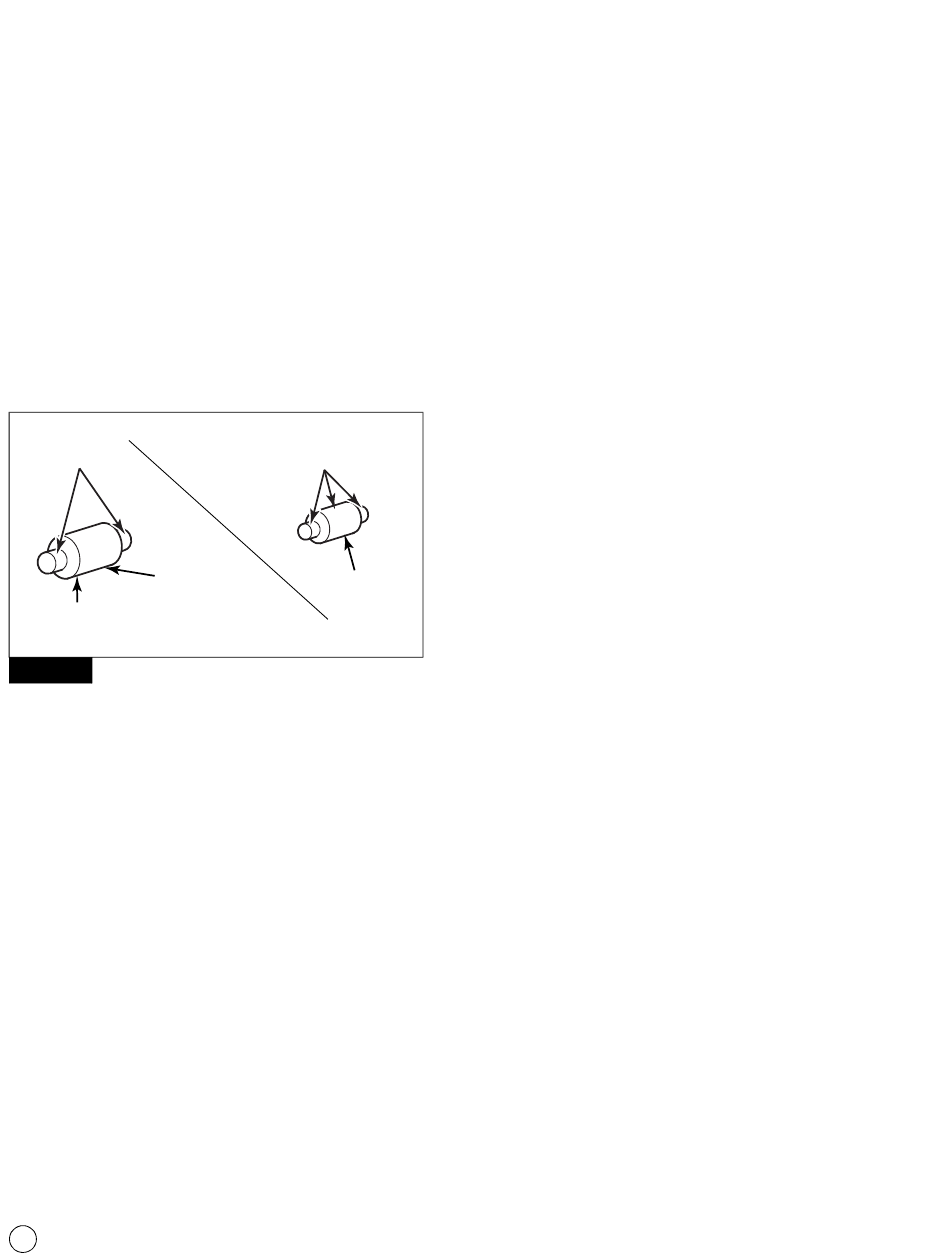

Do not allow grease to contact the area of the roller that touches the
camshaft head. Figure 8.1.
Figure 8.1
Lubricate
here only.
Do not
lubricate here.
BRAKE SHOE
ROLLER
Figure 8.1
18 Meritor Maintenance Manual MM-0440 (Issued 09-04)
Lubricate
entirely.
BRAKE SHOE
ANCHOR PIN
