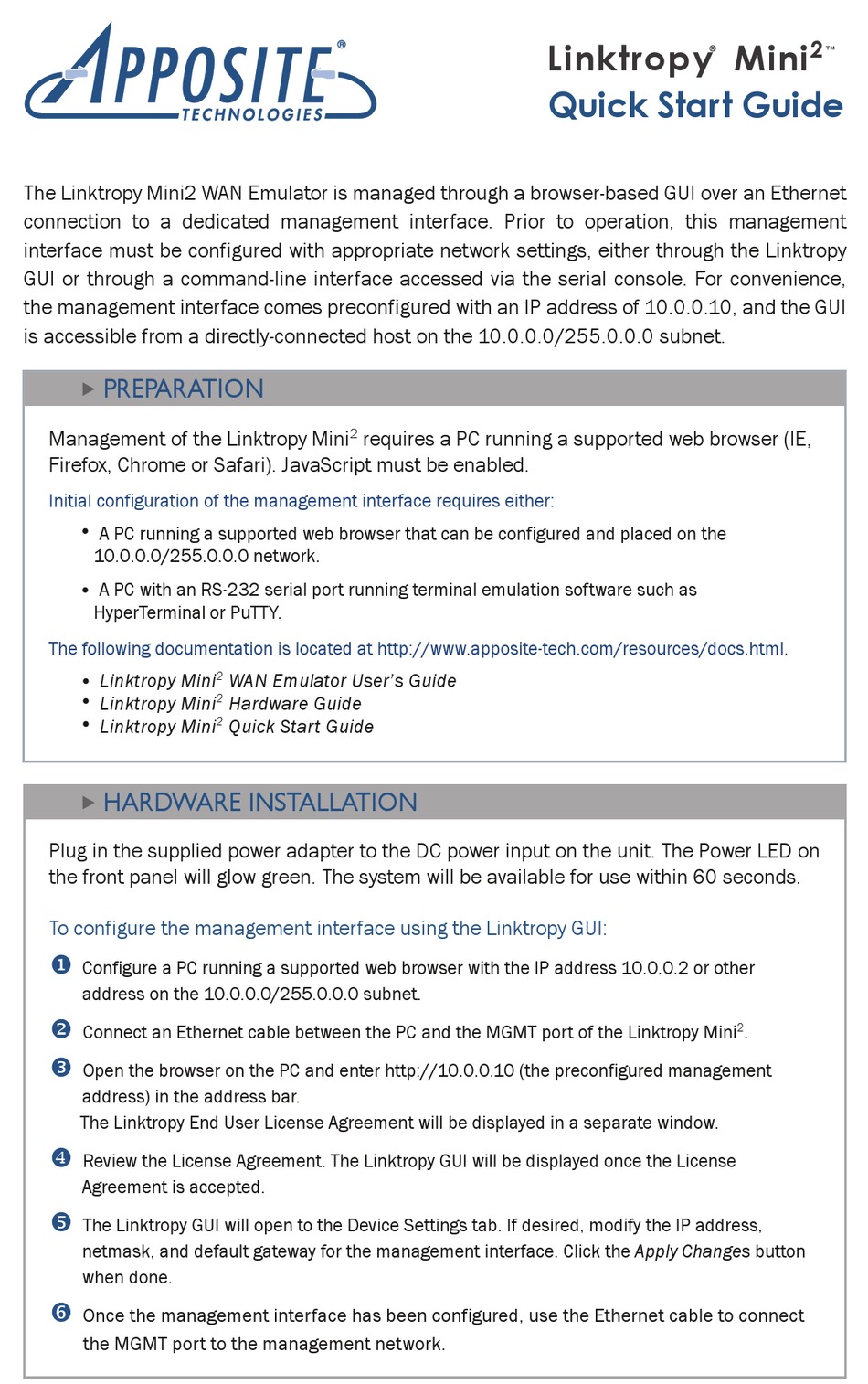

Apposite Linktropy Mini2 Quick Start Manual

The Linktropy Mini2 WAN Emulator is managed through a browser-based GUI over an Ethernet
connection to a dedicated management interface. Prior to operation, this management
interface must be configured with appropriate network settings, either through the Linktropy
GUI or through a command-line interface accessed via the serial console. For convenience,
the management interface comes preconfigured with an IP address of 10.0.0.10, and the GUI
is accessible from a directly-connected host on the 10.0.0.0/255.0.0.0 subnet.

PREPARATION


Management of the Linktropy Mini
Firefox, Chrome or Safari). JavaScript must be enabled.
Initial configuration of the management interface requires either:
A PC running a supported web browser that can be configured and placed on the

10.0.0.0/255.0.0.0 network.
A PC with an RS-232 serial port running terminal emulation software such as

HyperTerminal or PuTTY.
The following documentation is located at http://www.apposite-tech.com/resources/docs.html.
Linktropy Mini

Linktropy Mini

Linktropy Mini


HARDWARE INSTALLATION


Plug in the supplied power adapter to the DC power input on the unit. The Power LED on
the front panel will glow green. The system will be available for use within 60 seconds.
To configure the management interface using the Linktropy GUI:

Configure a PC running a supported web browser with the IP address 10.0.0.2 or other
address on the 10.0.0.0/255.0.0.0 subnet.

Connect an Ethernet cable between the PC and the MGMT port of the Linktropy Mini

Open the browser on the PC and enter http://10.0.0.10 (the preconfigured management
address) in the address bar.
The Linktropy End User License Agreement will be displayed in a separate window.

Review the License Agreement. The Linktropy GUI will be displayed once the License
Agreement is accepted.

The Linktropy GUI will open to the Device Settings tab. If desired, modify the IP address,
netmask, and default gateway for the management interface. Click the Apply Changes button
when done.

Once the management interface has been configured, use the Ethernet cable to connect
the MGMT port to the management network.
2 requires a PC running a supported web browser (IE,
2
WAN Emulator User's Guide
2
Hardware Guide
2
Quick Start Guide
Linktropy Mini
Quick Start Guide
2
™
2
.
