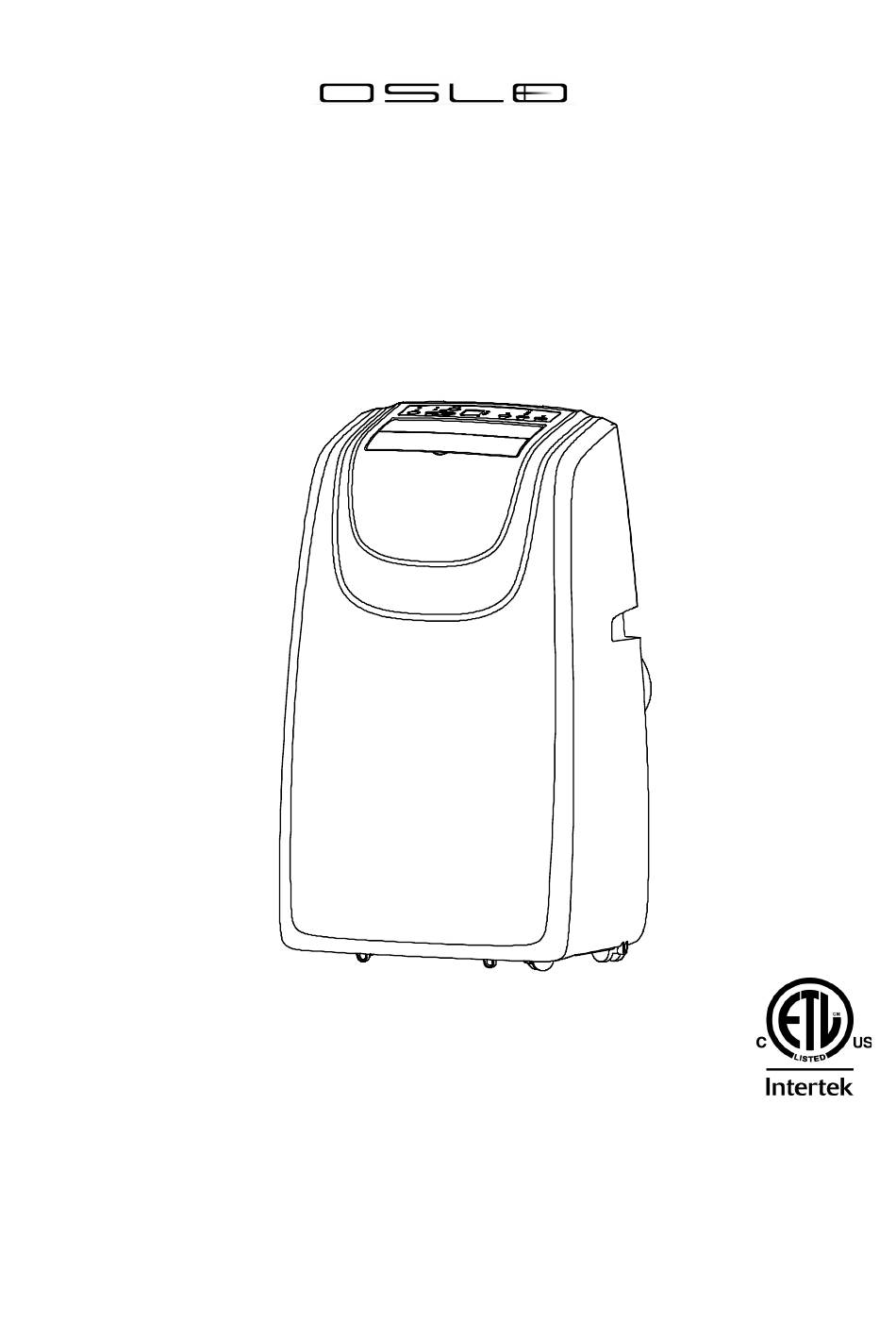

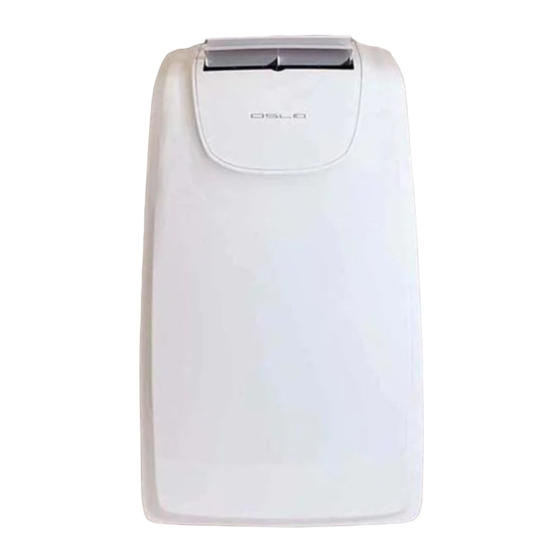

Portable Air-conditioner
OSP1-08
Use and Care Manual
4010450
Thank you very much for selecting this new model of Portable Air Conditioner, please read this Use and Care
Manual carefully before installing and using this appliance. Please keep this Use and Care Manual properly for
future reference.
210204
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Oslo OSP1-08
Summary of Contents for Oslo OSP1-08
- Page 1 Portable Air-conditioner OSP1-08 Use and Care Manual 4010450 Thank you very much for selecting this new model of Portable Air Conditioner, please read this Use and Care Manual carefully before installing and using this appliance. Please keep this Use and Care Manual properly for future reference.
-
Page 2: Table Of Contents
Contents Safety Instructions............................2 Function and Technical Specification........................3 Features and Identification of Parts...........................4 Operation and Settings.............................5 Protection................................7 Handling and Transportation...........................8 Installation and Adjustment............................9 Drainage Instruction..............................11 Maintenance and Service............................13 End of Season Storage............................14 Troubleshooting..............................15 Warranty................................16... -
Page 3: Safety Instructions
Safety Instructions 1. All wiring must comply with local and national electrical codes and be installed by a qualified electrician. If you have any questions regarding to the following instructions, please contact a qualified electrician. 2. The unit must be installed in accordance with national wiring regulations. Check available power supply and resolve any wiring problems before installation and operation of this unit. -
Page 4: Function And Technical Specification
supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. Cautions ※ Please make sure that the unit is placed on a flat, dry place. Keep the unit between the wall around has more than 0.5meters. - Page 5 2. Identification of Parts 1. Control panel 10. Drain hole and cover 2. Horizontal louver 11. Up filter assemble 3. Front shell 12. Down filter assembly 4. Universal wheel 13. Chassis 5. Back shell 14. Remote control 6. Handle 15. Exhaust hose assembly 7.
-
Page 6: Operation And Settings
Operation and Settings Control panel instructions BUTTONS TIMER BUTTON Program the time from 1 hour to 24 hours for the unit to turn ON or OFF. When a TIME DELAY is programmed, the Timer indicator light will illuminate. While the unit is operating: Press the TIMER button. - Page 7 The temperature can be set between 17 ℃ and 30 ℃ when the air conditioner is in COOL mode. Press the MODE button until the COOL mode is selected. Press the UP ARROW or DOWN ARROW buttons to select the temperature. Note: The temperature cannot be set when the air conditioner is in wither FAN or DRY mode.
- Page 8 and quiet. 8. Child lock button: press this button to lock all buttons, lock indicator light is on. When you turn on the lock button, other buttons cannot be used. 9. Swing: press this button to open or close auto swing function. 2) Battery installation: Before using your remote, install the AAA batteries into remote control.
-
Page 9: Protection
Protection functions 1. Water-full protect: Use Water switch to achieve water-full protect, water switch is always off, it will be on when it works. both water-full indicator and “FL” on LED window is flashing. 2. Anti-freeze protection function Compressor, water spraying motor will turn off when compressors running over 10 minutes and tube temperatur e (Tp) is continuously ≦... -
Page 10: Installation And Adjustment
Installation & Adjustment 1. Installation Warning: Keep this mobile air-conditioner in upright position at least 2 hours before first installation. This air-conditioner may be moved indoors conveniently; keep the unit in upright position while moving it. The air-conditioner shall be placed on flat and hard surface. Do not install or operate this air-conditioner in bathroom or other wet environments. - Page 11 1.3 Installation of the unit Move the unit together with its exhaust hose assembly in front of the window and keep the unit at least 50cm away from the walls or other objects. Install the rectangle end of exhaust hose adapter into the corresponding rectangle hole in window seal-plate assembly, fix it with screw and close the window.
-
Page 12: Drainage Instruction
Drainage Instruction This portable air conditioner has two drain ports, higher one and lower one and we can use two drainage methods: manual drainage and continuous drainage; 1. Manual Drain： （As Photo 14） This unit is designed with high efficient self-evaporative system and It is suggested to use manual drainage in cooling mode, all condensate will recycle in the unit to ensure enough water to recycle in the unit to cool condenser and enhance cooling performance advance;... - Page 13 Drain hose Water outlet Drain cover higher drain port is the best. Continuous drain in dehumidification mode: Screw off the drain cover and unplug the water stopper. Connect drain-hole with φ13mm PVC drain hose, into depth of 8mm-10mm. Pull the drain hose to bathroom or outdoor. Notes：...
-
Page 14: Maintenance And Service
Maintenance and Service Turn off the unit and pull out the plug before maintenance or send the unit to service center. 1. Surface cleaning Clean the unit surface with wet and soft cloth, but do not use chemical solvents such as alcohol and gasoline to avoid any damage to unit. -
Page 15: End Of Season Storage
Remote control storage area 2) Clean the handle position and remote control storage area with wet and soft cloth. Note：Do not drip water into the unit. End of Season Storage 1. Screw off the drain cover, and then pull out the stopper to drain water completely. Note：The tilt angle of the unit must be≦30 、... -
Page 16: Troubleshooting
Troubleshooting Please check the unit and suggestions below before asking for professional service, but never dismantle or repair the unit by yourself, it may cause harm to you and your property. Trouble Cause Remedy Connect the unit to a live socket and Power supply failure turn it on. -
Page 17: Warranty
One Year Limited Warranty NEPO USA warrants the accompanying Air Conditioner to be free of defects in material and workmanship for the applications specified in its operation instruction for a period of One (1) year from the date of original retail purchase in the United States. If the unit exhibits a defect in normal use, NEPO USA will, at its option, either repair or replace it, free of charge within a reasonable time after the unit is returned during the warranty period.
