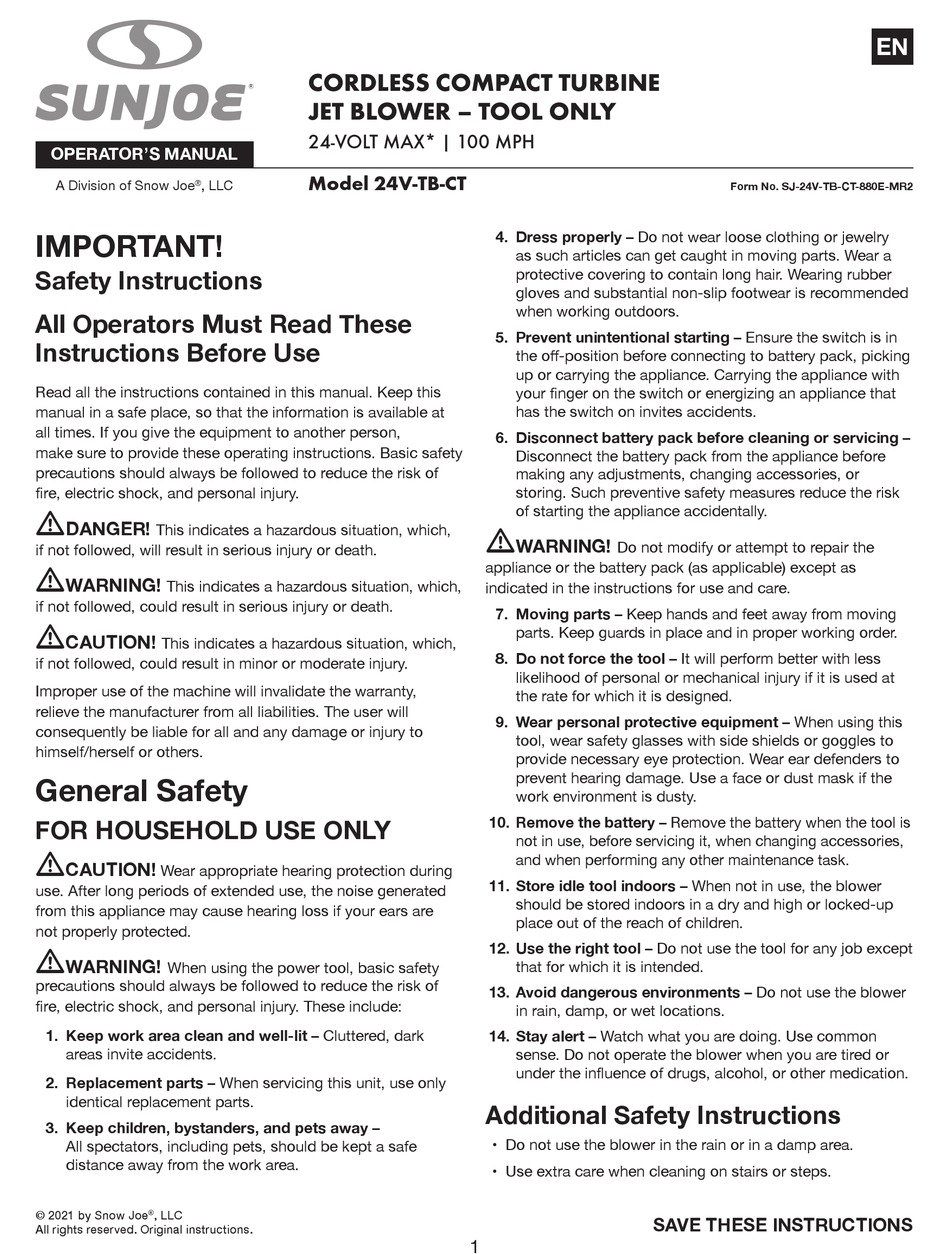

OPERATOR'S MANUAL
A Division of Snow Joe
, LLC
®
IMPORTANT!
Safety Instructions
All Operators Must Read These
Instructions Before Use
Read all the instructions contained in this manual. Keep this
manual in a safe place, so that the information is available at
all times. If you give the equipment to another person,
make sure to provide these operating instructions. Basic safety
precautions should always be followed to reduce the risk of
fire, electric shock, and personal injury.
m
DANGER!
This indicates a hazardous situation, which,
if not followed, will result in serious injury or death.
m
WARNING!
This indicates a hazardous situation, which,
if not followed, could result in serious injury or death.
m
CAUTION!
This indicates a hazardous situation, which,
if not followed, could result in minor or moderate injury.
Improper use of the machine will invalidate the warranty,
relieve the manufacturer from all liabilities. The user will
consequently be liable for all and any damage or injury to
himself/herself or others.
General Safety
FOR HOUSEHOLD USE ONLY
m
CAUTION!
Wear appropriate hearing protection during
use. After long periods of extended use, the noise generated
from this appliance may cause hearing loss if your ears are
not properly protected.
m
WARNING!
When using the power tool, basic safety
precautions should always be followed to reduce the risk of
fire, electric shock, and personal injury. These include:
1. Keep work area clean and well-lit – Cluttered, dark
areas invite accidents.
2. Replacement parts – When servicing this unit, use only
identical replacement parts.
3. Keep children, bystanders, and pets away –
All spectators, including pets, should be kept a safe
distance away from the work area.
© 2021 by Snow Joe
, LLC
®
All rights reserved. Original instructions.
CORDLESS COMPACT TURBINE
R
JET BLOWER – TOOL ONLY
24-VOLT MAX* | 100 MPH
Model 24V-TB-CT
4. Dress properly – Do not wear loose clothing or jewelry
as such articles can get caught in moving parts. Wear a
protective covering to contain long hair. Wearing rubber
gloves and substantial non-slip footwear is recommended
when working outdoors.
5. Prevent unintentional starting – Ensure the switch is in
the off-position before connecting to battery pack, picking
up or carrying the appliance. Carrying the appliance with
your finger on the switch or energizing an appliance that
has the switch on invites accidents.
6. Disconnect battery pack before cleaning or servicing –
Disconnect the battery pack from the appliance before
making any adjustments, changing accessories, or
storing. Such preventive safety measures reduce the risk
of starting the appliance accidentally.
m
WARNING!
Do not modify or attempt to repair the
appliance or the battery pack (as applicable) except as
indicated in the instructions for use and care.
7. Moving parts – Keep hands and feet away from moving
parts. Keep guards in place and in proper working order.
8. Do not force the tool – It will perform better with less
likelihood of personal or mechanical injury if it is used at
the rate for which it is designed.
9. Wear personal protective equipment – When using this
tool, wear safety glasses with side shields or goggles to
provide necessary eye protection. Wear ear defenders to
prevent hearing damage. Use a face or dust mask if the
work environment is dusty.
10. Remove the battery – Remove the battery when the tool is
not in use, before servicing it, when changing accessories,
and when performing any other maintenance task.
11. Store idle tool indoors – When not in use, the blower
should be stored indoors in a dry and high or locked-up
place out of the reach of children.
12. Use the right tool – Do not use the tool for any job except
that for which it is intended.
13. Avoid dangerous environments – Do not use the blower
in rain, damp, or wet locations.
14. Stay alert – Watch what you are doing. Use common
sense. Do not operate the blower when you are tired or
under the influence of drugs, alcohol, or other medication.
Additional Safety Instructions
• Do not use the blower in the rain or in a damp area.
• Use extra care when cleaning on stairs or steps.
1
Form No. SJ-24V-TB-CT-880E-MR2
SAVE THESE INSTRUCTIONS
EN
