sunjoe iONBV Operator's Manual

sunjoe iONBV Operator's Manual

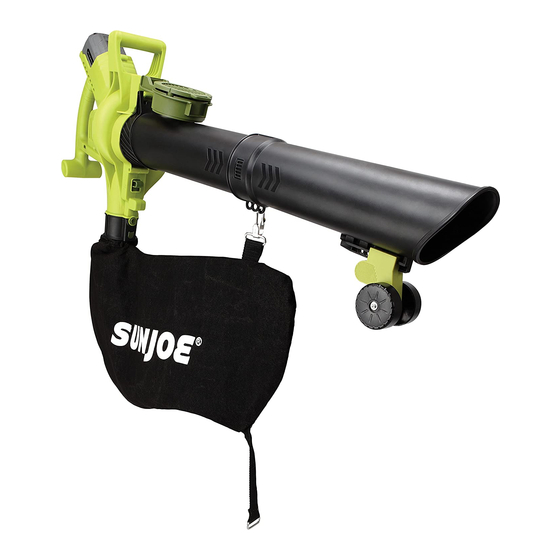

40-volt 200 mph 3-in-1 cordless blower/vacuum/mulcher

Advertisement

A Division of Snow Joe
, LLC
®
IMPORTANT!
Safety Instructions
All Operators Must Read These
Instructions Before Use
Any electrical appliance can be dangerous if used incorrectly.
Some of the safety precautions given in this manual apply
generally to many appliances. Other warnings are specific to
the use of this cordless blower.
Always follow these safety guidelines. Failure to do so may
result in serious bodily injury or death.
m
DANGER!
This indicates a hazardous situation, which,
if not followed, will result in serious injury or death.
m
WARNING!
This indicates a hazardous situation, which,
if not avoided, could result in serious injury or death.
m
CAUTION!
This indicates a hazardous situation, which,
if not avoided, could result in minor or moderate injury.
General Safety
FOR HOUSEHOLD USE ONLY
Before using, be sure that everyone using this tool reads
and understands all safety instructions and other information
contained in this manual. Save this manual and review it
frequently prior to using this tool and when instructing
others on the proper operating procedures.
m
CAUTION!
Wear appropriate hearing protection during
use. After long periods of extended use, the noise generated
from this appliance may cause hearing loss if your ears are
not properly protected.
m
WARNING!
When using cordless yard tools, basic
safety precautions should always be followed to reduce the
risk of fire, electric shock and personal injury, including the
following:
1. Keep work area clean and well-lit – Cluttered, dark
areas invite accidents.
2. Replacement parts – When servicing this unit, use only
identical replacement parts. Replace or repair damaged
cords immediately.
3. Keep children, bystanders, and pets away – All
spectators, including pets, should be kept a safe distance
away from the work area.
© 2016 by Snow Joe
, LLC
®
All rights reserved. Original instructions.
40-VOLT 200 MPH 3-IN-1 CORDLESS
BLOWER/VACUUM/MULCHER
Model iONBV
4. Dress properly – Do not wear loose clothing or jewelry
as such articles can get caught in moving parts. Wear a
protective covering to contain long hair. Wearing rubber
gloves and substantial non-slip footwear is recommended
when working outdoors.
5. Avoid accidental starting – Do not carry the blower with
your finger on the switch.
m
DANGER!
Do not manually place objects into the
vacuum tube while operating the unit as this can seriously
damage the unit and/or harm the operator. Keep both hands
on the handles while the power is on.
DO NOT ATTEMPT to remove material or hold material to be
vacuumed when the blower vac is on. Make sure the blower
vac is off when clearing jammed material from the vacuum
tube. Do not pick up the blower vac by the tube or attempt to
carry the unit by the tube.
m
CAUTION!
Moving parts will continue to run for several
seconds after turning off the machine.
6. Moving parts – Keep hands and feet away from moving
parts. Keep guards in place and in proper working order.
7. Do not force the tool – It will perform better with less
likelihood of personal or mechanical injury if it is used at
the rate for which it is designed.
8. Wear personal protective equipment – When using this
tool, wear safety glasses with side shields or goggles to
provide necessary eye protection. Wear ear defenders to
prevent hearing damage. Use a face or dust mask if the
work environment is dusty.
9. Disconnect the tool – Turn off the power switch and
remove the battery when it is not in use, before servicing,
when transporting or when changing the tube or other
accessories.
10. Store idle tool indoors – When not in use, the blower
should be stored indoors in a dry and high or locked-up
place out of the reach of children.
11. Maintain the blower with care – Keep the blower tube
and the fan area clear and clean for optimal performance
and to reduce the risk of injury. Keep the handles dry,
clean, and free from oil and grease. Follow the additional
recommendations described in the maintenance section
of this manual.
12. Use the right tool – Do not use the tool for any job except
that for which it is intended.
13. Avoid dangerous environments – Do not use the blower
vac in rain, damp, or wet locations. Do not operate the
blower vac in gaseous or explosive atmospheres or use
the blower vac to pick up flammable or combustible
SAVE THESE INSTRUCTIONS
Form No. SJ-iONBV-880E-M
OPERATOR'S MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the iONBV and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for sunjoe iONBV

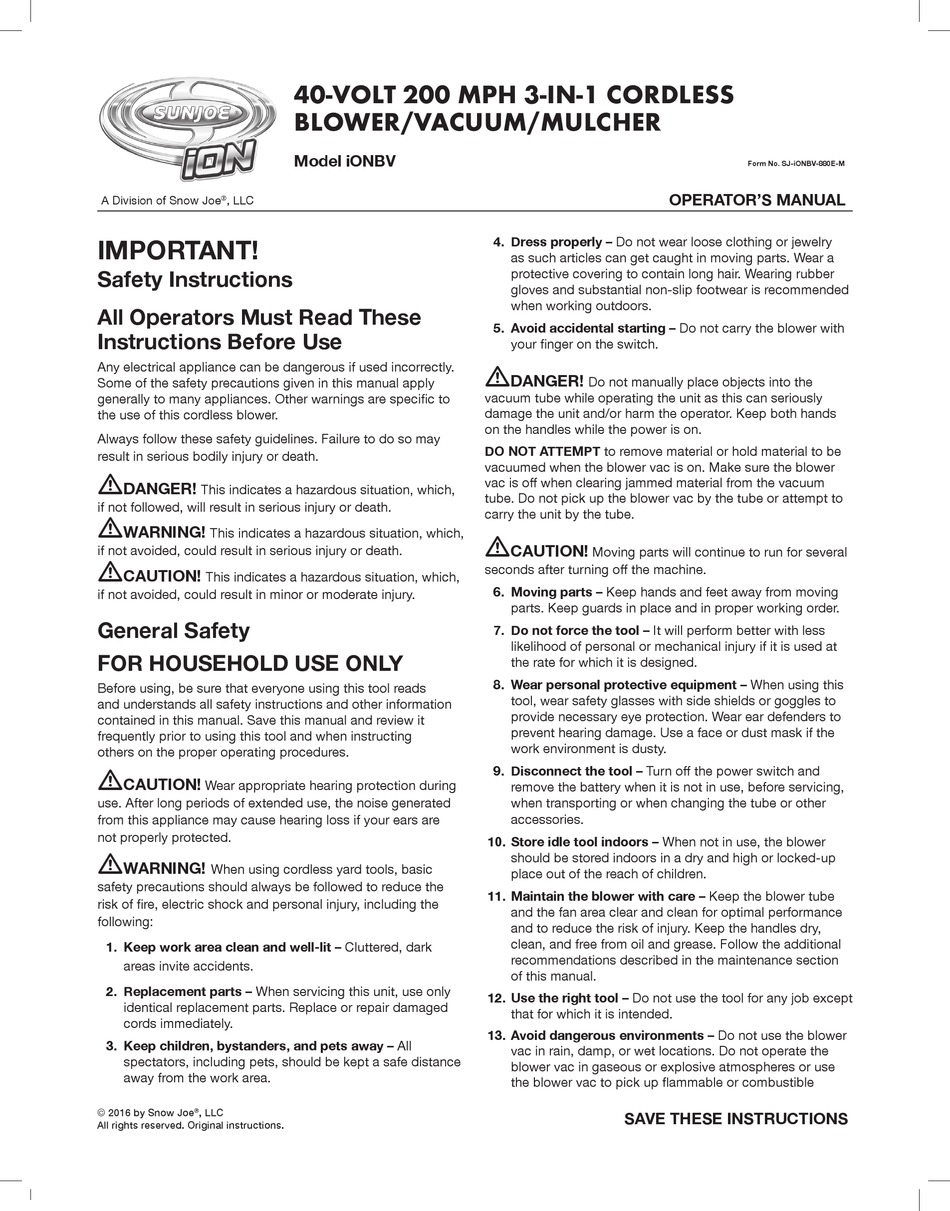

  • Page 1 40-VOLT 200 MPH 3-IN-1 CORDLESS BLOWER/VACUUM/MULCHER Model iONBV Form No. SJ-iONBV-880E-M OPERATOR’S MANUAL A Division of Snow Joe , LLC ® IMPORTANT! 4. Dress properly – Do not wear loose clothing or jewelry as such articles can get caught in moving parts. Wear a Safety Instructions protective covering to contain long hair.
  • Page 2: Additional Safety Instructions

    liquids. Motors in these tools normally spark, and the • Never run the unit without the proper equipment attached. sparks might ignite fumes. Always ensure the blower tubes are properly installed. 14. Stay alert – Watch what you are doing. Use common Specific Safety Rules sense.
  • Page 3: Protection From Environmental Influences

    • Charge in a well-ventilated area – Do not block the rubber or neoprene gloves to safely dispose of it. If skin charger vents. Keep them clear to allow for proper is exposed to battery fluids, wash the affected area with ventilation.
  • Page 4 Information about the battery Information about the charger and the charging process 1. The battery pack supplied with your cordless blower vac is only partially charged. The battery pack has to be charged 1. Please check the data marked on the rating plate of the completely before you use the tool for the first time.
  • Page 5: Safety Symbols

    Safety Symbols The following table depicts and describes safety symbols that may appear on this product. Read, understand and follow all instructions on the machine before attempting to assemble and operate. Symbols Descriptions Symbols Descriptions READ THE OPERATOR'S MANUAL(S) – Read, understand, and follow Keep bystanders and children all instructions in the user...
  • Page 6: Technical Data

    Know Your Cordless Blower Vac Read the owner’s manual and safety instructions carefully before operating the cordless blower vac. Compare the illustration below to the cordless blower vac in order to familiarize yourself with the location of the various controls and adjustments. Save this manual for future reference.
  • Page 7: Carton Contents

    Unpacking Attaching the Blower Tube 1. Before using the blower function, securely fasten the inlet Carton Contents cover over the air inlet until the lock button snaps into the locked position (Fig. 1). • Cordless blower vac • Blower tube Fig.
  • Page 8 Assemble as a Vacuum/Mulcher 4. Insert the collection bag adaptor into the blower air outlet until the collection bag is securely fastened (Fig. 7), then 1. Slide the front and rear vacuum/mulcher tubes together clip the bag to the strap holder. until the lock button engages (Fig.
  • Page 9: Battery Pack Operation

    7. To remove the vacuum/mulcher tube assembly, slide the Immediately after using the battery pack, the charge level inlet cover lock button to unlock, then remove the tube button may display a lower charge than it will if checked a few assembly from its housing (Fig.
  • Page 10: Charging A Hot Or Cold Battery Pack

    2. Check that the mains voltage is the same as that marked NOTE: If the top light remains green while the bottom light on the rating plate of the battery charger. Then, insert the alternately flashes red and green, this indicates a temperature charger's plug into the electrical wall outlet.
  • Page 11: Speed Control

    Operating Tips Lithium-Ion Charging Status Battery Pack Red Charger Charging WARNING! Use the blower vac only in daylight or good Temperature Indicator Light Status artificial light. Too hot Flashing Not charging • When using the blower vac, plant your feet firmly on the ground and place one hand on the main handle and the Normal range Continuous...
  • Page 12: Air Vents

    Air Vents Fig. 18 Never cover air vents. Keep them free from obstructions and debris. They must always remain clear for proper motor cooling. WARNING! To avoid serious personal injury, tie back long hair and do not wear loose fitting clothing or dangling articles such as scarves, strings, chains, ties, etc.
  • Page 13: Maintenance

    To order genuine replacement parts or accessories for the the terminals to prevent the battery pack from shorting, which Sun Joe iONBV 3-in-1 blower vac, please visit snowjoe.com ® could cause a fire or explosion. or contact the Snow Joe...
  • Page 14: Federal Communications Commission (Fcc)

    iCHRG40 Federal Communications Commission (FCC) WARNING! Any changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Class B device: NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
  • Page 15: Optional Accessories

    (Fits most Snow Joe ® Universal wall bracket with Sun Joe tools, including ® mounting hardware blower vac models SBJ601E + SBJ603E + SBJ605E + iONBV) EcoSharp 40 V 4.0 Ah ® iBAT40 Lithium-Ion Battery EcoSharp PRO 40 V 5.0 Ah ®...
  • Page 16 NOTES...
  • Page 17 NOTES...
  • Page 18 NOTES...
  • Page 19 SNOW JOE + SUN JOE CUSTOMER PROMISE ® ® ABOVE ALL ELSE, Snow Joe + Sun Joe are dedicated to you, our customer. We strive to make your experience as pleasant ® ® as possible. Unfortunately, there are times when a product does not work or breaks under normal operating conditions. We think it’s important that you know what you can expect from us.
  • Page 20 snowjoe.com...
