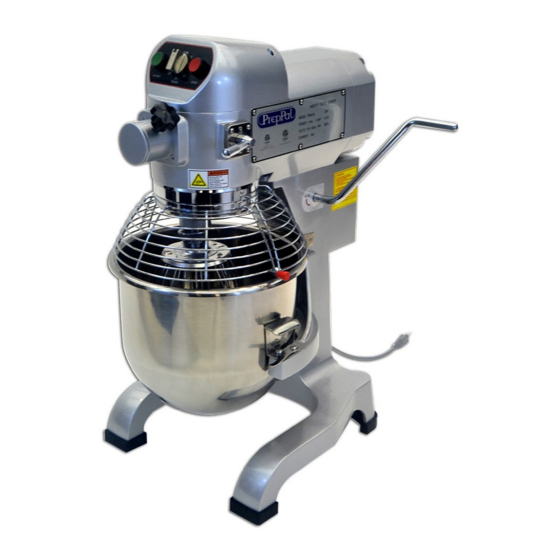

PrepPal PPM-10 Owner's/Operator's Manual

Planetary bench mixer, 10/20/30 qt
Hide thumbs

Advertisement

Table of Contents

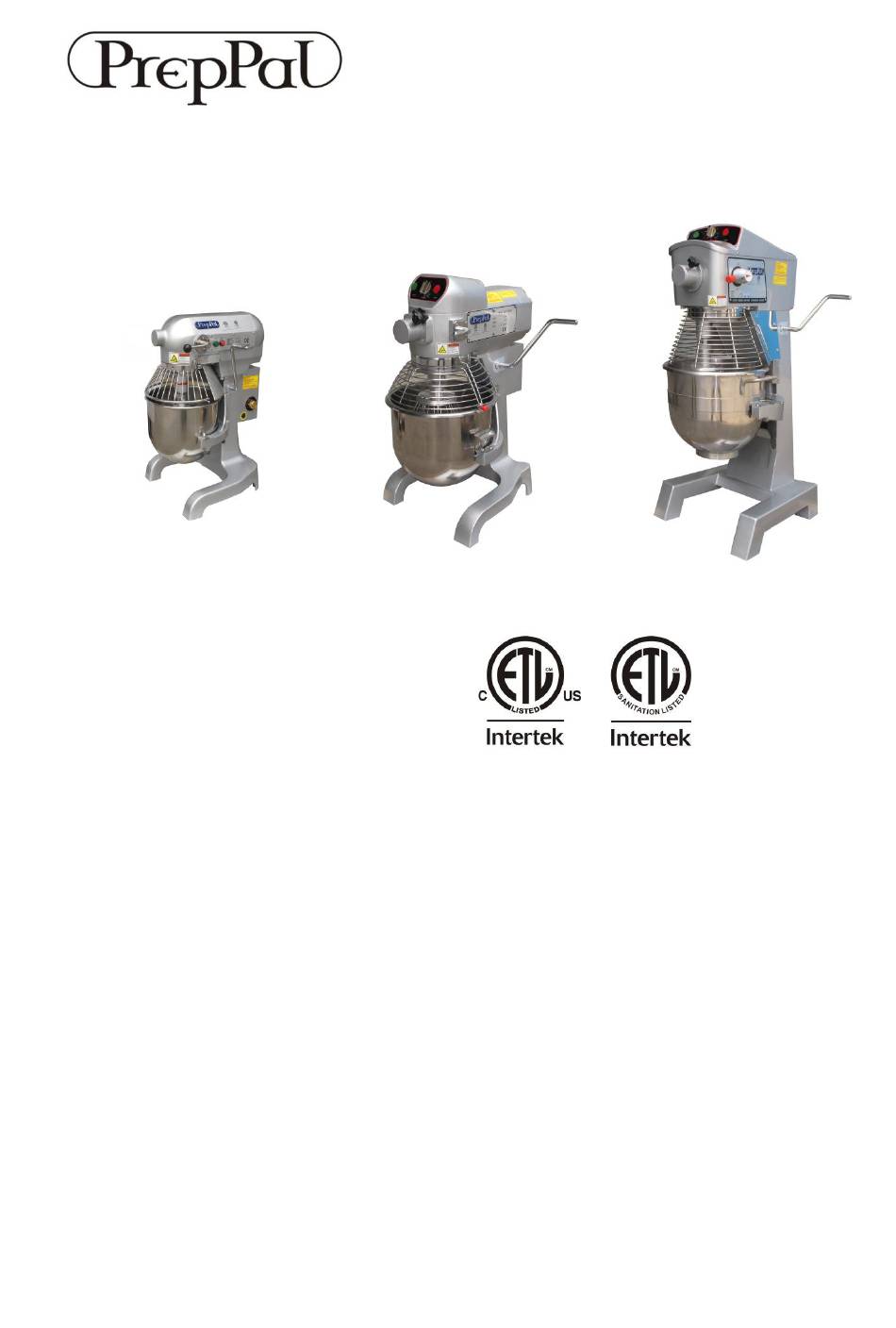

Models
PPM-10 , Planetary Bench Mixer, 10 Qt
PPM-20 , Planetary Floor Mixer, 20 Qt
PPM-30 , Planetary Floor Mixer, 30 Qt
Toll Free :
1-800-683-8660（USA）
Email:warranty@atosausa.com
OWNER /OPERATOR
MANUAL
IMPORTANT NOTICE
This manual contains Important Safety
Instructions which must be strictly
followed when using this equipment.
855-885-6518(Canada)
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PPM-10 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for PrepPal PPM-10

Summary of Contents for PrepPal PPM-10

  • Page 1 OWNER /OPERATOR MANUAL Models PPM-10 , Planetary Bench Mixer, 10 Qt PPM-20 , Planetary Floor Mixer, 20 Qt PPM-30 , Planetary Floor Mixer, 30 Qt IMPORTANT NOTICE This manual contains Important Safety Instructions which must be strictly followed when using this equipment.
  • Page 2  Do not use an extension cord with this equipment. Do not plug this equipment into a power strip or multi-outlet power cord.  Non-PrepPal attachments are not recommended. They will not work properly and will void the warranty.  Check equipment before each use to insure the equipment is clean.

  • Page 3: Product Description

    Product Description...

  • Page 4: Installation

    Installation Unpacking and Initial Setup: Carefully remove carton, crating or package material from equipment. Mixers on pallets are bolted on the pallet, insert wrench under pallet to loose belt. When no longer need, dispose of all packing material in an environmentally responsible manner.
  • Page 5 Attaching the Agitator to the Mixer Shaft(Beater, Hook, Whip) 1. Rotate the bowl guard to the left so it rests in the open position. Excessive force used to open and close the bowl guard may damage the spring lock and bowl guard micro switch, and will void the warranty.
  • Page 6 Setting Timer Set the timer for the appropriate mixing time or set the mixer for non-timed operation. a. Timed Operation: Turn the timer knob in a clockwise direction at the position between “5” to “30”, to get mixing time between 5 mins to 30mins. b.

  • Page 7: Cleaning And Maintenance Instructions

    Cleaning & Maintenance Instructions ALWAYS disconnect or unplug the electrical power from the mixer before cleaning. The entire mixer, including removable parts, must be thoroughly cleaned and sanitized using the procedures identified by your local health department and the ServSafe Essentials published by the National Restaurant Association Educational Foundation (NRAEF).

  • Page 8: Mixing Capacity Chart

    Mixing Capacity Chart PPM-10 PPM-20 PPM-30 PPM-40 PPM-60 10Quart 20Quart 30Quart 40Quart 60Quart Product Agitator Speed Bread and Roll speed Dough Hook 5 lbs. 25 lbs. 45 lbs. 50 lbs. 90 lbs. Dough-60% AR only Heavy Bread speed Dough Hook 3 lbs.

  • Page 9: Troubleshooting

    Troubleshooting Problem Possible Causes Action Required bowl guard not in closed rotate guard to the right until fully closed. position. Mixer will not run. bowl not raised. raise bowl to highest position. Timer is not engaged. Turn timer to desired time or set time to the “on” position.

  • Page 10: Service Parts

    Service Parts Exploded View of PPM-30...
  • Page 11 Parts list of PPM-30 Ref. No. on Part Number Description exploded view PPM3001 Top cover(with six screws) PPM0001 Start button(Green) for 20/30 PPM0002 Timer knob for 10/20/30 PPM0003 Stop button(Red) for 20/30 PPM0004 Hub fasten screw for 20/30 PPM0005 Attachment hub cover for 20/30 PPM3002 Speed handle assy 1set...
  • Page 12 Exploded View of PPM-20...
  • Page 13 Parts list of PPM-20 Ref. No. on exploded Part No Description view PPM2001 Top cover(with screws) PPM0001 Start button(Green) for 20/30 PPM0002 Timer knob for 10/20/30 PPM0003 Stop button(Red) for 20/30 PPM0004 Hub fasten screw for 20/30 PPM0005 Attachment hub cover for 20/30 PPM2002 Distance switch PPM2003...
  • Page 14 Exploded View of PPM-10...
  • Page 15 Parts list of PPM-10 Ref. No. on Part No Description exploded view PPM1001 Gear box PPM1002 Distance switch PPM1003 Back shield PPM1004 Safety guard PPM1005 Beater PPM1006 Hook PPM1007 Wire Whip PPM1008 Back cover PPM1009 110V/60HZ Motor(with tool) PPM1010 Speed handle assy...
