Shenzhen KYL Communication Equipment Co., Ltd

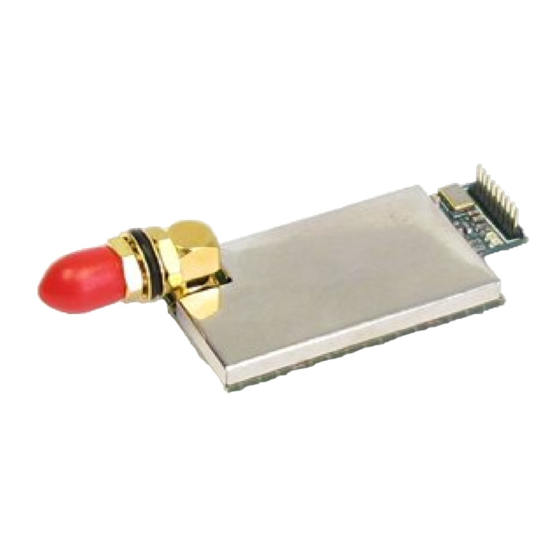

KYL-500L
Special RF module for Wireless POS
Terminal
Shenzhen KYL Communication Equipment Co., Ltd
Address: C3705-3707, Huangdu Square, South of Exhibition Center, Yitian Road,
Futian District, Shenzhen, Guangdong, China 518048
Tel: 86-755-82943662
Fax: 86-755-83408785
Skype：KYL-Sunny
Yahoo messenger: KYL_Sunny@yahoo.com
MSN: KYL-Sunny@hotmail.com
Email:
sales02@rf-data.com
Website: http://www.rf-data.com
1
Fax: +86-755-83408785
sales02@rf-data.com
www.rf-data.com
Advertisement
Related Manuals for KYL KYL-500L
Summary of Contents for KYL KYL-500L

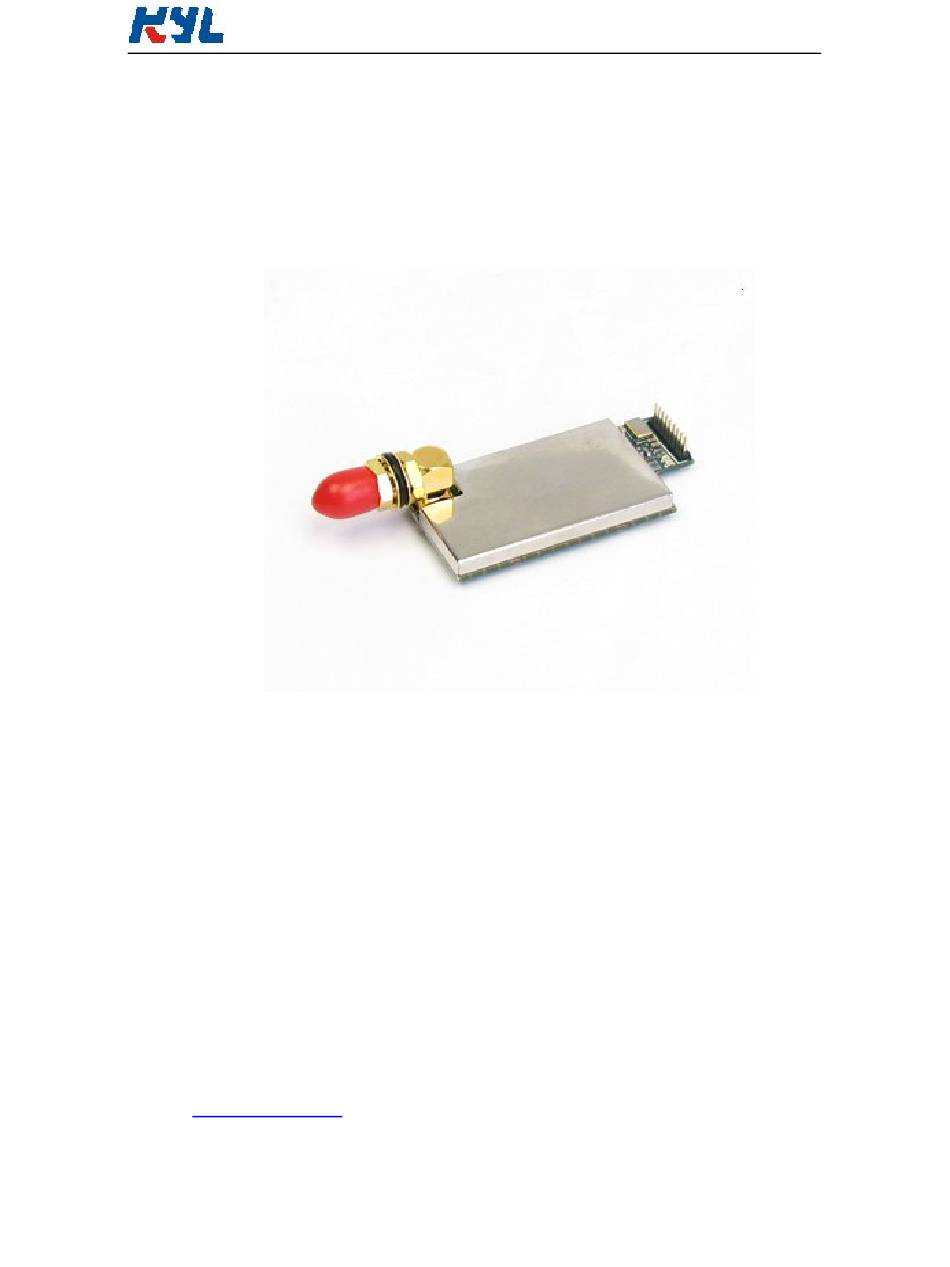

- Page 1 Shenzhen KYL Communication Equipment Co., Ltd KYL-500L Special RF module for Wireless POS Terminal Shenzhen KYL Communication Equipment Co., Ltd Address: C3705-3707, Huangdu Square, South of Exhibition Center, Yitian Road, Futian District, Shenzhen, Guangdong, China 518048 Tel: 86-755-82943662 Fax: 86-755-83408785 Skype：KYL-Sunny...
- Page 2 Any questions, please contact us at the above mentioned ways. I: About KYL-500L KYL-500L, the micro power wireless transceiver data module, is designed for order-dish system. With small size, low power consumption as well as good stability and reliability, it is also widely used for other embedded systems like AMR.
- Page 3 * Point to multi-point wireless network, wireless on-the-spot bus and automatic data collection system; IV. How to Use KYL-500L KYL-500L can provide RS-232, RS-485 and TTL level interface port for direct connection with PC, RS485 devices, monolithic processors. The schematic diagram is shown below: Power supply The factory setting is DC 3.6V.
- Page 4 2. Connection Definition with terminal KYL-500L transceivers provide one 9-pin connector (JP1), their definitions and connection methods with terminals are shown in Table 1. Table 1: JP1 Pin Definitions and connection methods Pin No.
- Page 5 Shenzhen KYL Communication Equipment Co., Ltd 4. Setting of channel, interface, and data format Before using KYL-500L, the user needs to make simple configuration according your own needs to determine the channel, interface mode and data format. You can view or change the module's interface baud rate, channel and address code.
- Page 6 From sleep mode to working, it takes the transceiver 1ms after rising edge. To disable the opened sleep function of KYL-500L, the SLP (SLEEP) pin should be definitely connected with 0 or ground.
- Page 7 The delay time of transceivers between the first bit sent by TxD to the first bit received by RxD. As data processing happens on user’s data by KYL-500L transceiver using FEC (Forward Error Correction) or other correction algorithm, when RxD of KYL-500L transceiver ‘A’...
- Page 8 KYL-500L modules. d. Large-number data transmission In theory, when the interface data rate is faster than the RF data rate, KYL-500L transceivers can sent unlimited-long data package, but any long packages more than 120B are not recommended. The length of each package should be between 60~100B.
- Page 9 V. Network Application of KYL-500L The communication channel of KYL-500L is half duplex, which is most suitable for the communication mode of point to multi-point. Under this mode, one master station must be set, and all of the rest are slave stations. A unique address is given to each station.
- Page 10 KYL-500L can also be used for point-to-point communication with easier operation. For the programming of serial port, all you have to do is to remember that its communication mode is semi duplex while always observing the time sequence of come-and-go for receiving and transmitting.
