Shenzhen KYL Communication Equipment Co., Ltd

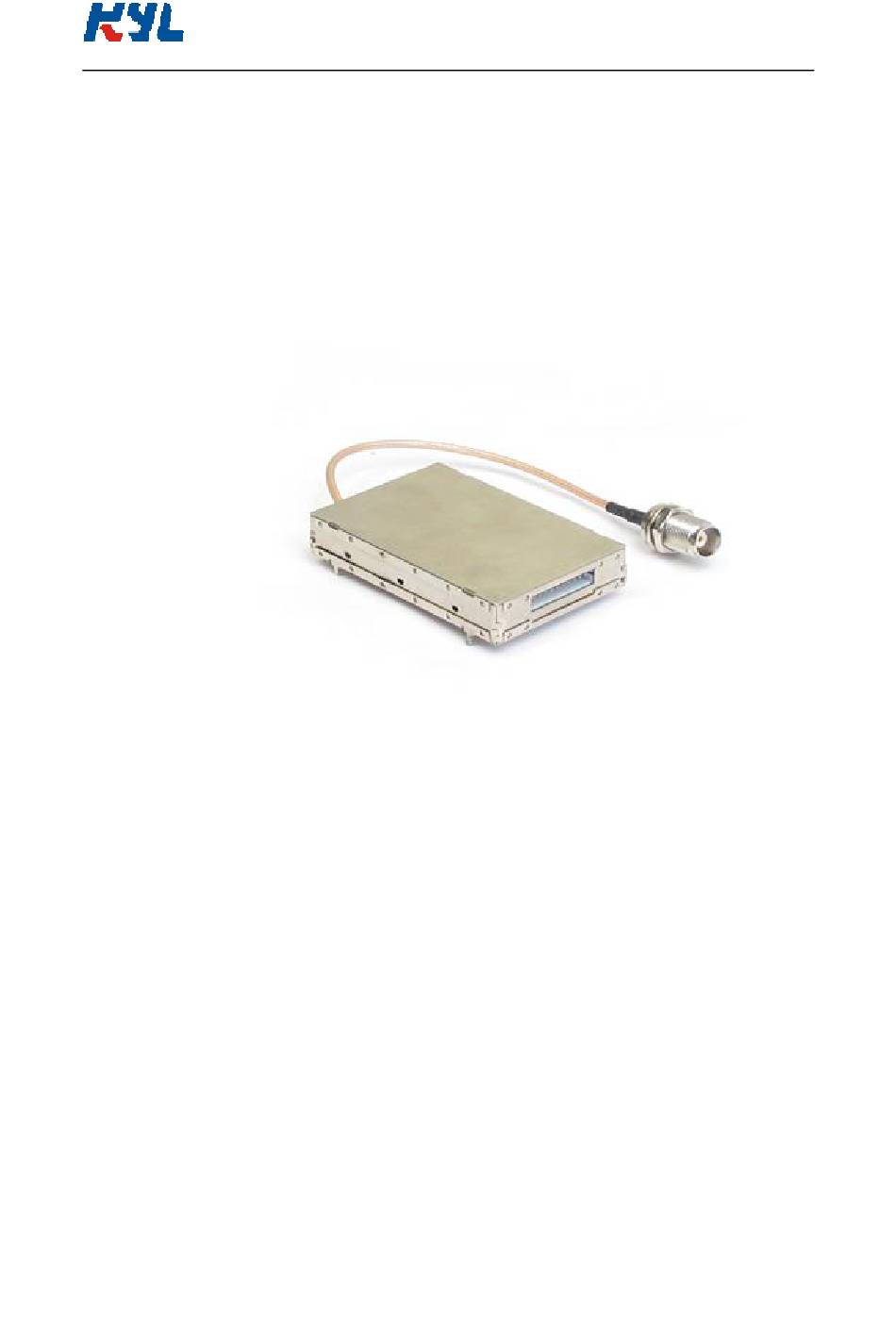

KYL-600L Wireless audio and Data
Radio Module User Manual
Shenzhen KYL Communication Equipment Co., Ltd
Address: Room 305-307, Building 1, Zhuguang Innovation Science and Technology
Park, Xili, Nanshan District, Shenzhen, China
Tel: +0086-755-86643962
Fax: +0086-755-83408785
Skype：rf-data
E_mail: sales01@rf-data.com；
Website: http://www.rf-data.com
Before using the product please read the use manual carefully.
Any question in technical, you can contact us.
Tel: +0086-755-86643962 E_mail: sales01@rf-data.com；
www.rf-data.com
Advertisement
Table of Contents
Related Manuals for KYL KYL-600L
Summary of Contents for KYL KYL-600L
- Page 1 Shenzhen KYL Communication Equipment Co., Ltd KYL-600L Wireless audio and Data Radio Module User Manual Shenzhen KYL Communication Equipment Co., Ltd Address: Room 305-307, Building 1, Zhuguang Innovation Science and Technology Park, Xili, Nanshan District, Shenzhen, China Tel: +0086-755-86643962 Fax: +0086-755-83408785 Skype：rf-data...
- Page 2 Shenzhen KYL Communication Equipment Co., Ltd About KYL-600L: KYL-600L, the data radio module adopt double VCO structure, high stability TXCO, integration RF and so on advanced technique; at the same time it use the advanced rectify fault arithmetic in software. So it has high stability and reliability. It is the first equipment for the user in the field of industry control, water conservancy, electric power, oil field and so on.
- Page 3 Shenzhen KYL Communication Equipment Co., Ltd 3. Transmitter: * RF power: ≤500mW （1W/2W customized） * Transmitting current: 300mA * Modulation: FFSK * Audio distortion: ≤3% * Frequency deviation: ± 5.0kHz * Adjacent channel power: ≥70dB * Transmitter startup time: ≤50m * Surplus Frequency Modulation: ≤-40dB...
- Page 4 Shenzhen KYL Communication Equipment Co., Ltd * Interface definition: Signal Function Level Connection with Name terminal Input power 5V optional Grounding of the power RS-485 A or TXD of A(TXD) RS-232 Choose RS-485 or RS-232 RS-485 B or RXD of...
- Page 5 7. The installing schematic 8. Notices during the use of KYL-600L 1) The antenna should away from the power supply if use the switch power, because the transmitting of the antenna may affect the normal work of the switch power. When the transmission happen fault, checking the power voltage whether interfered from the antenna is one way of eliminating fault.
- Page 6 Shenzhen KYL Communication Equipment Co., Ltd 9. Standard configuration and Antenna configuration i: Standard configuration: * One KYL-600L RF module * A 9pin flat Connection Line * A whip antenna（about 10cm） ii: Antenna configuration: Many appropriative antennas for low power RF modules are selected for meeting different user antenna configuration.
- Page 7 Shenzhen KYL Communication Equipment Co., Ltd 10.Application of KYL-600L Networking The communication channel of KYL-600L is half duplex, which is most suitable for the communication mode of point to multi-point. Under this mode, one master station must be set, and all of the rest are slave stations. A unique address is given to each station.
