HYTECON HYPRO WATER User Manual

Hide thumbs Also See for HYPRO WATER:
Table of Contents

Advertisement

Quick Links

Download this manual
User manual
HYPRO WATER
EN | 05.2021

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HYPRO WATER and is the answer not in the manual?

Questions and answers

Related Manuals for HYTECON HYPRO WATER

Summary of Contents for HYTECON HYPRO WATER

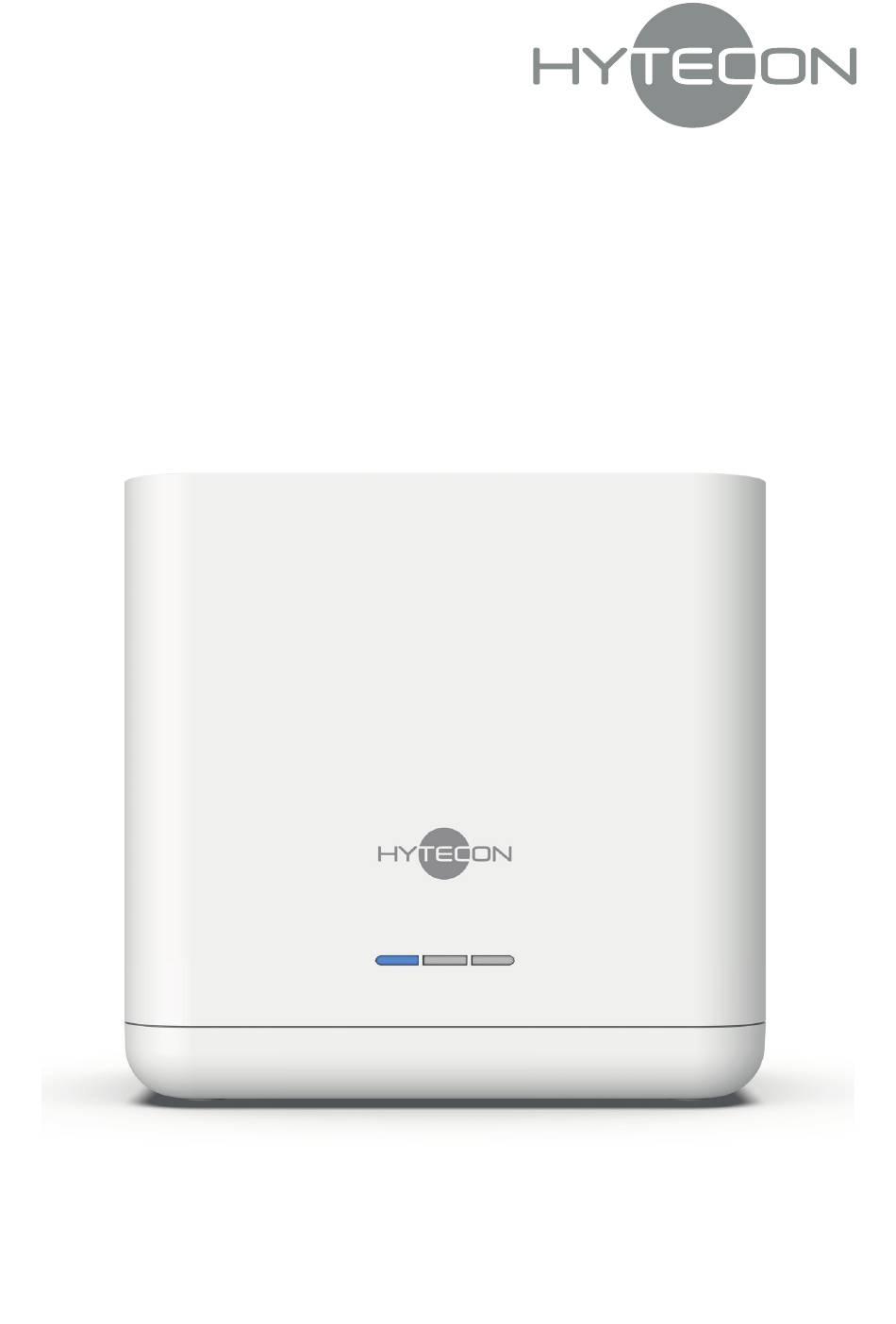

  • Page 1 User manual HYPRO WATER EN | 05.2021...
  • Page 2 CAUTION warns of a dangerous situation that can lead to minor or moderate injury. D ATTENTION! Information marked with the word ATTENTION warns of a situation that can lead to damage to property or the environment. HYPRO WATER – 05.2021...

  • Page 3: Table Of Contents

    10.3 Patents ... . . 47 HYPRO WATER app ..10 10.4 TÜV certificate..47 10.5...

  • Page 4: Safety Information

    – In a technically faultless and unmodified condition. – With the use of new original accessories. – After correct installation and checks. – In enclosed rooms. Any other use is non-intended use. HYPRO WATER – 05.2021...

  • Page 5: General Safety Notes

    3  Nm an. Never open the enclosure. Do not look into the UV LEDs. Only check that the UV LEDs are working indirectly, by means of the status LEDs on the device and the HYPRO app. HYPRO WATER – 05.2021...
  • Page 6 – In case of non-intended use. – In case of incorrect handling. – With use of non-original accessories. Made in Germany. The device and its installation are subject to the regulations of the Federal Republic of Germany. HYPRO WATER – 05.2021...

  • Page 7: Product Information

    (e. g. PFOA and PFOS) – Odorants and flavourings Device cover Pressure point of the device cover Screw cap for the filter chamber 4 Filter Shut-off valve 6 Filter chamber LED indicator Tested and verified by independent laboratories. HYPRO WATER – 05.2021...
  • Page 8 Mains cable with power plug The device is connected with the 10 Thread for mounting on the wall WLAN. bracket LED lights up or flashes red: 11 Water inlet Fault or filter change. 12 Water outlet HYPRO WATER – 05.2021...

  • Page 9: Scope Of Supply

    Scope of supply A HYPRO WATER device B Filter C Wall bracket 2.3 / 1 D Angle piece (5/16") Angle piece (3/ 8 ") Reducer piece G Connection piece (outside thread 3/8") H Connection piece (inside thread 3/ 8 ") Water inlet hose (5/16")

  • Page 10: Technical Data

    249.5 mm Depth 161 mm Height 235 mm You can find the app in the respective Empty weight 3.6 kg app store under the name “HYPRO WATER App”. Weight with water 4.5 kg The following information is presented in Filter capacity 2000 l the app: Filter change 4 months –...

  • Page 11: Installation

    – If the device is used with the HYPRO water tap. app: A WLAN connection to the  Water tap documentation. internet must be available at the installation site. – If a boiler is used, this must have been professionally installed. HYPRO WATER – 05.2021...

  • Page 12: Unpacking The Device

    (page 46). In individual cases a small amount of water may be present in the device and may leak out due to the manufacturer's quality controlling. This does not impair the quality or function of the device. HYPRO WATER – 05.2021...

  • Page 13: Preparing For Installation

    – Pipe wrench – Cut-resistant underlay Angle pieces are only required if you mount the device on the wall bracket or on the worktop. The hoses can also be secured in the device without angle pieces. HYPRO WATER – 05.2021...

  • Page 14: Installation Variants

    3.4 / 4 Connection to a 2-way tap and use of a Connection to an auxiliary tap and use of boiler. a 2-way tap. ➡ “3.10 Executing installation variant 4” ➡ “3.8 Executing installation variant 2” (page 31). (page 21). HYPRO WATER – 05.2021...

  • Page 15: Mounting The Wall Bracket

    (page 11). Level the wall bracket (C) with the spirit level. Mark the four fastening points. Screw on the wall bracket (C) with the Use fastening materials that are suitable for four screws (O). the installation. HYPRO WATER – 05.2021...

  • Page 16: Hose Connections

    Insert the hose: Remove the inserted hose. Insert the hose until the endpoint is reached. The retainer element secures the hose. Make sure you do not deform the hose. HYPRO WATER – 05.2021...

  • Page 17: Executing Installation Variant 1

    3.7 / 2 3.7 / 1 20 cm 10 cm Assemble the required parts. – If installing without the wall bracket then C,D,E,N and O are omitted. – Connection pieces G and H alternatively, depending on the tap used. HYPRO WATER – 05.2021...
  • Page 18 Unscrew the cold water connection of the tap from the angle valve. Insert the angle piece (D) in the water inlet (left) until the endpoint is reached. Secure the angle piece (D) with the safety clip (L). HYPRO WATER – 05.2021...
  • Page 19 (right) until the endpoint is reached. Secure the angle piece (E) with the Guide the mains cable and hoses from safety clip (M). above through the cut-out in the wall bracket (C). Place the device on the wall bracket (C). HYPRO WATER – 05.2021...
  • Page 20 T-piece (K) respectively. Screw the connection piece (H) or (G) Mark the respective hose length onto the tap for disinfected water by required. hand. Shorten both hoses to the required lengths. Make sure the hoses are trimmed straight. HYPRO WATER – 05.2021...

  • Page 21: Executing Installation Variant 2

    Insert the hose (J) in the connection piece (H) or (G) until the endpoint is reached. Secure the hose (J) with the safety clip (M). Continue with chapter “Inserting the filter”. ➡ “3.11 Inserting the filter” (page 35). HYPRO WATER – 05.2021...
  • Page 22 Unscrew the cold water connection of Assemble the required parts. the tap from the angle valve. – If installing without the wall bracket then C,D,E,N and O are omitted. – Connection pieces G and H alternatively, depending on the tap used. HYPRO WATER – 05.2021...
  • Page 23 Insert the angle piece (D) in the water Secure the angle piece (E) with the inlet (left) until the endpoint is reached. safety clip (M). Secure the angle piece (D) with the safety clip (L). HYPRO WATER – 05.2021...
  • Page 24 Screw the connection piece (H) or (G) onto the tap for disinfected water by hand. Guide the mains cable and hoses from above through the cut-out in the wall bracket (C). Place the device on the wall bracket (C). HYPRO WATER – 05.2021...
  • Page 25 Make sure the hoses are piece (H) or (G) until the endpoint is trimmed straight. reached. Secure the hose (J) with the safety clip (M). Continue with chapter “Inserting the filter”. ➡ “3.11 Inserting the filter” (page 35). HYPRO WATER – 05.2021...

  • Page 26: Executing Installation Variant

    2-way tap without boiler! Hot water cannot be disinfected. To draw off disinfected water when connected to a 2-way tap without a boiler, make sure that the mixer tap is fully in the cold position. 20 cm 10 cm HYPRO WATER – 05.2021...
  • Page 27 Place a bucket beneath the angle valve on the cold water pipe. Unscrew the cold water connection of Assemble the required parts. the tap from the angle valve. – If installing without the wall bracket then C,D,E,N and O are omitted. HYPRO WATER – 05.2021...
  • Page 28 (left) until the endpoint is reached. Insert the angle piece (E) in the water Secure the angle piece (D) with the outlet (right) until the endpoint is safety clip (L). reached. Secure the angle piece (E) with the safety clip (M). HYPRO WATER – 05.2021...
  • Page 29 Guide the mains cable and hoses from above through the cut-out in the wall Screw the connection piece (G) onto bracket (C). the tap connection for cold water by Place the device on the wall hand. bracket (C). HYPRO WATER – 05.2021...
  • Page 30 Insert the hose (J) in the connection lengths. Make sure the hoses are piece (G) until the endpoint is reached. trimmed straight. Secure the hose (J) with the safety clip (M). Continue with chapter “Inserting the filter”. ➡ “3.11 Inserting the filter” (page 35). HYPRO WATER – 05.2021...
  • Page 31 3.10 Executing installation variant 4 3.10 / 2 3.10 / 1 20 cm 10 cm Assemble the required parts. – If installing without the wall bracket then C,D,E,N and O are omitted. HYPRO WATER – 05.2021...
  • Page 32 (left) until the endpoint is reached. Secure the angle piece (D) with the safety clip (L). Place a bucket beneath the angle valve on the cold water pipe. Unscrew the cold water connection of the tap from the angle valve. HYPRO WATER – 05.2021...
  • Page 33 (right) until the endpoint is reached. Secure the angle piece (E) with the Guide the mains cable and hoses from safety clip (M). above through the cut-out in the wall bracket (C). Place the device on the wall bracket (C). HYPRO WATER – 05.2021...
  • Page 34 Mark the respective hose length required. 3.10 / 13 Shorten both hoses to the required lengths. Make sure the hoses are trimmed straight. Screw the connection piece (G) onto the tap connection for cold water by hand. HYPRO WATER – 05.2021...

  • Page 35: Inserting The Filter

    3.10 / 16 3.11 / 2 Insert the hose (J) in the connection piece (G) until the endpoint is reached. Secure the hose (J) with the safety clip (M). Turn the shut-off valve into the “CLOSE” position. HYPRO WATER – 05.2021...
  • Page 36 Turn the screw cap on the filter chamber. chamber until it is fully closed. 3.11 / 4 Remove the protective film from the filter (B). Insert the filter (B). Carefully press the filter (B) down until it latches into the device. HYPRO WATER – 05.2021...

  • Page 37: Completing Installation

    3.12 / 3 the device with the WLAN. Follow the instructions of the HYPRO WATER app. ➡ “2.5 HYPRO WATER app” (page 10). When the device is connected with the WLAN, the middle LED will be constantly lit up yellow. To search again: Unplug the power plug and plug it back in again.
  • Page 38 3.12 / 5 out, although for at least 180 seconds. After installation and first commissioning, check: The connection points for any water leaks by way of a visual inspection. Fit the device cover. HYPRO WATER – 05.2021...

  • Page 39: Use

    LED lights up yellow continuously: The device is connected with the Drawing disinfected water: WLAN. Draw filtered and disinfected water as required. LED lights up or flashes red: Fault or filter change. ➡ “7. Troubleshooting” (page 43). HYPRO WATER – 05.2021...

  • Page 40: Cleaning

    Cleaning Information about cleaning: Clean the surfaces of the device with a lint-free cloth, slightly dampened with water. Rub the surfaces of the device with a dry lint-free cloth to dry it. HYPRO WATER – 05.2021...

  • Page 41: Maintenance

    Water can run out when the screw cap is opened and the filter is removed. The leaking water may cause property damage. Clean up any leaked water immediately. Unscrew the screw cap for the filter chamber. ➡ “3.11 / 3” (page 36). HYPRO WATER – 05.2021...

  • Page 42: Check

    Fit the device cover. ➡ “3.12 / 5” (page 38). Open the disinfected water tap and allow the water to run for at least 180 seconds, until particles no longer flow out. ➡ “3.12 / 6” (page 38). HYPRO WATER – 05.2021...

  • Page 43: Troubleshooting

    Consult the HYPRO app for further carried out correctly, in accordance with details. the user manual. Contact the customer service centre. Check that the water connections and disinfected water tap are open. Check that the power plug is plugged HYPRO WATER – 05.2021...
  • Page 44 – Screw cap for the filter chamber incorrectly closed. Check whether the screw cap for the filter chamber is fully closed. If the fault persists: Close the angle valve of the cold water pipe. Get in touch with your installer. HYPRO WATER – 05.2021...

  • Page 45: Disassembly

    Unscrew the T-piece (K) or the connection piece (H) from the drinking water tap. Unscrew the knurled screw (N) at the bottom and remove from the wall bracket (C). Remove the device. Disassemble the wall bracket (C). HYPRO WATER – 05.2021...

  • Page 46: Disposal

    Disposing of used filters The used adsorption material must not be regenerated or reused. Dispose of used filters with residual waste. HYPRO WATER – 05.2021...

  • Page 47: 10. Annex

    You can view the privacy policy at: www.hytecon.com 10.3 Patents This product is protected by the following patents: – U.S. Patent US 10,377,644 B2 – U.S. Patent US 10,570,030 B2 – U.S. Patent US 2020/0399144 A1 HYPRO WATER – 05.2021...

  • Page 48: General Information

    Class B systems are not or after the system. intended for treatment of contaminated water. Refer to the NSF performance data for details on which individual contaminants to remove. ➡ “10.8 NSF performance data” (page 49). HYPRO WATER – 05.2021...

  • Page 49: Nsf Performance Data

    10.8 NSF performance data NSF Performance Data for the HYPRO WATER Filter System Rated Operating Water Model Replacement Flow rate capacity pressure temperature HYPRO Water 201001 2,000 l 4 bar/0.4 MPa 5° C - 30° C 2.87 l/min HYTECON AG, Brunnhalde 10, 6006 Luzern, Switzerland This system has been tested according to NSF/ANSI 42, 53 and 401 for the reduction of the substances listed below.

  • Page 50: Ce Declaration Of Conformity

    D D e e c c l l a a r r a a t t i i o o n n o o f f c c o o n n f f o o r r m m i i t t y y We hereby declare on our own responsibility that the design of the device HYPRO Water UV-LED drinking water filter in the version which we have placed on the market,...

  • Page 51: Fcc/Ised

    This equipment should be installed and and on, the user is encouraged to try to operated with minimum distance 20 cm correct the interference by one or more of between the radiator and your body. the following measures: HYPRO WATER – 05.2021...
