Summary of Contents for GreenTech ECOBUS
- Page 1 Mountable Air Purification Owner’s Manual...
-
Page 2: Table Of Contents

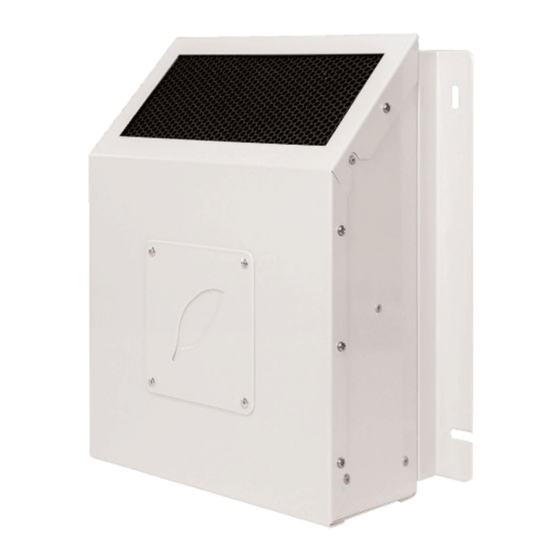

This unit is designed to be permanently mounted to a wall surface in several different applications. Since ECOBUS is powered by 24VDC it is a perfect product to be used in motor coaches or any other vehicle that uses 24VDC. However, ECOBUS can be outfitted with a mounting bracket and 120-240VAC power adapter and used as a wall mounted air purifier in a large room, small office, or similar space. -
Page 3: Specifications
Specifications Mobile Model Dimensions ..... 10.25” H ) x 8.00” W x 3.25” D (260mm (203mm) (83mm) Weight ............2.3 lb (1kg) Electrical Input . -
Page 4: Unit Diagrams
Unit Diagrams Unit Front Air Outlet Unit Cover Unit Rear Security Mounting Holes Mounting Bracket (Stationary Only) Power Outlet DC Power Plug Unit Bottom Unit Internals Security Screw Holes ARC Cell JST Connector (Mobile Only) Filter Cover Plate Air Intake... -
Page 5: Installation (Mobile Unit)
STEP 3 & 8 If not, a switch (not included) will be necessary between the electrical lead from vehicle and power lead of ECOBUS. Remove cover from unit (requires a security TORX bit {T10} – not included). Option – If utilizing the LED operation... -
Page 6: Installation (Stationary Unit)
18 inches of the ceiling if possible. Plug the power adapter’s elbow style DC connector to back of ECOBUS unit. STEP 2 Attach the ECOBUS unit to the wall location with included screws utilizing the mounting bracket flanges. -
Page 7: Cleaning The Unit
Cleaning the Unit The unit will need to be cleaned inside from time to time as well. Be sure to use extreme caution when doing this in order to avoid any damage to the unit or harm to yourself. WARNING: Make sure to disconnect the unit from its power source before any maintenance or cleaning is done. -
Page 8: Arc Cell Replacement
Cell Replacement ™ See Page 9 for Replacement Part Numbers. WARNING: Make sure to disconnect the unit from its power source before any maintenance or cleaning is done. WARNING: Please do not throw a used ARC™ Cell in the garbage. See CELL DISPOSAL (PG. -
Page 9: Replacement Part Numbers
ECOBUS Replacement Filter ........ -
Page 10: Troubleshooting
Troubleshooting ™ Cell Doesn’t Turn On • Check for secure connection • Try another ARC™ Cell • Ballast needs replaced (Visit www.greentechenv.com for contact information) Fan Doesn’t Turn On • Check for secure connection • Fan needs replaced (Visit www.greentechenv.com for contact information) -
Page 11: Warranty Information
Genuine GreenTech Environmental Parts are not covered. GreenTech Environmental will, at its option, repair or replace a defective Product or part(s) for the Product that is/are covered by this warranty. As a matter of warranty policy, GreenTech Environmental will not refund the customer’s purchase price.
