Front Panel
Introduction, Championship Start Specifications

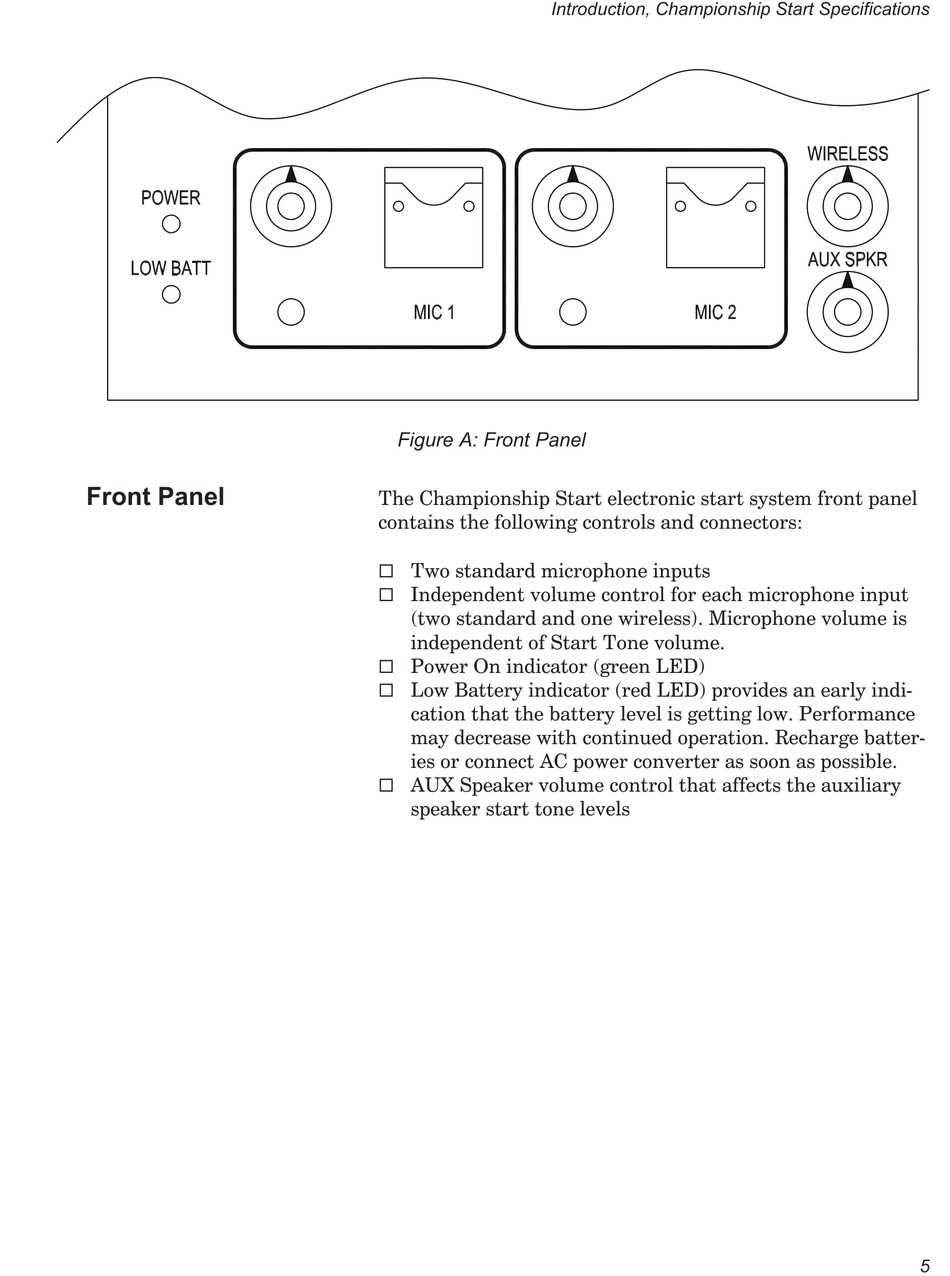

Figure A: Front Panel
The Championship Start electronic start system front panel
contains the following controls and connectors:
¨
Two standard microphone inputs
¨
Independent volume control for each microphone input
(two standard and one wireless). Microphone volume is
independent of Start Tone volume.
¨
Power On indicator (green LED)
¨
Low Battery indicator (red LED) provides an early indi-
cation that the battery level is getting low. Performance
may decrease with continued operation. Recharge batter-
ies or connect AC power converter as soon as possible.
¨
AUX Speaker volume control that affects the auxiliary
speaker start tone levels
