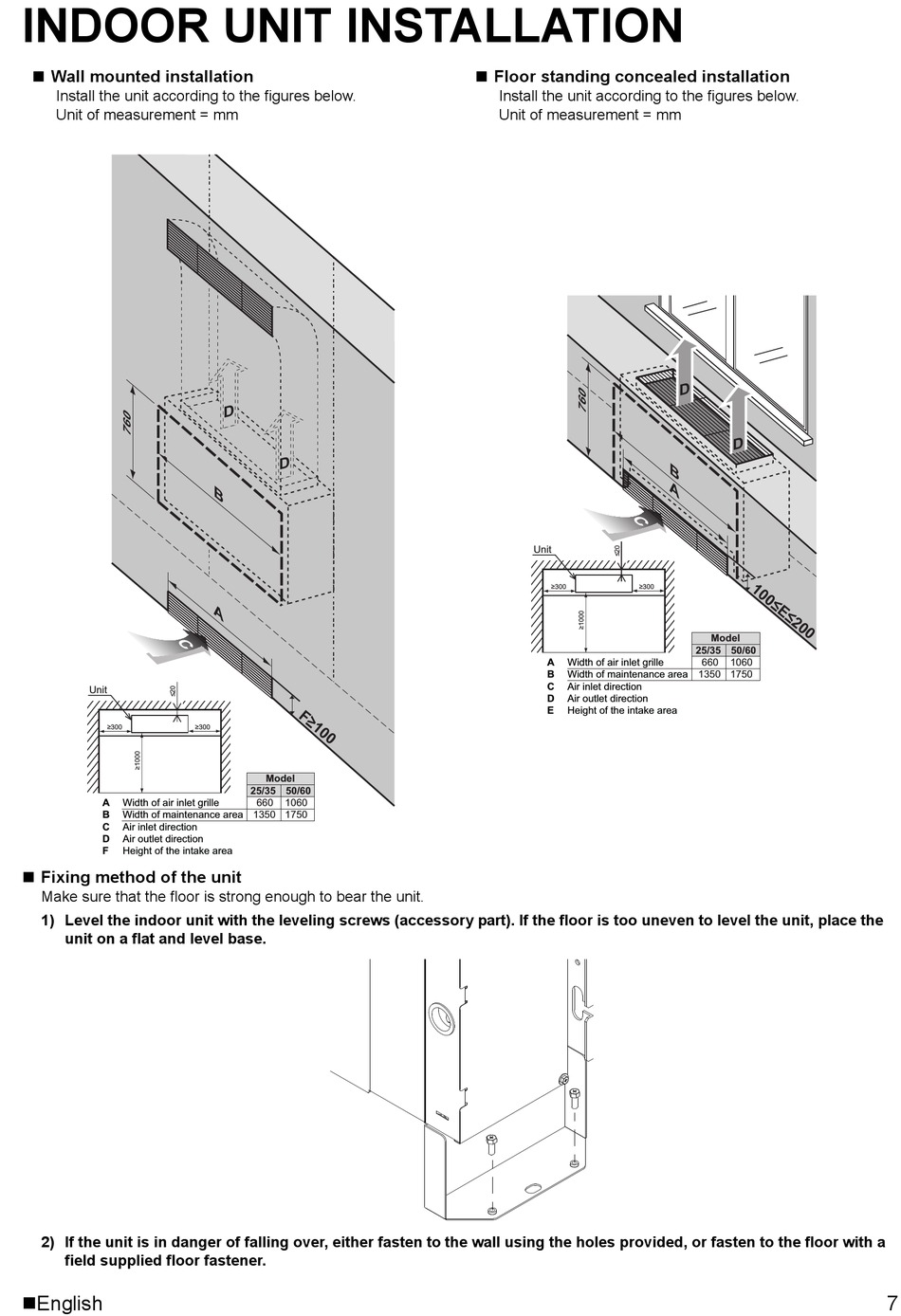

INDOOR UNIT INSTALLATION
 Wall mounted installation
Install the unit according to the figures below.
Unit of measurement = mm
Unit
300
A Width of air inlet grille
B Width of maintenance area
C Air inlet direction
D Air outlet direction
F Height of the intake area
 Fixing method of the unit
Make sure that the floor is strong enough to bear the unit.
1) Level the indoor unit with the leveling screws (accessory part). If the floor is too uneven to level the unit, place the
unit on a flat and level base.
2) If the unit is in danger of falling over, either fasten to the wall using the holes provided, or fasten to the floor with a
field supplied floor fastener.
English
D
D
300
Model
25/35 50/60
660 1060
1350 1750
 Floor standing concealed installation
Install the unit according to the figures below.
Unit of measurement = mm
Unit
300 300
A Width of air inlet grille
B Width of maintenance area
C Air inlet direction
D Air outlet direction
Height of the intake area
D
D
Model
25/35 50/60
660 1060
1350 1750
