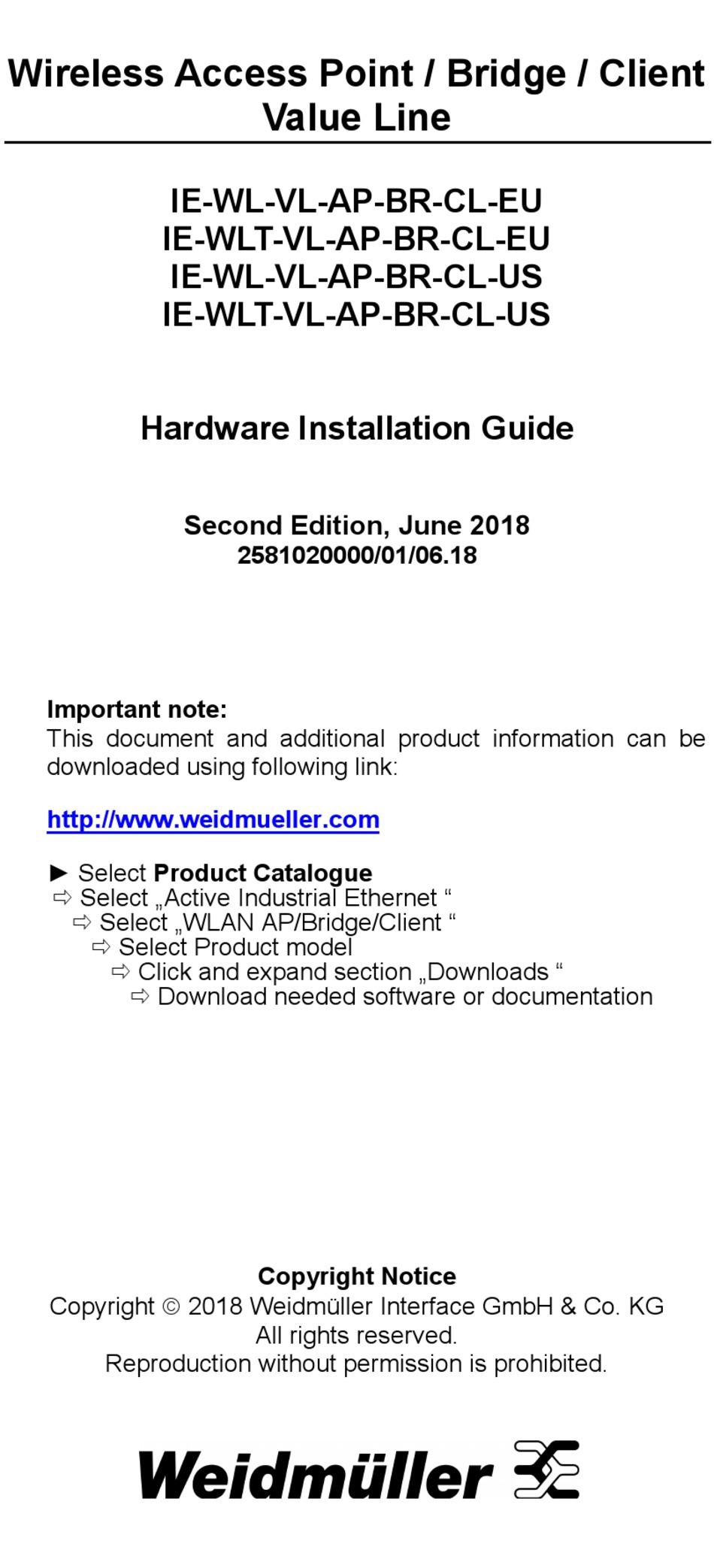

Wireless Access Point / Bridge / Client
Hardware Installation Guide
Important note:
This document and additional product information can be
downloaded using following link:
http://www.weidmueller.com
► Select Product Catalogue
 Select „Active Industrial Ethernet "
 Select „WLAN AP/Bridge/Client "
 Select Product model
 Click and expand section „Downloads "
 Download needed software or documentation
Copyright  2018 Weidmüller Interface GmbH & Co. KG
Reproduction without permission is prohibited.
Value Line
IE-WL-VL-AP-BR-CL-EU
IE-WLT-VL-AP-BR-CL-EU
IE-WL-VL-AP-BR-CL-US
IE-WLT-VL-AP-BR-CL-US
Second Edition, June 2018
2581020000/01/06.18
Copyright Notice
All rights reserved.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Value Line IE-WL-VL-AP-BR-CL-EU and is the answer not in the manual?

Questions and answers

Related Manuals for Weidmüller Value Line IE-WL-VL-AP-BR-CL-EU

Summary of Contents for Weidmüller Value Line IE-WL-VL-AP-BR-CL-EU

  • Page 1 Wireless Access Point / Bridge / Client Value Line IE-WL-VL-AP-BR-CL-EU IE-WLT-VL-AP-BR-CL-EU IE-WL-VL-AP-BR-CL-US IE-WLT-VL-AP-BR-CL-US Hardware Installation Guide Second Edition, June 2018 2581020000/01/06.18 Important note: This document and additional product information can be downloaded using following link: http://www.weidmueller.com ► Select Product Catalogue ...

  • Page 2: Package Checklist

    Overview Weidmüller Wi-Fi devices are ideal for applications that are hard to wire, too expensive to wire, or use mobile equipment that connects over a TCP/IP network. The devices meet the growing need for faster data transmission speeds by supporting IEEE 802.11n technology with a net data rate of up to 300 Mbps.
  • Page 3 Panel Layout of IE-WL(T)-VL-AP-BR-CL-EU/US 1. Grounding screw (M5) 2. Terminal block for PWR1, PWR2, relay, DI1, and DI2 3. Reset button 4. System LEDs: PWR1, PWR2, PoE, FAULT, and STATE 5. LEDs for WLAN signal strength 6. WLAN LED 7. Ethernet LED 8.

  • Page 4: Mounting Dimensions

    Mounting Dimensions Units = mm (inch) DIN-Rail Mounting The aluminum DIN-rail attachment plate should already be fixed to the back panel of the Wi-Fi device when you take it out of the box. If you need to reattach the DIN-rail attachment plate, make sure the stiff metal spring is situated towards the top, as shown in the figures below.

  • Page 5: Wall Mounting (Optional)

    Wall Mounting (optional) For some applications, you will find it convenient to mount the Wi-Fi device on the wall, as shown in the following figures. STEP 1: Remove the aluminum DIN-Rail attachment plate from the switch rear panel, and then attach the wall mount plates as shown in the diagram at the right.

  • Page 6: Wiring Requirements

    Wiring Requirements WARNING Safety First! Be sure to disconnect the power cord before installing and/or wiring the Wireless Access Point/Bridge/Client. Calculate the maximum possible current in each power wire and common wire. Observe all electrical codes dictating the maximum current allowed for each wire size. If the current goes above the maximum ratings, the wiring could overheat, causing serious damage to your equipment.
  • Page 7 Grounding the Wireless Access Point/Client Grounding and wire routing help limit the effects of noise due to electromagnetic interference (EMI). Run the ground connection from the ground screw to the grounding surface prior to connecting devices. ATTENTION This product is intended to be mounted to a well-grounded mounting surface, such as a metal panel.

  • Page 8: Wiring The Redundant Power Inputs

    Wiring the Redundant Power Inputs The top two pairs of contacts of the 10-contact terminal block connector on the Wireless Access Point/Bridge/Client´s top panel are used for the two DC inputs. Top and front views of the terminal block connector are shown here.

  • Page 9: Cable Holder Installation

    Cable Holder Installation Attach the cable holder to the bottom of the Wireless Access Point/Bridge/Client to keep cabling neat and avoid accidents that result from untidy cables. STEP 1: Screw the cable holder onto the bottom of the Wireless Access Point/Bridge/Client. STEP 2: After mounting the Wireless Access Point/Bridge/Client and plugging in the LAN cable, tighten the cable along the device and wall.

  • Page 10: Communication Connections

    Communication Connections 10/100BaseT(X) Ethernet Port Connection The 10/100BaseT(X) port located on the Wireless Access Point/Client´s front panel is used to connect to Ethernet-enabled devices. Below we show pinouts for both MDI (NIC-type) ports and MDI-X (HUB/Switch-type) ports. MDI Port Pinouts MDI-X Port Pinouts 8-pin RJ45 Signal...

  • Page 11: Led Indicators

    LED Indicators The front panel of the Wireless Access Point/Bridge/Client contains several LED indicators. The function of each LED is described in the table below. Color State Description Power is being supplied to power input PWR1. PWR1 Green Power is not being supplied to power input PWR1.

  • Page 12: Specifications

    LAN port’s 1000 Mbps link is active. Green Blinking Data is being transmitted at 1000 Mbps LAN port’s 1000 Mbps link is inactive. LAN port’s 10/100 Mbps link is active. Amber Blinking Data transmission rate 10/100 Mbps. LAN port’s 10/100 Mbps link is inactive. Specifications WLAN Interface Standards...
  • Page 13 Transmitter Power 802.11b: • Typ. 26±1.5 dBm @ 1 Mbps • Typ. 26±1.5 dBm @ 2 Mbps • Typ. 26±1.5 dBm @ 5.5 Mbps • Typ. 25±1.5 dBm @ 11 Mbps 802.11g: • Typ. 23±1.5 dBm @ 6 to 24 Mbps •...
  • Page 14 • 802.11a: -90 dBm @ 6 Mbps, -88 dBm @ 9 Mbps -88 dBm @ 12 Mbps, -85 dBm @ 18 Mbps -81 dBm @ 24 Mbps, -78 dBm @ 36 Mbps -74 dBm @ 48 Mbps, -72 dBm @ 54 Mbps •...
  • Page 15 Reverse Polarity Present Protection Standards and Certifications Safety UL 60950-1, EN 60950-1 EN 61000-6-2 / 61000-6-4 CISPR 32, FCC Part 15B Class B IEC 61000-4-2 ESD: Contact 8 kV; Air 15 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz; 10 V/m IEC 61000-4-4 EFT: Power 2 kV;...
  • Page 16 ATTENTION Do not locate the antenna near overhead power lines or other electric light or power circuits, or where it can come into contact with such circuits. When installing the antenna, take extreme care not to come into contact with such circuits, because they may cause serious injury or death.
  • Page 17 WARNING EXPLOSION HAZARD Substitution of any components may impair suitability for Class I, Division 2. WARNING • This equipment is intended to be used in a Restricted Access Location, such as a dedicated computer room where only authorized service personnel or users can gain access. Such personnel must be instructed about the fact that the metal chassis of the equipment is extremely hot and may cause burns.
