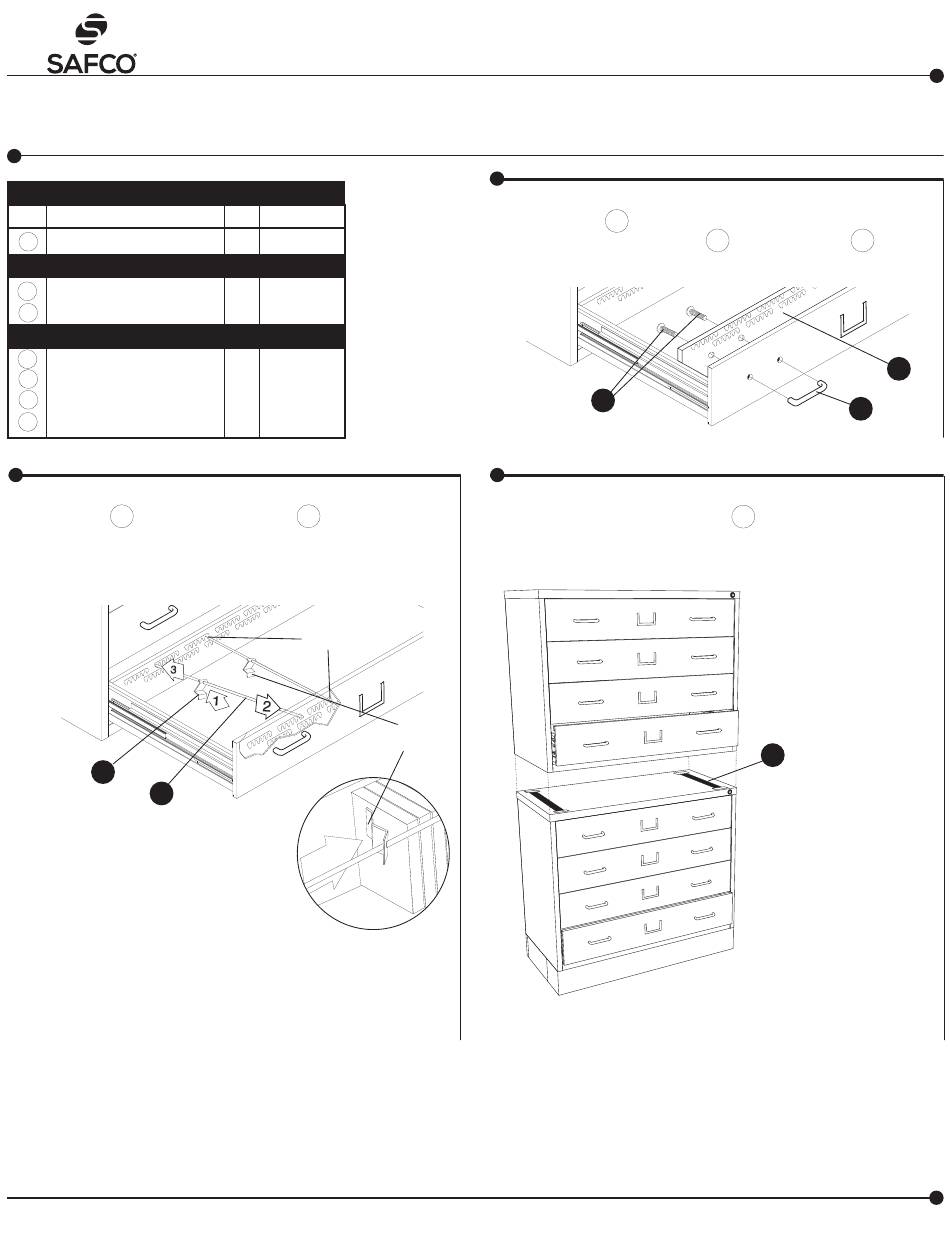

Safco 4935 Assembly Instructions

an LDI Spaces Company
Minneapolis, MN 55428
www.safcoproducts.com
PARTS LIST
CODE DESCRIPTION
A
Front Panel
Hardware Pack 4935-19NC
B Spacer Rod
Bookend Clip
C
Hardware Pack 4935-99NC
D
Keys, Set of 2
E
Screw
F
Handle
G
Rubber Strip, 72"
2
Slide a C Bookend Clip onto a B Spacer Rod, with
the End Face toward the back of the intended media.
Insert the spacer rods by fi rst inserting one end of the rod
into one side of a rod holder at the FRONT of the drawer.
C
B
Then insert the other end of
the rod into the opposite side
of the opposing rod holder at
the BACK of the drawer.
Adjust the rods to parallel the drawer
sides. Position the Bookend Clip so
the end face is against the back of the media – press
the clip against the media until it holds its position.
100493537: 1 of 3; Rev A; Rev Date
26-JUL-2016
A/V Microform Storage Cabinet
A S S E M B L Y
TOOLS REQUIRED: Screwdriver
PRODUCT WARRANTY CARD is available online at: www.safcoproducts.com
§Note: When
corresponding
QTY. PART NO. about parts,
be sure to
4 4935-52§
state color:
Light Gray (LG).
24 4935-31NC
24 4935-32NC
1 4930-10NC
16 4935-23NC
8 4930-31CR
1 4939-32NC
ROD
HOLDER
END
FACE
For questions or concerns, please call the
available Monday-Friday 7:30 AM to 5:00 PM (Central Time) (English-speaking operators)
INSTRUCTIONS
1
Insert the A Front Panel into the interior of the drawer
front. Fasten using one F Handle and two E Screws
on each end of the drawer.
E
3
To stack the units, cut the G Rubber Strips to length,
and position as shown. Tape the ends down, and posi-
tion the second cabinet on top.

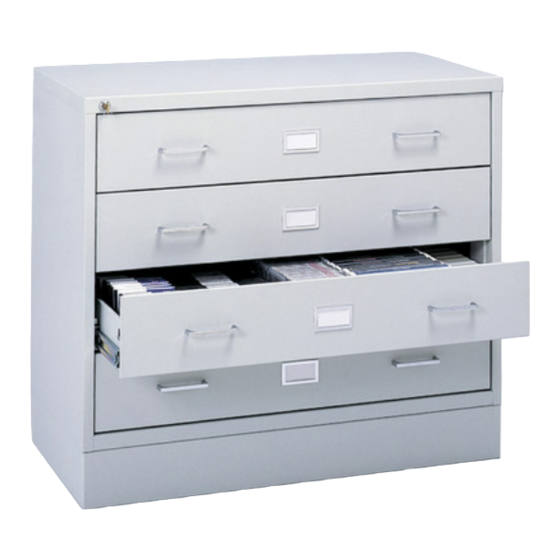

Cabinet - Model #4935 shown with
Base - Model #4931, available separately.
Safco Consumer Hot Line
4935
A
F
WARNING:
Do not fully extend
more than one
drawer at a time
to prevent
accidental tipping
G
RUBBER STRIPS TO
PREVENT SLIPPING
1-800-664-0042
