MNC PILOT 39718 Manual

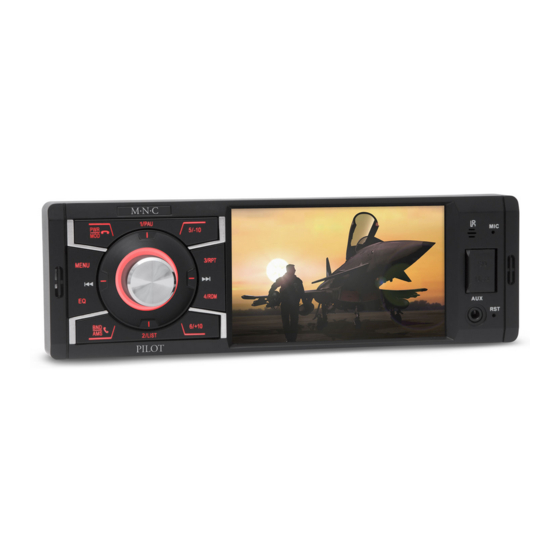

M.N.C "PILOT" MULTIMEDIA HEAD UNIT BT, USB,
MICROSD, AUX
Dear Buyer,
Thank you for choosing our product! We hope it will be of great
service to you for a long time!
Thanks to this quality multimedia head unit you won't need
to miss out on your favorite songs even while on the road. As
expected of today's multimedia you can easily access your head
unit thanks to the big display. You can bring your music with
you on a microSD or USB storage device, but you also have the
choice to use AUX or Bluetooth connection to play music. You can
connect a backup camera to the head unit display.
- Easy to install
- Standard 1 DIN size
- Hands free function
- USB / SD card / AUX / Bluetooth
- Remote controller
- Black color
- Big display
- Choose sounding presets (Classic/Rock/Pop/Flat/Off )
- Adjustable display brightness, contrast, color tone and saturation

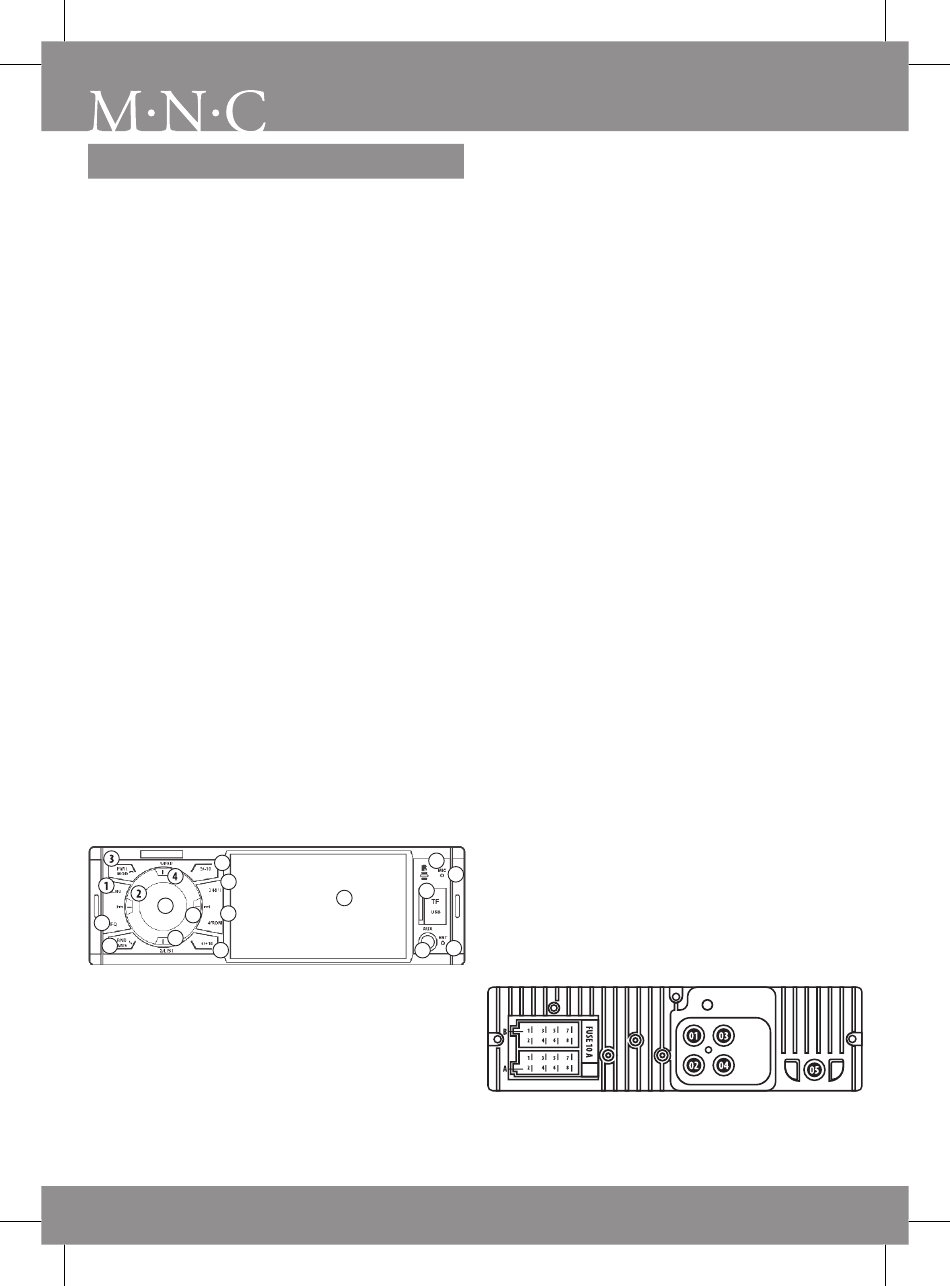

1. MENU –a short press opens the menu, after that you can
turn the volume control left or right to choose from one of
the options: RADIO, BLUETOOTH (pairing code: 0000), SETUP,
AUX, SD, USB By pressing the volume control button you can
choose the mode.
2. Search for radio station/skip back/play last file
3. PWR/MOD – Power on/off, mode changer and decline calls
4. 1/PAU – Radio station program slot / pause
5. 5/-10 - Radio station program slot /skip back 10 files
6. 3/RPT - Radio station program slot / play on repeat on/off
7. IR – Remote controller infra sensor
8. MIC – Bluetooth hands-free installed microphone
9. EQ – Change sound preset Classic/Rock/Pop/Flat/Off
10. BND/AMS – Switch radio station (FM1-2-3) / Automatic search
and store / accept call SD/MMC input (installed). Hold the
output video function button. At the same time the display
turns black. Press the button again to switch to small display
mode.
11. Volume control / sound effect setting
12. 2/LIST - Radio station program slot, list and start media files.
13. 6/+10 - Radio station program slot /skip forward 10 files
14. Radio station searcher/skip forward/play next file
15. 4/RDM - Radio station program slot /randomized media player
16. Display (LCD)
17. AUX - input (3,5mm stereo jack)
18. USB/microSD input
19. RST – reset, restart the device with default options
5
6
11
15
14
9
12
10
13
Radio:
Frequency:
signal/noise ratio:
FM sensitivity:
Stereo crosstalk:
Media player:
Supported formats:
AV output resolution:
Frequency transmission:
MP3 bitrate:
Stereo transmission:
EN
7
8
18
16
19
17
87,5 Mhz – 108 Mhz
≥40 dB
≤37 dB
≥20 dB
MVB/RM/RMVB/FLV/3GP/
MPEG/DivX/Xvid/DAT/VOB/AVI
/MP5/MP4/Flac/Ogg/Wav/Mkv
1920 x 1080 px
100 Hz – 10 Khz (± 8 dB)
8 – 320 kbps
≥ 35 db
Signal/noise ratio:
Harmonic distortion:
General information:
Power (negative grounded):
Music output performance:
Speaker impedance:
Size:
How to use:
Turn on/off (3. button)
Pressing the button turns it on, holding the button turns it off.
FM band switch, Automatic search and store button, accept
call (10. button)
Pressing multiple times while in radio mode switches bands: FM1-
FM2-FM3. Pressing and holding starts the automatic search and
store function, stations stored by this function can be accessed
with the station program slot buttons 1-6. With an active
Bluetooth option press shortly to accept call.
Station program slot (4. 5. 6. 12. 13. 15. buttons)
When you find a radio station press end hold the program slot
buttons (1-6) to save the current station on the slot.
Search for radio / skip forward, back (2. 14. Buttons)
In radio mode press the button to search for stations. Press and
hold to switch to manual searching. In media player mode skips
to next or last file.
Restart (19. button)
In case of error press to restart the device, use a needle to press
and hold the button for 3 seconds. Important note: Saved settings
may be deleted
Mode (1. button)
If pressed in any mode , the mode selection menu comes up you
can switch between modes with turning the volume control left
or right: RADIO, BLUETOOTH, SETUP, AUX, SD, USB Confirm your
selection by pressing the volume control.
Settings:
Press the MENU button then choose SETUP mode. The following
options can be changed:
Language – change language
Time – change time, hour, minute, second
Default – restore default settings
Area – FM radio band setting based on current country
SystemVer – operating system date
Timeformat – Change time format, 24h / 12h
Keytone – sound effect on pressing buttons on/off
Colorlights – change button display color
Equalizer, sounding presets, display settings
Pressing the volume controller shows the following settings:
BASS – bass
TREB – high-pitched sounds
BAL – left and right speaker balance
FAD – front and back speaker balance
EQ – OFF-CLASS-ROCK-POP –FLAT – Default sounding presets
LOUD – Loudness, dynamic sound enhancement till medium
loudness
VOLUME – volume
BRILLANT – brightness
CONTRAST – contrast
HUE – color tone
SATURATION – saturation
1. Video output
2. Video rearview input
3. Rear left audio output
4. Rear right audio output
5. Radio antenna output
39718
≥ 50 dB
≤ 5 %
12 V DC
4 x 45 W
4 – 8 Ω
178 mm x 50 mm x 98 mm
