Summary of Contents for Oh!FX TC-108

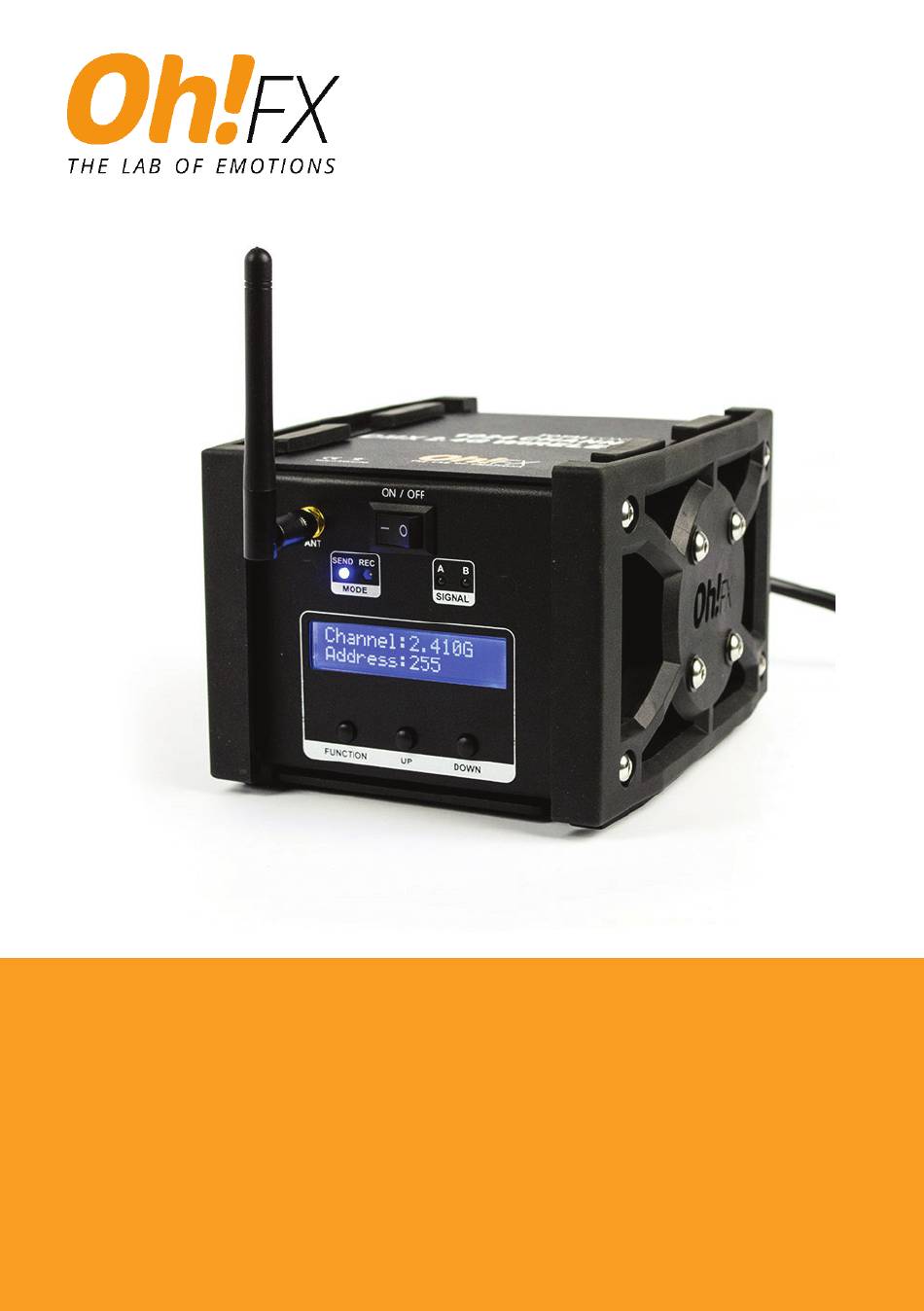

- Page 1 REF: TC-108 DMX WIRELESS QUICK USER GUIDE / MANUAL DE INSTRUCCIONES...

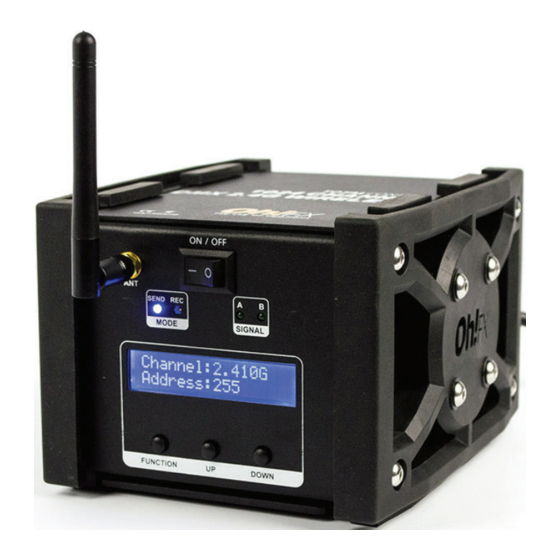

- Page 2 INSTRUCTION MANUAL DMX WIRELESS The DMX WIRELESS is a device to send or receive DMX signal wirelessly. / El DMX WIRELESS es un dispositivo para enviar / recibir señal DMX de forma inalámbrica. TECHNICAL SPECIFICATIONS / ESPECIFICACIONES TÉCNICAS Weight / Peso: 1,85 Kg Dimensions without antenna / Dimensiones sin antena:...
- Page 3 INSTRUCTION MANUAL DMX WIRELESS Connect the DMX wiring to the “DMX INPUT” (4) at the device which will be used as tranmitter. The DMX input and output connectors of 3 and 5 pin respond to diff erent DMX universes. If you use the channel with 3 pin on the transmitter , you must then also use the same 3 pin for the receiver.
- Page 4 Oh!FX will not be responsible for any accident or damage caused as a result of: failure to comply with the warnings or instructions set for this device, use for other purposes that are not expressly indicated in these instructions, manipulation of this device by unauthorized people, insuffi...
