- Page 1 Operating manual A d a p t e r c a b l e s e t VA S 6 7 1 0 0 1 32.VW.2210.1599_BA_V00_EN VAS 671 001...
-
Page 2: Legal Notice
TRANSLATION OF THE ORIGINAL OPERATING MANUAL All rights reserved. All text, images and graphics are subject to copyright and other intellectual property laws. Copyright 2020 CAR-connect GmbH. Image sources Symbols for warnings, prohibitions, mandatory actions and standards are taken from publicly accessible sources, such as the Internet. -
Page 3: Table Of Contents
Detaching the plug connections Detaching the high-voltage plug connection Detaching the plug connection on the diagnostic cable (21-pin) 24 Detaching the plug connection on the diagnostic cable (14-pin) 24 Cleaning Disposal Maintenance HELP Warranty Customer service 32.VW.2210.1599_BA_V00_EN VAS 671 001... -
Page 4: Introduction
Our portfolio also includes measurement and diagnostic technology for the entire vehicle and battery analysis equipment. With extensive experience in software and hardware development, CAR-connect is your dependable partner at every production stage, from prototyping to series production. -
Page 5: Safety
This operating manual is only valid for the following product: Item number 22101599 Designation Adapter cable set VAS 671 001 Warning levels This chapter provides information about the warning levels used in this operating manual. DANGER Failure to observe the safety instructions WILL result in death or serious injury! -
Page 6: Important Safety Instructions
Defective and damaged products cannot guarantee protection against electrical voltage! • Do not let the product come into contact with chemicals! • Replace a defective or damaged product immediately! • Never attempt to repair or tamper with the product! 32.VW.2210.1599_BA_V00_EN VAS 671 001... -
Page 7: Intended Use
Only qualified personnel may work with this product! In this operating manual, qualified personnel is defined as personnel meeting the requirements prescribed by the vehicle manufacturer for the Guided Fault Finding in the respective country of operation. 32.VW.2210.1599_BA_V00_EN VAS 671 001... -
Page 8: Product Description
Diagnostic cable, 14-pin (for Volkswagen e-Up!) VAS 671001/2 Ground cable VAS 671001/4 Pilot line bypass plug for Volkswagen e-Up! VAS 671004/5 Pilot line bypass plug for Volkswagen e-Golf VAS 671001/6 Velcro strap VAS 671001/7 USB stick with operating manual 32.VW.2210.1599_BA_V00_EN VAS 671 001... -
Page 9: Design

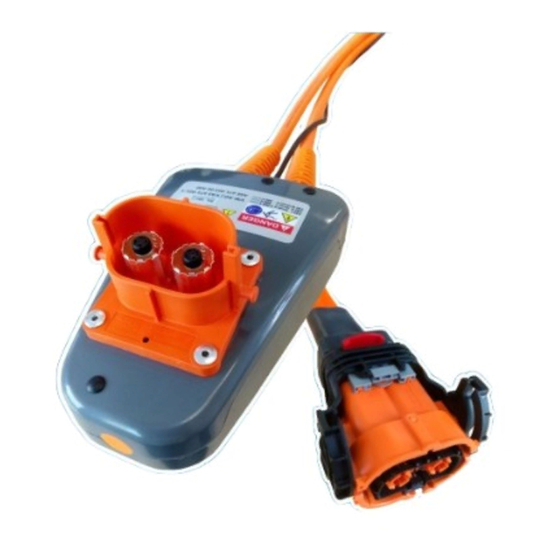

EN | Product description Design High-voltage test adapter VAS 671001/0 Product design: Plug Socket Diagnostic cable, 14-pin VAS671001/2 Product design: Plug, 14-pin Socket, 14-pin 32.VW.2210.1599_BA_V00_EN VAS 671 001... -
Page 10: Diagnostic Cable, 21-Pin
EN | Product description Diagnostic cable, 21-pin VAS 671001/3 Product design: Plug, 21-pin Socket, 21-pin 32.VW.2210.1599_BA_V00_EN VAS 671 001... -
Page 11: Symbols And Connections
General warning symbols Electrical hazard! Read the operating manual! Serial number of the product Manufacturer part number Protection class II Disposal instruction Mark of conformity Vehicle manufacturer’s certification mark cMETus certification mark Measurement category according to IEC 61010-31 32.VW.2210.1599_BA_V00_EN VAS 671 001... -
Page 12: Technical Data
5000 mm Diagnostic cable, 14-pin VAS 671001/2 Rated data Values Manufacturer number 22102051 Maximum rated voltage DC 48 V Maximum rated current Protection class II / double insulated Weight ~ 500 g Cable length 5000 mm 32.VW.2210.1599_BA_V00_EN VAS 671 001... -
Page 13: Diagnostic Cable, 21-Pin
-20 °C to 60 °C -20 °C to 60 °C Humidity Max. 80% up to 31° C, decreasing linearly to 50% at 40° C. Condensation not permitted. Maximum permissible relative humidity: 60% in environments with corrosive gas/air. 32.VW.2210.1599_BA_V00_EN VAS 671 001... -
Page 14: Wiring Diagram
EN | Product description Wiring diagram High-voltage test adapter VAS 671001/1 Diagnostic cable, 14-pin VAS 671001/2 32.VW.2210.1599_BA_V00_EN VAS 671 001... -
Page 15: Diagnostic Cable, 21-Pin
EN | Product description Diagnostic cable, 21-pin VAS 671001/3 18 19 20 Ground cable VAS 671001/4 Bypass plug VAS 671001/5, VAS 671001/6 The wiring diagram is identical for all bypass plugs. 32.VW.2210.1599_BA_V00_EN VAS 671 001... -
Page 16: Operation
• Use the product only for the applications intended by the vehicle manufacturer! CAUTION Risk of damage! Plug connections lock into place when attached. • Unlock the plug connections before you detach them! (See chapter “Detaching the plug connections”) 32.VW.2210.1599_BA_V00_EN VAS 671 001... -
Page 17: Startup
The illustration below shows only the procedure and is suitable for all cases. Connect the components in the following order: 1. Connect ground cable 2. Connect diagnostic cable 3. Bypass pilot lines 4. Connect high-voltage test adapter 5. Secure cables with Velcro strap 32.VW.2210.1599_BA_V00_EN VAS 671 001... -
Page 18: Connect Ground Cable
3. Connect the ground cable to the vehicle body at the point specified in the guided fault finding. Observe the screw tightening torques specified by the vehicle manufacturer. You can now connect the diagnostic cable. 32.VW.2210.1599_BA_V00_EN VAS 671 001... -
Page 19: Connect Diagnostic Cable
Connect the socket of the diagnostic cable to the plug of the traction battery’s battery management system. Connect the plug of the diagnostic cable to the socket on the vehicle. Lock the plug connection by twisting the socket housing. You can now bypass the pilot line. 32.VW.2210.1599_BA_V00_EN VAS 671 001... -
Page 20: Bypassing The Pilot Lines
Insert the bypass plug into the high-voltage socket of the connection to be bypassed (vehicle model: Volkswagen e-Golf). Make sure that the bypass plug is correctly aligned when inserting it. The pilot line is now bypassed. You can now connect the high-voltage test adapter. 32.VW.2210.1599_BA_V00_EN VAS 671 001... -
Page 21: Connect High-Voltage Test Adapter
Observe the safety instructions. Connect the socket to the plug on the traction battery. Lock this connection. Connect the high-voltage cable from the vehicle to the plug. Lock this connection. The high-voltage test adapter is now connected correctly. 32.VW.2210.1599_BA_V00_EN VAS 671 001... -
Page 22: Secure Cables With Velcro Strap
Press the end of the Velcro strap against the opposite side. You have now secured the cables. You can now perform measurements in accordance with the guided fault finding. 32.VW.2210.1599_BA_V00_EN VAS 671 001... -
Page 23: Detaching The Plug Connections
Make sure that the lever (red) is pulled out. Push the locking mechanism (gray) in and pull the plug connection completely apart. Swivel the clip (black) upward. This motion pushes the plug connection apart. The plug connection is now detached. 32.VW.2210.1599_BA_V00_EN VAS 671 001... -
Page 24: Detaching The Plug Connection On The Diagnostic Cable (21-Pin)
Detaching the plug connection on the diagnostic cable (14-pin) The plug connections have an automatic locking mechanism. To detach a plug connection: Push in and hold the catch. 2. Pull the plug connection apart. The plug connection is now detached. 32.VW.2210.1599_BA_V00_EN VAS 671 001... -
Page 25: Cleaning
Observe the safety instructions! National and local requirements for regular testing must be observed! Test the product for proper function at intervals of no more than 24 months. Contact the manufacturer to have a professional function test performed. 32.VW.2210.1599_BA_V00_EN VAS 671 001... -
Page 26: Help
Help Warranty CAR-connect GmbH grants a warranty period of 24 months from the date of purchase. The warranty is valid for demonstrable defects in functional material and workmanship. Further information on the warranty conditions can be found in the terms and conditions on the manufacturer’s website. - Page 27 Volkswagen Aktiengesellschaft K-GVO-LW Group After Sales – Group Service Literature and Systems Repair Shop Equipment PO box 011/4915 38442 Wolfsburg, Germany For internal use only Subject to technical changes Edition 09 / 2020 32.VW.2210.1599_BA_V00_EN VAS 671 001...
