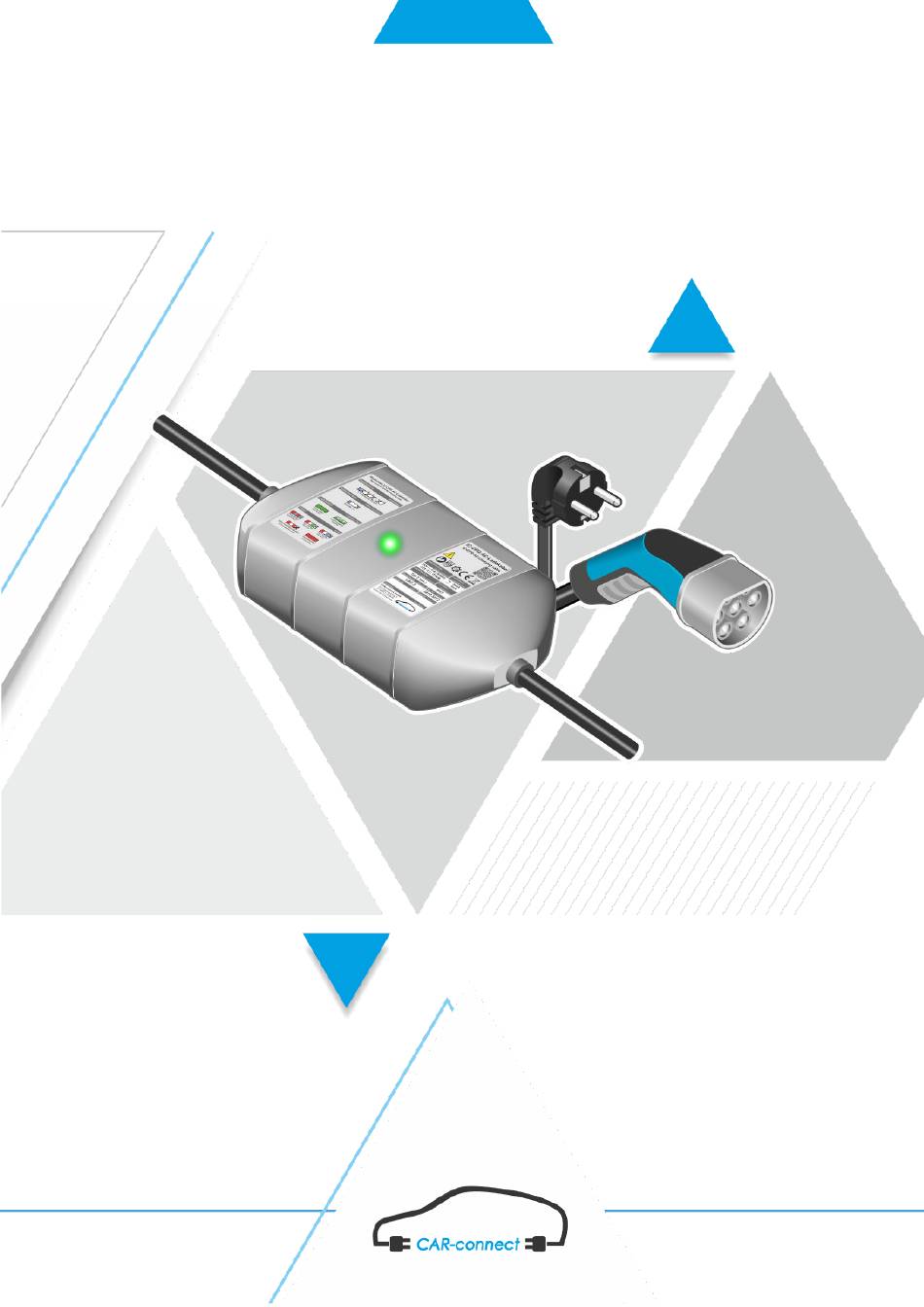

- Page 1 Operating manual IC-CPD AC charging cable LAC.3 42.CC.2210.3012_BA_V00_EN...
- Page 2 TRANSLATION OF THE ORIGINAL OPERATING MANUAL All rights reserved. All text, images and graphics are subject to copyright and other intellectual property laws. Copyright 2020 CAR-connect GmbH. Image sources Symbols for warnings, prohibitions, mandatory actions and standards are taken from publicly accessible sources, such as the Internet.
-
Page 3: Table Of Contents
Contents Contents Contents ..........................3 Introduction ....................... 5 Preliminary information ......................5 Validity of the declaration of conformity .................. 5 Manufacturer specifications ...................... 5 Safety.......................... 6 Warning levels ..........................6 Important safety instructions ..................... 7 Intended use ..........................8 Requirements for the target group .................... 8 Duties of the operator ......................... - Page 4 Contents Contents Operation ......................... 16 Checking the power supply connection ................. 16 Startup ............................17 Starting charging ........................18 Finishing charging ........................19 Troubleshooting ........................20 Cleaning ............................. 22 Disposal ............................. 22 Maintenance..........................22 Storage ............................22 Help .......................... 23 Warranty .............................
-
Page 5: Introduction
Our portfolio also includes measurement and diagnostic technology for the entire vehicle and battery analysis equipment. With extensive experience in software and hardware development, CAR-connect is your dependable partner at every production stage, from prototyping to series production. -
Page 6: Safety
• Note to the grid operator This operating manual is only valid for the following product: Item number 22103012 Designation IC-CPD AC charging cable LAC.3 Warning levels This chapter provides information about the warning levels used in this operating manual. -
Page 7: Important Safety Instructions
Safety Important safety instructions This chapter contains the safety instructions that must be observed when handling the product. DANGER Danger of fatal electric shock! The electrical voltage in the product is lethal and will cause death by electric shock! Liquids and moisture may cause short circuits! •... -
Page 8: Intended Use
Safety CAUTION Overheating! If excessive heat is produced, the product is automatically switched off! • Do not expose the product to direct sunlight! • Never operate the product in a closed container! • Observe the permitted ambient temperatures (see the “Technical data” section)! Intended use The AC charging cable is an in-cord control and protection device (“IC-CPD”... -
Page 9: Duties Of The Operator
Safety Duties of the operator The operator is responsible for ensuring that all staff working with the AC charging cable fulfill the requirements for the target group. Furthermore, the operator is responsible for ensuring the following: • The AC charging cable is always in perfect working order. •... -
Page 10: Product Description
Product description Product description Scope of delivery Immediately check the condition of the product and the completeness of the delivery. If anything is missing or defective, please contact the manufacturer immediately. (1) Carrying case (2) AC charging cable (3) Unpacking instructions (4) USB stick with operating manual 42.CC.2210.3012_BA_V00_EN... -
Page 11: Design
Product description Design Product design: (1) AC charging cable (2) Control unit (3) AC power supply cable (4) Power supply plug, CEE7/7, type E+F (EU) (5) AC charging plug, type 2 (IEC 62196-2) 42.CC.2210.3012_BA_V00_EN... -
Page 12: Symbols And Connections
Product description Symbols and connections The following symbols and information are shown on the product stickers: Symbol Meaning Electrical hazard! Observe the operating manual! The “AC” and “Phase (~)” markings indicate that the product must be connected only to alternating current sources. The disposal instruction prohibits disposal of the product with household waste. -
Page 13: Flash Codes" Sticker
Product description Information Meaning This area shows the year in which the product was manufactured. const. yr. This area shows the item description. description This area shows the charging port equipped on the product. charge connection (AC) This area shows the required specification for the power supply. mains connection This area shows the maximum permissible fault current. -
Page 14: Status Display
Product description Status display Immediately after connecting the AC charging cable to a power source, the product runs through a self-test. During this time, the status LED first flashes blue, then white. The number of white flashes indicates the product software version. The AC charging cable then indicates its operating state through a status LED. -
Page 15: Technical Data
Product description Technical data Rated data Values Manufacturer number 22103012 Power supply AC 208–240 V | 10 A | 50/60 Hz | 1P/N/PE | Plug: CEE7/7, type E+F (EU) connection Internal protective RCD, 30 mA AC, 6 mA DC devices Output voltage and AC 208–240 V, max. -
Page 16: Operation
Operation Operation This section provides information about the following activities: Checking the power supply connection • Startup • • Starting charging • Finishing charging • Cleaning Disposal • Maintenance • Checking the power supply connection WARNING Danger of fatal electric shock! The electrical voltage in electrical installations is lethal and can cause death by electric shock! Unprofessional and faulty electrical installations may result in short circuits and cable... -
Page 17: Startup
Operation (1) Miniature circuit breakers (2) Schuko socket (3) Residual-current device (RCD) Ensure that the miniature circuit breakers and residual-current device comply with the product specifications and the latest engineering standards (see the “Technical data” section). You cannot safely operate the product on this power supply until all the checks have been performed successfully. -
Page 18: Starting Charging
Operation Insert the power supply plug all the way into the Schuko socket. Once you have connected it to the power supply, the product automatically performs a self-test, during which all safety functions are checked for proper functioning. The status LED flashes as follows: During the self-test, the status LED flashes blue once and then white. -
Page 19: Finishing Charging
Operation Finishing charging WARNING Danger of fatal electric shock! Product components may produce sparks and electric arcs! • Never disconnect high-voltage plug connections while under load! • Finish the charging process before disconnecting the plug connections! CAUTION Risk of damage! Disconnecting the power supply connection while under load may cause damage to electronic components and increased wear. -
Page 20: Troubleshooting
Operation Disconnect the power supply plug from the three-phase socket. Ensure that the protective cover snaps back into place and securely closes off the three-phase socket. Pick up the control unit and wind up the cable. Ensure that the AC charging plug and power supply plug do not drag along the floor or fall to the floor. - Page 21 Operation Flashing code Meaning Corrective action Charging cable is Leave the AC charging cable to cool down for at least 15 overheating minutes. Reposition the AC charging cable if necessary. Observe the permitted ambient conditions (see the “Technical data” section) and the safety instructions (see the “Important safety instructions”...
-
Page 22: Cleaning
Operation Cleaning DANGER Danger of fatal electric shock! The electrical voltage in the product is lethal and will cause death by electric shock! • Disconnect the product from all power sources before cleaning the product! Follow the safety instructions! Use only a damp cloth to clean the product. Never use abrasive cleaning agents such as scouring agent, acids or alkali. -
Page 23: Help
Help Warranty CAR-connect GmbH grants a warranty period of 24 months from the date of purchase. The warranty is valid for demonstrable defects in functional material and workmanship. Further information on the warranty conditions can be found in the terms and conditions on the manufacturer’s website. - Page 24 CAR-connect GmbH Am Egelingsberg 8 38542 Leiferde, Germany Phone: +49 53 73 / 92 197 – 0 Fax: +49 53 73 / 92 197 – 88 info@car-connect.cc www.car-connect.cc Translation of the original operating manual. Subject to technical changes.
