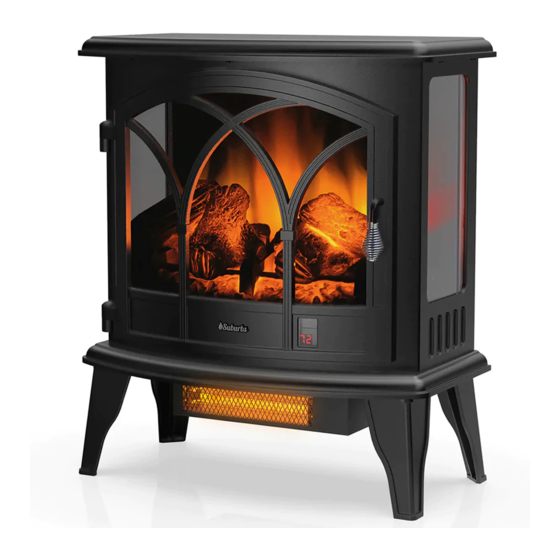

- Page 1 ELECTRIC FIREPLACE STOVE IMPORTANT READ ALL INSTRUCTIONS BEFORE USING YOUR ELECTRIC FIREPLACE. FAILURE TO FOLLOW INSTRUCTIONS MAY LEAD TO DAMAGE TO THE MACHINE OR PERSONAL INJURY. KEEP THIS USER MANUAL FOR FUTURE REFERENCE.
-
Page 2: Table Of Contents
................01 Warranty Registration ................... 02 Safety Instructions ..................03 Electrical Safety ................03 US 3-Pin Polarized Plug ................. 04 Technical Specifications ....................04 Dimensions ....................05 Installation ....................05 Parts List .................... 07 Control Panel ..............07 Using the Heater Control .............. -
Page 3: Safety Instructions
Warranty Registration Thank you for purchasing a TURBRO Electric Fireplace! We’re extremely happy that you have decided to join us. To thank you we’re giving you a warranty extension. All you need to do is register your new product at https://www.turbro.com/pages/warranty-registration. -
Page 4: Electrical Safety
Safety Instructions To prevent possible fires, do not block air intakes or exhausts in any manner. Do not use on soft surfaces, like a bed, where the opening may be blocked. The fireplace has hot, sparking, and arcing parts inside. Do not use it in areas where gasoline, paint, or flammable liquids are used or stored. -
Page 5: Technical Specifications
Technical Specifications Voltage 120V AC Frequency 60 HZ Amps 11.7 A Rating 1400 W Dimensions (H x W x D) 23 x 20 x 12 inches Heating Capacity 4780 BTU Peak Sound Level 37 dB Dimensions 23”... -
Page 6: Installation
INSTALLATION WARNINGS The fireplace is heavy and should be assembled near its desired location It is recommended that two people move the fully-assembled fireplace to prevent injury Do not install the unit on shelved, raised platforms, beds, blankets, pillows, etc. Keep combustible materials such as furniture, bedding, papers, clothes, and curtains at least 3 ft away from the fireplace. - Page 7 Parts List TOOLS REQUIRED Phillips-head screwdriver (not included) Tip: Use a 6-8 inch screwdriver to attach the legs. A long screwdriver will help you quickly finish assembly. BEFORE ASSEMBLY Open the unit and check carefully for visible damage. If you have any problems with installation, operation, missing parts, or other damage, please contact the TURBRO customer service team.
-
Page 8: Control Panel
Control Panel Press the main power button to turn on the fireplace. 1. LCD Screen: Displays information about the settings you are using. 2. Indicator Lights: There are 3 indicator lights below the LCD screen -- red, green, and blue. a. -
Page 9: Using The Flame Control
Control Panel Celsius To switch from Fahrenheit to Celsius (or vice versa) press and hold the main power button for 5 seconds. The LCD screen will flash 5 times to confirm your settings. USING THE FLAME CONTROL Press the flame control button to cycle through the flame brightness levels. The default flame brightness setting is L3 (high) after powering on. -
Page 10: Using The Remote Control
Control Panel USING THE REMOTE CONTROL The remote control can be used up to 13 feet (4 meters) away from the heater, so long as there are no obstructions between the remote control and the heater. REMOTE CONTROL BATTERIES Press and slide the battery cover on the rear of the remote and remove the cover. Insert two new AAA 1.5V batteries into the battery compartment. -
Page 11: Cleaning & Maintenance
FCC/IC Information Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1). -
Page 12: Warranty Information
Troubleshooting Problem Possible Cause(s) Corrective Action Power light is ON but the The fireplace is not operating correctly. Contact customer service. flame effect is not visible Excessive The fan is defective. noise when Contact customer service. the fireplace The fireplace assembly is defective. is operating Warranty Information TURBRO provides a 1-year limited warranty for TURBRO Heater, from the date of purchase, subject to the following conditions and...
