Revision: 08/2021
Copyright © 2016 – 2021
Campbell Scientific
CSL I.D - 1136

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CS225 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Campbell CS225

Summary of Contents for Campbell CS225

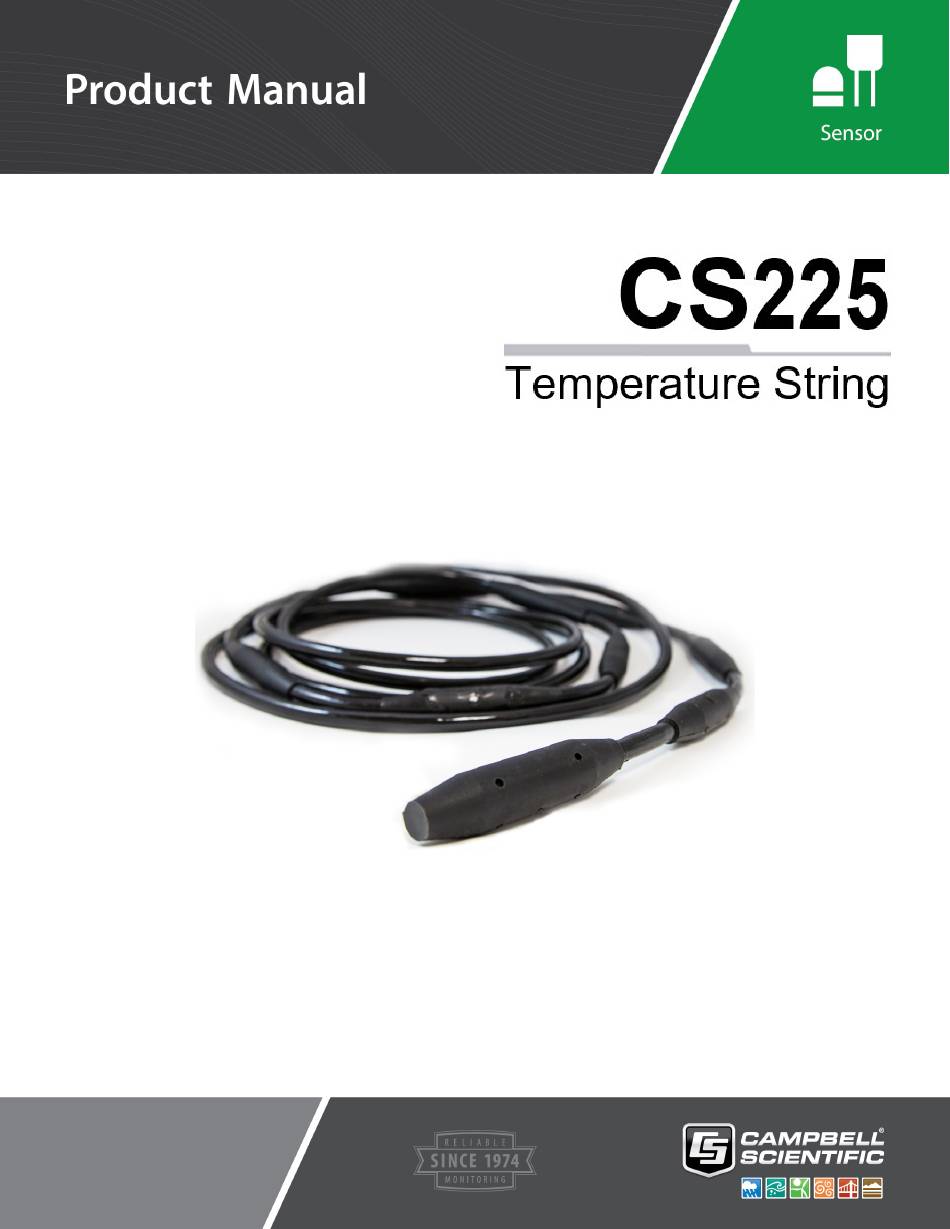

  • Page 1 Revision: 08/2021 Copyright © 2016 – 2021 Campbell Scientific CSL I.D - 1136...
  • Page 2 Quotations for repairs can be given on request. It is the policy of Campbell Scientific to protect the health of its employees and provide a safe working environment, in support of this policy a “Declaration of Hazardous Material and Decontamination”...
  • Page 3 About this manual Please note that this manual was originally produced by Campbell Scientific Inc. primarily for the North American market. Some spellings, weights and measures may reflect this origin. Some useful conversion factors: Area: 1 in (square inch) = 645 mm Mass: 1 oz.
  • Page 4 • Periodically (at least yearly) check electrical ground connections. WHILE EVERY ATTEMPT IS MADE TO EMBODY THE HIGHEST DEGREE OF SAFETY IN ALL CAMPBELL SCIENTIFIC PRODUCTS, THE CUSTOMER ASSUMES ALL RISK FROM ANY INJURY RESULTING FROM IMPROPER INSTALLATION, USE, OR MAINTENANCE OF TRIPODS, TOWERS, OR ATTACHMENTS TO TRIPODS AND TOWERS...

  • Page 5: Table Of Contents

    Table of contents 1. Introduction 2. Precautions 3. Initial inspection 4. QuickStart 5. Overview 6. Specifications 6.1 SGB3 3-line surge protector 7. Installation 7.1 Siting 7.2 Mounting 7.3 Wiring 7.4 Programming 7.4.1 SDI12Recorder() instruction 7.4.2 Slow sequence program instructions 8. Operation 8.1 Sensor measurements 8.1.1 SDI-12 addressing 8.1.2 Metadata...
  • Page 6 B.1.5 Change address command (aAb!) B.1.6 Start measurement commands (aM!) B.1.7 Stopping a measurement command B.1.8 Send data command (aD0! … aD9!) B.1.9 Continuous measurement command (aR0! … aR9!) B.2 SDI-12 transparent mode B.2.1 Changing an SDI-12 address B.3 References Table of Contents - ii...

  • Page 7: Introduction

    READ AND UNDERSTAND the Safety Although the CS225 is designed to be a rugged and reliable device for field use, care should be taken when handling or moving it to avoid damage. There are no user-serviceable parts and disassembling the device will void the warranty.

  • Page 8: Initial Inspection

    3. Initial inspection Upon receipt of the CS225, inspect the packaging and contents for damage. File damage claims with the shipping company. The model number and cable length are printed on a label at the connection end of the cable. Check this information against the shipping documents to ensure the expected product and cable length were received.
  • Page 9 3. In the Available Sensors and Devices box, type CS225 or locate the sensor in the Sensors > Temperature folder. Double-click CS225 SDI-12 Temperature Profiler. Type the correct Starting SDI-12 Address for the first sensor (SDI-12 addressing (p. 12)). Type the Number of Result Sensors.
  • Page 10 4. Click the Wiring tab to see how the sensor is to be wired to the data logger. Click OK after wiring the sensor. 5. Repeat steps 3 and 4 for other sensors. CS225 Temperature String...
  • Page 11 6. In Output Setup, type the scan rate, meaningful table names, and Data Output Storage Interval. 7. Select the measurement and its associated output option. CS225 Temperature String...

  • Page 12: Overview

    The CS225 Temperature String uses digital sensor technology allowing for a simple three-wire integration. The CS225 consists of an arrangement of over moulded temperature points mounted in a rugged steel reinforced cable. Each CS225 is manufactured to the client’s specific requirements.

  • Page 13: Specifications

    Maximum voltage: ±28 VDC / 20 VAC (L1, L2, L3 with respect to G terminals) Maximum current: 2 A per terminal, 4 A total (requires both ground terminals for return current) Maximum rated surge: 1200 A (8/20 μs) CS225 Temperature String...

  • Page 14: Installation

    (p. 2) for a Short Cut tutorial. 7.1 Siting Install the CS225 directly in the medium that is to be measured. The types of medium that can be measured are varied, including soils, roadbeds, and water. To make the most representative measurement, it is important that consistent contact be made between the temperature profiler and the medium.

  • Page 15: Wiring

    For the CR6 and CR1000X, triggering conflicts may occur when a companion terminal is used for a triggering instruction such as TimerInput(), PulseCount(), or WaitDigTrig(). For example, if the CS225 is connected to C3 on a CR1000X, C4 cannot be used in the TimerInput(), PulseCount(), or WaitDigTrig() instructions.

  • Page 16: Programming

    For example, if a CS225 consists of 17 or more temperature sensors, the time required to poll all sensors and receive data can be greater than 5 seconds based on the 300 ms execution time for the aR0! command.

  • Page 17: Operation

    Table 8-1 (p. 11). When power is supplied to the CS225, the internal electronics continuously measure temperature at a rate of approximately once per second. Every output measurement (aR0! or aM0!) obtained from the sensor is a running average of 10 consecutive readings. The accuracy specification is based on an average of 10 consecutive readings.

  • Page 18: Sdi-12 Addressing

    Each temperature sensor has a different default SDI-12 address. The starting addresses is 1 and coincides with the top temperature point. The last address coincides with the bottom sensor. If multiple SDI-12 sensors are connected to the data logger, Campbell Scientific recommends using separate terminals when possible. However, multiple SDI-12 sensors or multiple CS225 sensors can connect to the same data logger control or U terminal if they have different SDI-12 addresses.
  • Page 19 / 51 Q / 26 q / 52 R / 27 r / 53 S / 28 s / 54 T / 29 t / 55 U / 30 u / 56 V / 31 v / 57 CS225 Temperature String...

  • Page 20: Metadata

    The original SDI-12 standard specifies the maximum total cable length for the cable as being 61 m (200 ft), but we are able to exceed this limit by: CS225 Temperature String...

  • Page 21: Power Conservation

    U terminals 8.3 Power conservation The CS225 draws less than 1 mA of current per sensor between polling sessions from its 12 V supply. In many applications, this is minimal compared to overall system power use, so the sensor can be permanently powered to avoid the warm-up period.
  • Page 22 Use the aA{! command, where a is the affected address. This will reset the affected sensors to their factory configured address value. For example, if two sensors have address 2, sending 2A{! will reset both sensors to the original addresses. CS225 Temperature String...

  • Page 23: Appendix A. Importing Short Cut Code Into Crbasic Editor

    Block. This adds an apostrophe (') to the beginning of each of the highlighted lines, which instructs the data logger compiler to ignore those lines when compiling. The Comment Block feature is demonstrated at about 5:10 in the CRBasic | Features video CS225 Temperature String...

  • Page 24: Appendix B. Sdi-12 Sensor Support

    SDI-12, Serial Data Interface at 1200 baud, is a protocol developed to simplify sensor and data logger compatibility. Only three wires are necessary — serial data, ground, and 12 V. With unique addresses, multiple SDI-12 sensors can connect to a single SDI-12 terminal on a Campbell Scientific data logger.

  • Page 25: Acknowledge Active Command (A!)

    Table B-1: Campbell Scientific sensor SDI-12 command and response set Response Name Command Address Query a<CR><LF> aAb! Change Address b<CR><LF> Start Measurement atttn<CR><LF> aM1!...aM9! a<values><CR><LF> or aD0!...aD9! Send Data a<values><CRC><CR><LF> Information on each of these commands is given in the following sections.

  • Page 26: Start Verification Command (Av!)

    D commands. n = the number of values returned when one or more subsequent D commands are issued. For the aM! command, n is an integer from 0 to 9. CS225 Temperature String...

  • Page 27: Stopping A Measurement Command

    D command that follows an M! or MC! command. A sensor may return up to 75 characters of data in response to a D command that follows a C! or CC! command. Data values are separated by plus or minus signs. Command: aD0! (aD1! … aD9!) CS225 Temperature String...

  • Page 28: Continuous Measurement Command (Ar0

    Transparent mode is entered while the computer is communicating with the data logger through a terminal emulator program. It is accessed through Campbell Scientific data logger support software or other terminal emulator programs. Data logger keyboards and displays cannot be used.
  • Page 29 3. Under Device Type, type the data logger model and double-click on the model type. This example uses a CR1000X directly connected to the computer USB port. 4. Select the correct Communication Port and click Connect. 5. Click the Terminal tab. 6. Select All Caps Mode. CS225 Temperature String...
  • Page 30 In the following example, the sensor address is changed from 0 to B. 12. To exit SDI-12 transparent mode, click Close Terminal. NOTE: The transparent mode for the CR6, CR3000, CR800-series, CR300-series, and CR1000 data loggers is similar to that shown for the CR1000X. CS225 Temperature String...

  • Page 31: References

    B.3 References SDI-12 Support Group. SDI-12: A Serial-Digital Interface Standard for Microprocessor-Based Sensors – Version 1.4. River Heights, UT: SDI-12 Support Group, 2017. https://sdi- 12.org/specification CS225 Temperature String...
  • Page 32 Campbell Scientific Regional Offices Australia France Thailand Location: Garbutt, QLD Australia Location: Vincennes, France Location: Bangkok, Thailand Phone: 61.7.4401.7700 Phone: 0033.0.1.56.45.15.20 Phone: 66.2.719.3399 Email: info@campbellsci.com.au Email: info@campbellsci.fr Email: info@campbellsci.asia Website: www.campbellsci.com.au Website: www.campbellsci.fr Website: www.campbellsci.asia Brazil Germany Location: São Paulo, SP Brazil...
