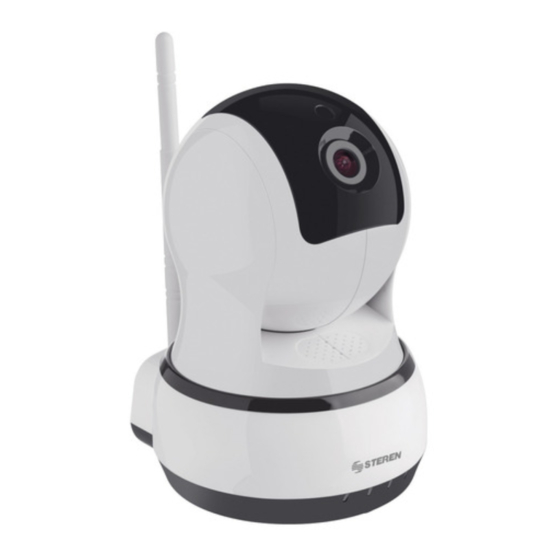

Steren CCTV-207 User Manual
Hide thumbs Also See for CCTV-207:
Table of Contents
  • Table of Contents
  • Contenido
  • Partes
  • Conexión Local
  • Instalación y Registro de la App
  • Configuración Inicial
  • Descripción General de las
  • Funciones de la App
    • Pantalla Principal
    • Pantalla de Monitoreo
    • Activar Notificaciones
    • Conexión Wi-Fi
    • Monitoreo Remoto
    • Grabación
    • Grabación Manual
    • Grabación Automática
    • Visualización de Archivos
  • Instalación

Advertisement

Available languages

Available languages

Quick Links

V1.0 / 1017v
Cámara Wi-Fi robotizada para
monitoreo por internet
Manual de instrucciones

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CCTV-207 and is the answer not in the manual?

Questions and answers

Summary of Contents for Steren CCTV-207

  • Page 1 V1.0 / 1017v Cámara Wi-Fi robotizada para monitoreo por internet Manual de instrucciones...
  • Page 2 Antes de utilizar su nuevo producto Steren, lea este instructivo para evitar cualquier mal funcionamiento. La información presentada sirve únicamente como refe- rencia sobre el producto. Debido a actualizaciones pueden existir diferencias. Por favor, consulte nuestra página web (www.steren.com) para obtener la versión más reciente del instructivo.
  • Page 3 • No exponga la cámara a condiciones de agua o humedad. • No la instale en intemperie. La operación de este equipo está sujeta a las siguien- tes dos condiciones: (1) es posible que este equipo o dispositivo no cause interferencia perjudicial y (2) este equipo o dispositivo debe aceptar cualquier interferen- cia, incluyendo la que pueda causar su operación no deseada.
  • Page 4: Table Of Contents

    ÍNDICE CONTENIDO..............5 PARTES................6 CONEXIÓN LOCAL ............7 INSTALACIÓN Y REGISTRO DE LA APP .......8 CONFIGURACIÓN INICIAL ..........9 DESCRIPCIÓN GENERAL DE LAS FUNCIONES DE LA APP..........10 Pantalla principal............10 Pantalla de monitoreo..........11 Activar notificaciones..........12 Conexión Wi-Fi............14 Monitoreo remoto............16 Grabación..............17 Grabación manual............17 Grabación automática..........18 Visualización de archivos..........19 INSTALACIÓN..............20...
  • Page 5: Contenido

    CONTENIDO Convertidor de voltaje Cámara Soporte Clip Taquetes y tornillos...
  • Page 6: Partes

    PARTES Sensor de movimiento Lente LED infrarrojos (visión nocturna) Micrófono Antena Entrada de alimentación Ranura para tarjeta micro SD Entrada RJ45 para cable de red...
  • Page 7: Conexión Local

    Botón de reinicio Entrada para soporte CONEXIÓN LOCAL Conecte la cámara a un módem mediante un cable de red.
  • Page 8: Instalación Y Registro De La App

    INSTALACIÓN Y REGISTRO DE LA APP Ingrese a la tienda de aplicaciones de su smartphone, para descargar e instalar la app iEye. Esta aplicación no es propiedad de Steren; la empresa no se hace respon- sable por su funcionamiento ni actualizaciones.
  • Page 9: Configuración Inicial

    CONFIGURACIÓN INICIAL 1. Ingrese con los datos 2. Una vez conectado el ca- de la cuenta registrada en ble de red, la cámara será iEye. detectada inmediatamente en la aplicación. Seleccione discover new device. 4. Asigne un nombre a la 3.
  • Page 10: Descripción General De Las

    DESCRIPCIÓN GENERAL DE LAS FUNCIONES DE LA APP Pantalla principal Cuando aparezca la siguiente pantalla con la leyenda Online, significa que la cámara está lista para utilizarse. Agregar dispositivo Monitoreo ¡Conexión! Menú de configuración Modificar contraseña Registro de grabaciones Activar/ Desactivar defensa...
  • Page 11: Pantalla De Monitoreo

    Pantalla de monitoreo Menú de configuración Regresar Definir posiciones de la cámara Siempre ajuste el ángulo de visión de la cámara mediante la aplica- ción. Si gira manualmente Deslice los dedos sobre la la cámara, podría dañar el sistema interno. pantalla para controlar los movimientos de la cámara Resolución...
  • Page 12: Activar Notificaciones

    Activar notificaciones 1. Ingrese al menú de con- figuración . Seleccione Alarm settings. 2. Active o desactive las opciones de su preferencia. Notificación en el dispositivo móvil Usuarios de la cámara (cuentas vinculadas) Notificaciones por correo electrónico Activar/Desactivar tono de alerta en la cámara Activar/Desactivar detección de movimiento...
  • Page 13 Si ha activado las notificaciones en el dispositivo móvil, recibirá alertas de acuerdo con la configuración seleccionada. Deslice para visualizar...
  • Page 14: Conexión Wi-Fi

    Conexión Wi-Fi 1. Con la cámara en línea, ingrese al menú de configuración 2. Seleccione la opción Network settings. 3. Seleccione.
  • Page 15 4. En la lista de redes Wi-Fi 5. Seleccione la opción Wi-Fi y presione Confirm. elija el nombre de la red, introduzca la contraseña y presione Confirm. Una vez configurada la conexión Wi-Fi podrá desco- nectar el cable de red de la cámara...
  • Page 16: Monitoreo Remoto

    Monitoreo remoto Cuando se encuentre fuera de la red local… 1. Asegúrese de que el smartphone tenga conexión a internet. 2. Abra la aplicación y espere unos segundos hasta que la cámara aparezca en línea. 3. Selecciónela para visualizar.
  • Page 17: Grabación

    Grabación Grabación manual Presione para iniciar y detener una grabación. Los archivos de video se guardarán en el dispositivo móvil.
  • Page 18: Grabación Automática

    Grabación automática Para esta función es necesario haber insertado una tarjeta de memoria micro SD Configure de la siguiente manera para que la cámara comience a grabar automáticamente en cuanto detecte movimiento o por programación de tiempo. Duración de las grabaciones Hora de inicio y término de la grabación...
  • Page 19: Visualización De Archivos

    Visualización de archivos Ingrese al Registro de grabaciones. Elija un video de la lista para reproducirlo. Videos recientes Todos los videos Videos de los últimos tres días Buscar video También puede ingresar al submenú Image para ver los videos y las capturas almacenadas en la memoria del teléfono.
  • Page 20: Instalación

    INSTALACIÓN...
  • Page 21 ESPECIFICACIONES Alimentación: 5 V - - - 2 A Iluminación mínima: 0,5 lux Compresión de video: H.264 720 p Protocolo: TCP/IP, HTTP, UDP, SMTP, DHCP, PPPoE, DDNS, UPnP Red inalámbrica: 802.11b/g/n Capacidad máxima de tarjeta micro SD: 64 GB Convertidor CA/CC Alimentación: 100 - 240 V ~ 50 - 60 Hz 0,5 A Salida: 5 V - - - 2 A...
  • Page 22 1.- Para hacer efectiva la garantía, presente esta póliza y el producto, en donde fue adquirido o en Electrónica Steren S.A. de C.V. 2.- Electrónica Steren S.A de C.V. se compromete a reparar el producto en caso de estar defectuoso sin ningún cargo al consumidor. Los gastos de transportación serán cubiertos por el proveedor.
  • Page 23 V0.0 / 1017v Wi-Fi camera User Manual...
  • Page 24 The info in this manual is shown as reference. Due to updates can exist differences. Consult our website www.steren.com to obtain the current version of this manual. CAUTIONS • This product is NOT a toy; keep it away from children.
  • Page 25 • Don’t use or store the device in places where exist water or splashes. • Do not install the camera in outdoor. The operation of this equipment is subject to the fo- llowing two conditions: (1) it is possible that this equi- pment or device may not cause harmful interference and (2) this equipment or device must accept any in- terference, including interference that may cause its...
  • Page 26 INDEX CONTENT...............27 PARTS................28 LOCAL CONNECTION..........29 APP INSTALLATION AND REGISTER......30 INITIAL SETTINGS............31 GENERAL DESCRIPTION AND APP FUNCTIONS..32 Main Screen..............32 Monitoring screen............33 Activate notifications..........34 Wi-Fi connection............36 Remote monitoring.............38 Recording..............39 Manual recording............39 Automatic recording..........40 File preview..............41 INSTALLATION..............42...
  • Page 27 CONTENT AC Adapter Camera Support Clip Anchors and screws...
  • Page 28 PARTS Move sensor Lens Infrarred LED (night vision) Microphone Antennas Power input Miicro SD card slot RJ45 port...
  • Page 29 Restart button Support hole LOCAL CONNECTION Connect the camera to a modem with a network cable.
  • Page 30 APP INSTALLATION AND REGISTER Enter to apps store of your mobile device, dowload and install the iEye app. This app is not Steren’s property; the company is not responsible by their working or updates. To make this manual it was used an iOS device and the iEye app.
  • Page 31 INITIAL SETTINGS 1. Enter the info registered 2. Once connected the in the iEye app. network cable, the camera will be detected immedia- tely. Select discover new device. 4. Assign a name to the 3. Select. camera and enter the password 123456.
  • Page 32 GENERAL DESCRIPTION AND APP FUNCTIONS Main Screen When the next screen appears with the Online message, that’s means what the camera is ready to use. Add device Monitoring Connection! Settings menu Password edit History record Activate/ Deactivate defense...
  • Page 33 Monitoring screen Settings menu Return Camera’s positions Always adjust the vision angle via app. If you turn the camera ma- nually may cause damage Slide the fingers over the in the internal system. screen to control the move- ments of the camera Resolution Full screen Acvtivate/Deactivate...
  • Page 34 Activate notifications 1. Enter to settings menu Select Alarm settings. 2. Activate or deactivate the option that you want. Notification in the mobile Camera users (linked accounts) Notifications in the mail Activate/deactivate alarm tone Activate/deactivate movement sensor Movement sensibility...
  • Page 35 If you had activate the notifications in the mobile device, you will receive alerts according with the selected setting. Slide to preview...
  • Page 36 Wi-Fi connection 1. With the camera online, enter to settings menu 2. Select Network settings. 3. Select.
  • Page 37 5. Select the Wi-Fi option 4. In the Wi-Fi network list and press Confirm. choose the name of the ne- twork, enter the password and press Confirm. Once configure the Wi-fi connection you can discon- nect the network cable from the camera...
  • Page 38 Remote monitoring When you are out of local network… 1. Be sure that the Smartphone have internet connection. 2. Open the app and wait for a few seconds until the camera is online. 3. Select it to visualizing.
  • Page 39 Recording Manual recording Press to start or stop a recording. The files will be saved in the smartphone.
  • Page 40 Automatic recording For this function is necessary has installed the memory card Configure the camera for what to record automatically, when detects move or for time program. Time of recordings Start hour and end of the recording...
  • Page 41 File preview Enter to Recordings histrory. Choose a video and play it. Recent videos All videos Last trhee videos Search video Also you can enter in the submenu Image to watch the stored videos and pho- tos in the phone memory.
  • Page 42 INSTALLATION...
  • Page 43 SPECIFICATIONS Input: 5 V - - - 2 A Minimum light: 0.5 lux Video compression: H.264 720 p Protocol: TCP/IP, HTTP, UDP, SMTP, DHCP, PPPoE, DDNS, UPnP Wireless network: 802.11b/g/n Maximum SD card capacity: 64 GB AC/DC power converter Input: 100 - 240 V ~ 50 - 60 Hz 0.5 A Output: 5 V - - - 2 A Specifications may change without previous notice...
  • Page 44 Product: WiFi camera Number part: CCTV-207 Brand: Steren This Steren product is warranted under normal usage against defects in workmanship and materials to the original purchaser for one year and three months in the battery from the date of purchase.
