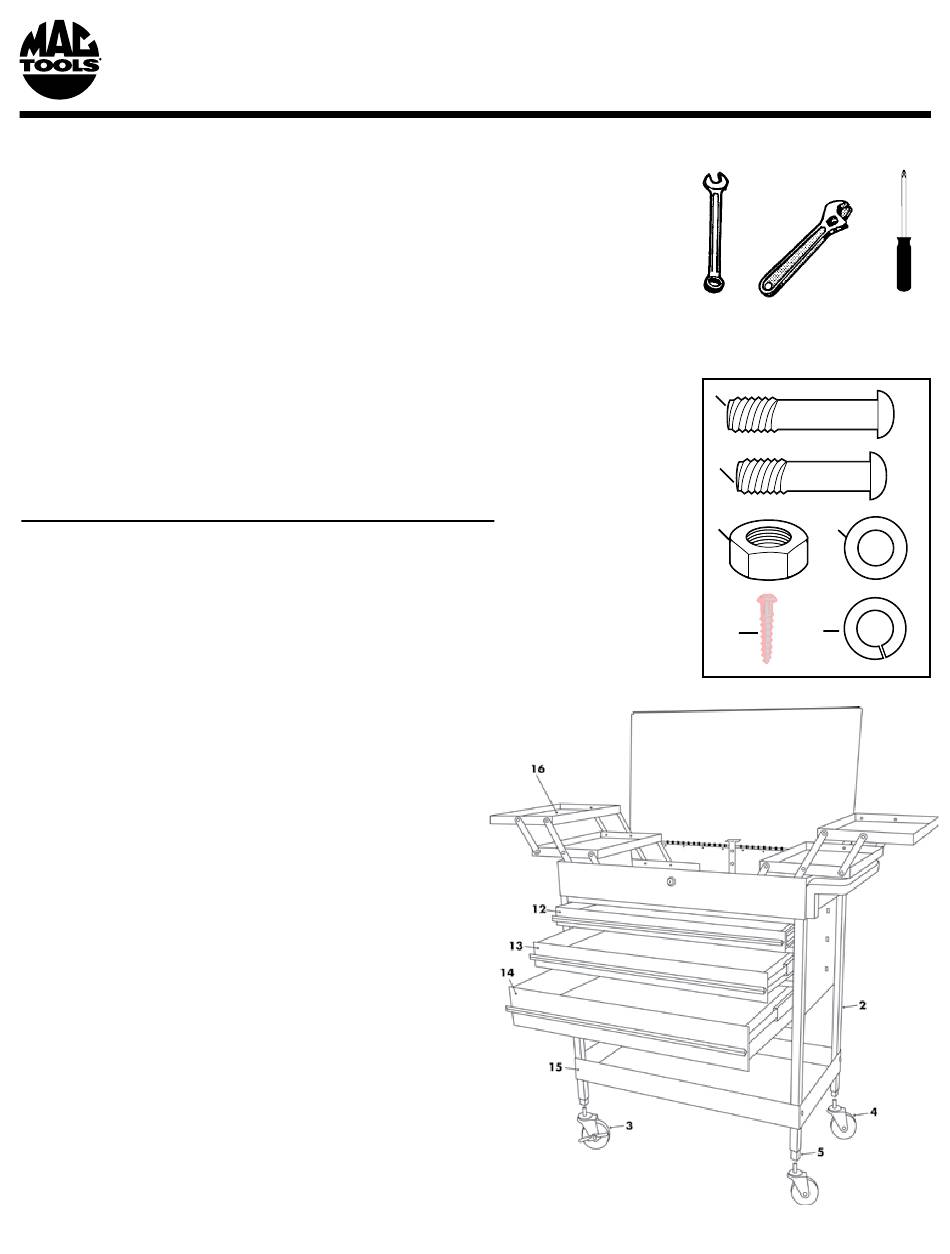

ASSEMBLY INSTRUCTIONS
Step 1
Place the Locking Top and Drawer Unit (#1) on its back. Carefully open the Locking
Top and lay it back against the ground.
Step 2
Slide chrome legs (#2) into square holes in corners of Locking Top (#1) until bolt holes
are aligned at top of legs.
Step 3
Determine on which side of the cart the handle will be mounted. Then, insert two long
bolts (#7) with two flat washers (#10) into the aligned holes in handle, locking top and
legs. Fasten nuts (#9) using flat washers (#10) and lock washers (#11). Repeat this
procedure for other corners using short bolts (#8).
Step 4
Slide bottom tray (#15) onto legs and fasten as in Step 3.
Step 5
Insert casters (#3, #4) into the hole of plastic inserts (#5).
NOTE: Insert the two locking wheels (#3) at the same end of the cart.
Step 6
Return cart to upright position.
Step 7
Using the screws (#16) provided, install drawer handles by aligning pre-drilled holes in
drawers with slots in handle. Tighten all screws securely.
PARTS LIST
Item
Part
No.
No.
No.
Req'd
2
RSSC7L
2
3
RS5LC
2
4
RS5NLC
2
5
SCPP1
1
6
RS150UCBK
1
12
MBD150UCB-1
1
MBD150UCB-1BK
MBD150UCB-1BL
MBD150UCB-1YE
13
MBD150UCB-2
1
MBD150UCB-2BK
MBD150UCB-2BL
MBD150UCB-2YE
14
MBD150UCB-3
1
MBD150UCB-3BK
MBD150UCB-3BL
MBD150UCB-3YE
15
RS8007
1
RS8007BK
RS8007BL3
RS8007Y
16
RS150UCTA
2
RS150UCTABK
RS150UCTABL
RS150UCTAYE
Also Available:
RS8006HDL
Drawer Handle (for Red, Black or Blue Cart)
RS8006HDLB
Black Drawer Handle for Yellow Cart
RS8008LK
Lock with Two Keys
RSRBSLIDEC2
Clip-On Roller Bearing Slides (One Pair)
RS150UCSD
Safety Device
MB150UC
Description
Extra Long Chrome Leg/ea.
Locking Caster/ea.
Non-Locking Caster/ea.
Set of 4 Plastic Inserts
Bolt Kit (Incl. #7, 8, 9, 10, 11, 16)
2-1/4" Replacement Drawer #1* (Red)
2-1/4" Replacement Drawer #1* (Black)
2-1/4" Replacement Drawer #1* (Blue)
2-1/4" Replacement Drawer #1* (Yellow)
3" Replacement Drawer #2* (Red)
3" Replacement Drawer #2* (Black)
3" Replacement Drawer #2* (Blue)
3" Replacement Drawer #2* (Yellow)
4-1/2" Replacement Drawer #3* (Red)
4-1/2" Replacement Drawer #3* (Black)
4-1/2" Replacement Drawer #3* (Blue)
4-1/2" Replacement Drawer #3* (Yellow)
Replacement Tray (Red)
Replacement Tray (Black)
Replacement Tray (Blue)
Replacement Tray (Yellow)
Replacement Tray Assembly (Red)
Replacement Tray Assembly (Black)
Replacement Tray Assembly (Blue)
Replacement Tray Assembly (Yellow)
* See other side for
operation of safety device.
RS150UCSD
1
MB150UC
Ultimate Cart
Tools Needed for
Assembly:
10 mm
or
Bolt Kit (#6) included for
attaching legs and tray to
MB150UC cart:
7
8mm x 70mm
8
8mm x 46mm
9
10
(16)
(8)
11
16
(12)
#3
Phillips
(2)
(6)
(8)
Rev. 01/09/08
Advertisement
Related Manuals for MAG TOOLS MB150UC
Summary of Contents for MAG TOOLS MB150UC
- Page 1 MB150UC Ultimate Cart ASSEMBLY INSTRUCTIONS Tools Needed for Assembly: Step 1 Place the Locking Top and Drawer Unit (#1) on its back. Carefully open the Locking Top and lay it back against the ground. 10 mm Step 2 Slide chrome legs (#2) into square holes in corners of Locking Top (#1) until bolt holes are aligned at top of legs. or Step 3 Determine on which side of the cart the handle will be mounted. Then, insert two long bolts (#7) with two flat washers (#10) into the aligned holes in handle, locking top and Phillips legs. Fasten nuts (#9) using flat washers (#10) and lock washers (#11). Repeat this procedure for other corners using short bolts (#8). Bolt Kit (#6) included for Step 4 Slide bottom tray (#15) onto legs and fasten as in Step 3. attaching legs and tray to Step 5 Insert casters (#3, #4) into the hole of plastic inserts (#5). MB150UC cart: NOTE: Insert the two locking wheels (#3) at the same end of the cart. Step 6 Return cart to upright position. Step 7 Using the screws (#16) provided, install drawer handles by aligning pre-drilled holes in drawers with slots in handle. Tighten all screws securely.
- Page 2 OPERATION OF SAFETY DEVICE When the lid is fully opened, the safety device will automatically engage to prevent accidental closing. To disengage safety device, first ensure both folding side step trays are completely stowed inside box and all drawers are completely closed. Then, push the bottom portion of the device until it aligns with the open slot and slightly close the lid. Now, once hands and objects are cleared, the lid can be lowered to its fully closed and locked position. NOTE: Do not attempt to close the box lid without depressing the safety device. Permanent damage to the lid will result! MB150UC Rev. 01/09/08...
