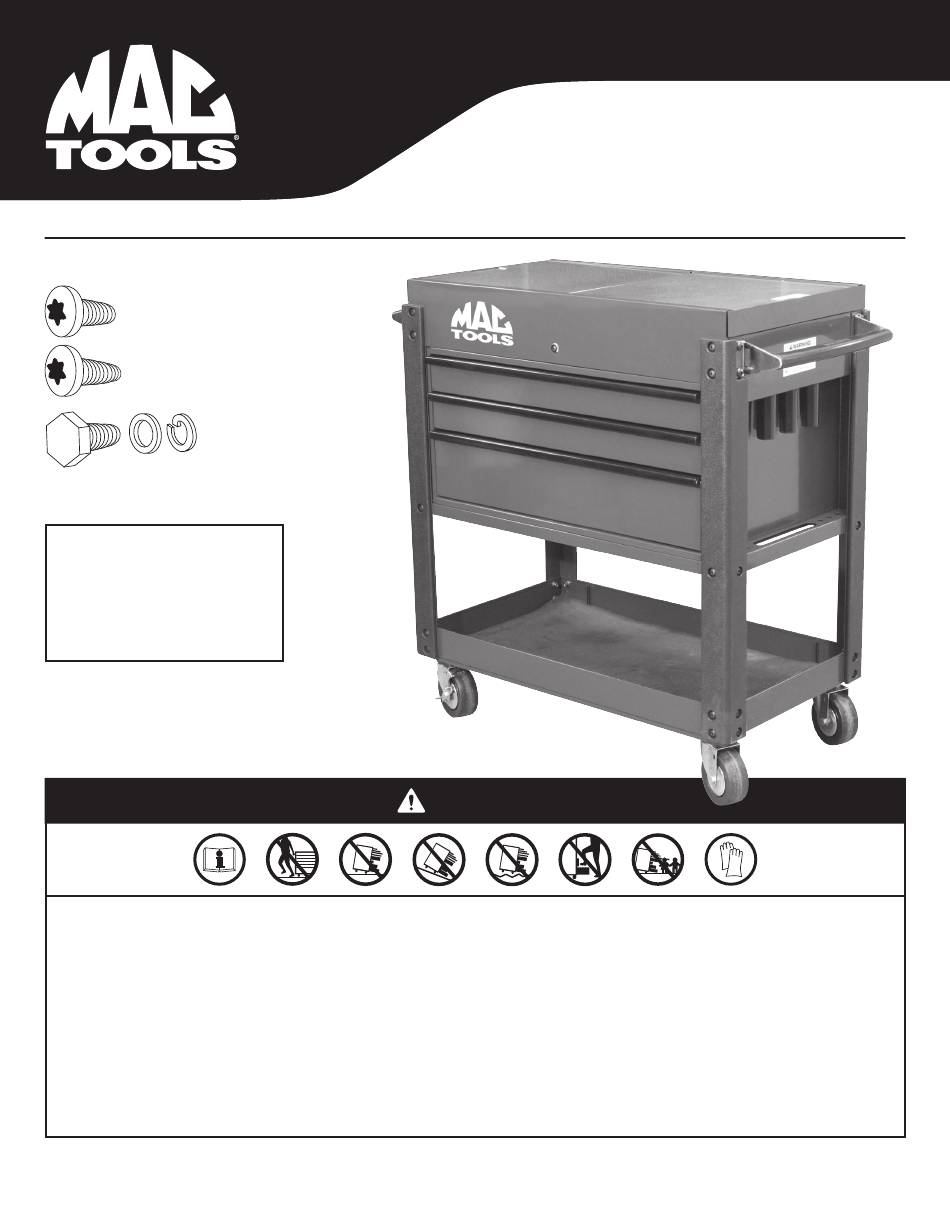

OWNER'S MANUAL
HARDWARE SPECIFICATIONS
T40 Torx Bolt (M8) 32 pcs. (1A)
T40 Torx Bolt (M8) 8pcs. (1B)
Hex Bolt, Washer, and Lock
Washer (M8 x 20) 16 pcs. (8)
TOOLS NEEDED FOR ASSEMBLy:
• T40 Torx Driver or Torx Key
• 13mm Combination Wrench
• Socket or Universal Socket
• 4" Extension and Ratchet
• Read and follow all instructions in User's Manual
• Do not load carts beyond rated capacity:
Maximum Total Net Load . . . . . . . . . . . . . . . . . . . 500-Lbs .
Top and Bottom Shelf . . . . . . . . . . . . . . . . . . 150-Lbs . each
Top Two Drawers . . . . . . . . . . . . . . . . . . . . . 100-Lbs . each
Bottom Drawer . . . . . . . . . . . . . . . . . . . . . . . . . . . 200-Lbs .
Sliding Work Surface (closed) . . . . . . . . . . . . . . . 200-Lbs .
Sliding Work Surface (fully extended) . . . . . . . . . . . 50-Lbs .
PLEASE NOTE: Loading cart beyond rated capacity may cause
structural damage to the cart as well as personal and /or
property damage . Please educate your customers to the
"dangers of overloading"
MB197UC, -BK, -BL, -FBK, -GRAY, -LG, -OR, -WT, -YE
WARNING
• Lock lid and drawers before moving • Apply brake on locking
casters anytime cart is in place • Do not pull cart . Push from
handle on end to move • Units can tip or fall causing damage or
personal injury • Cart is designed to roll easily on flat surfaces
and should not be used on uneven or inclined surfaces • Do not
open more than one loaded drawer at a time • Do not stand on
or step in drawers • Keep children away from unit • Wear gloves
when lifting edges • This product may contain one or more
chemicals known to the State of California to cause cancer
and birth defects or other reproductive harm . Wash hands
thoroughly after handling • Failure to heed these warnings may
result in personal injury and/or property damage
MB197UC, -BK, -BL, -FBK,
-GRAY, -LG, -OR, -WT, -YE
3 DRAWER
DELUXE UTILITY CART
© 2015 Mac Tools
Rev. 12/22/15
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for MAG TOOLS MB197UC
Summary of Contents for MAG TOOLS MB197UC
- Page 1 . Please educate your customers to the thoroughly after handling • Failure to heed these warnings may "dangers of overloading" result in personal injury and/or property damage © 2015 Mac Tools MB197UC, -BK, -BL, -FBK, -GRAY, -LG, -OR, -WT, -YE Rev. 12/22/15...
- Page 2 13mm socket or 13mm combination wrench for the bolt head. (Note: Bolt head, washer and lock washer should be on the inside of the bottom shelf.) MB197UC, -BK, -BL, -FBK, -GRAY, -LG, -OR, -WT, -YE Rev. 12/22/15...
-
Page 3: Parts Diagram
Unscrew the two screws that are holding the Lock/Unlock slide in place. Once the screws are removed simply place the latch back onto the slide and tighten the two screws back down. MB197UC, -BK, -BL, -FBK, -GRAY, -LG, -OR, -WT, -YE Rev. 12/22/15... -
Page 4: Parts Drawing
MB197UC, -BK, -BL, -FBK, -GRAY, -LG, -OR, -WT, -YE 3 DRAWER DELUXE UTILITY CART PARTS DRAWING 14 12 16 17 MB197UC, -BK, -BL, -FBK, -GRAY, -LG, -OR, -WT, -YE Rev. 12/22/15... -
Page 5: Parts List
MBS197UC Red Bottom Shelf ** If serial number of cart begins with "F", order RS197UCDH for chrome drawer handle MBS197UCBK Black Bottom Shelf and RS197UCDHBK for black drawer handle. MB197UC, -BK, -BL, -FBK, -GRAY, -LG, -OR, -WT, -YE Rev. 12/22/15...
