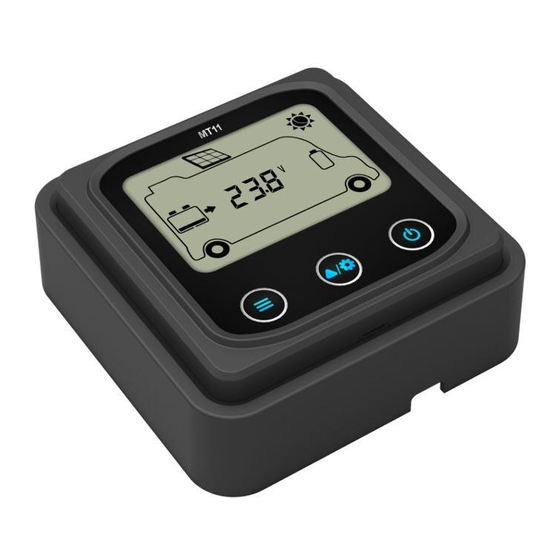

SolarV EPEVER MT11 Instruction Manual
Remote meter
Hide thumbs
1
2
Table Of Contents
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
page
of
17
Go
/
17
Contents
Table of Contents
Bookmarks
Table of Contents
Table of Contents
1 Overview
2 Product Classification
3 Installation
Base of MT11 (Optional Accessory)
Wall Installation Steps
Surface Mounting Steps
4 Product Features
Front View
Rear View
5 Display and Operation
LCD Display
Auto Global View Mode
Temperature Units
Clear the Generated Energy
Battery Type
Fault Indication
6 Technical Specifications
Advertisement
Quick Links
Download this manual
INSTRUCTION MANUAL
Remote Meter: MT11
Table of
Contents
Previous
Page
Next
Page
1
2
3
4
5
Advertisement
Table of Contents
Need help?
Do you have a question about the EPEVER MT11 and is the answer not in the manual?
Ask a question
Questions and answers
Related Manuals for SolarV EPEVER MT11
Measuring Instruments SolarV EPEVER MT91 User Manual
Remote meter (22 pages)
Summary of Contents for SolarV EPEVER MT11

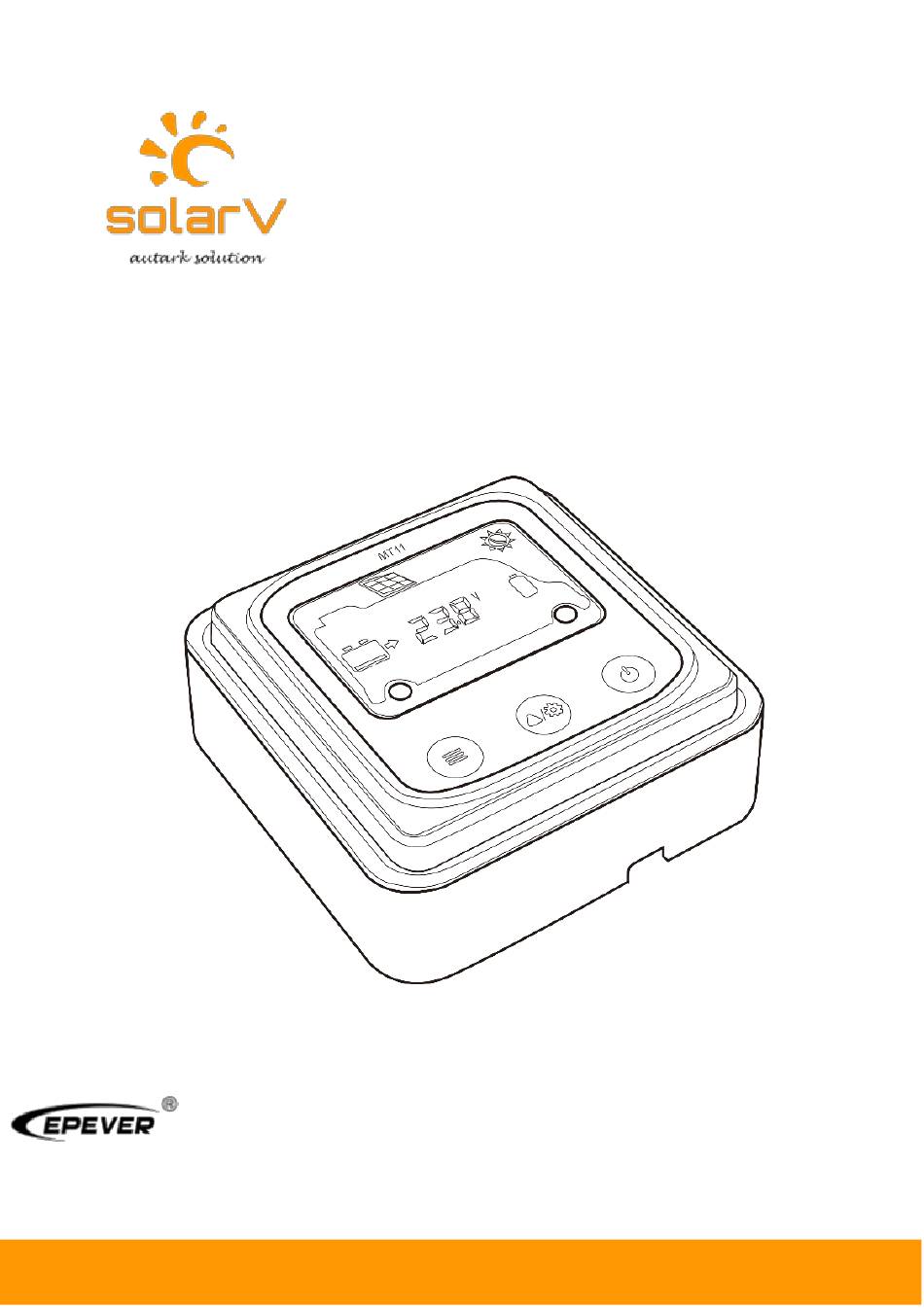

Page 1
INSTRUCTION MANUAL Remote Meter: MT11...
Page 2
Recommendations ➢ The MT11 is only allowed to connect with DR-N series charge controller. Please confirm before purchase and installation. ➢ Please do not install MT11 in a situation with strong electromagnetic interference. www.solarv.de Copyright © 2021 SolarV GmbH...
Page 3: Table Of Contents
5.1LCD display ................11 5.2 Auto global view mode ............12 5.3 Temperature units ..............14 5.4 Clear the generated energy ............ 14 5.5 Battery type ................15 5.6 Fault indication ............... 19 6.Technical Specifications ..... 20 www.solarv.de Copyright © 2021 SolarV GmbH...
Page 4: Overview
It can browse the controller’s parameters, set the battery type and temperature unit, and clean the generated energy. ➢ Real-time display of failure information of the connected devices. ➢ Longer communication distance based on RS485. www.solarv.de Copyright © 2021 SolarV GmbH...
Page 5: Product Classification
4) MT11(Do not include the communication cable) ➢ Remote meter MT11 ➢ 1.5m communication cable (Model: CC-RS485-RS485-3.81-4P-150) ➢ Do not include Base of MT11 NOTE: The user can purchase the product according to the requirement. www.solarv.de Copyright © 2021 SolarV GmbH...
Page 6: Installation
114 x 114 x 44.41mm Mounting dimension 88.6 x 88.6mm Φ5 Terminal 3.2 Wall installation steps Step1: Locate and drill screw holes based on the Frame Mounting dimension of the base, and erect the plastic expansion bolts. www.solarv.de Copyright © 2021 SolarV GmbH...
Page 7: Surface Mounting Steps
Step2: Use four PA4.2×32 self-tapping screws to fix the Frame. Step3: Remove the decorative shell. Step4: Use four M4×8 pan head screws to mount MT11 Surface on the Frame. Step5: Install the decorative shell. 3.3 Surface mounting steps www.solarv.de Copyright © 2021 SolarV GmbH...
Page 8
Step4: Install the decorative shell NOTE: Take full consideration of the plugging/unplugging space of the communication cable and the length of the cable during installation to see if they are appropriate. www.solarv.de Copyright © 2021 SolarV GmbH...
Page 9: Product Features
Browse the start battery parameters Press the button and hold Temperature units on 5s Battery type Press the button The meter is powered ON Press the button and hold The meter is powered OFF on 5s www.solarv.de Copyright © 2021 SolarV GmbH...
Page 10: Rear View
4.2 Rear View RS485 communication port It is used to connect the controller which powers the MT11. Communication cable’s models CC-RS485-RS485-3.81-4P-150(Included) CC-RS485-RS485-3.81-4P-1000(Optional) CC-RS485-RS485-3.81-4P-2000(Optional) Pins definition Definition DC5V RS-485-B RS-485-A www.solarv.de Copyright © 2021 SolarV GmbH...
Page 11: Display And Operation
BATT1battery capacity BATT2battery capacity level①62%~86% level①62%~86% BATT1battery capacity BATT2battery capacity level① 87%~100% level① 87%~100% PV array Night BATT1 charging icon Display the parameters BATT2 charging icon of PV Display the parameters BATT1temperature of BATT1 parameters www.solarv.de Copyright © 2021 SolarV GmbH...
Page 12: Auto Global View Mode
5.2 Auto Global View Mode Operation: Step1: Press the button, appears. Step2: Press the button, select the Echo Loop:PV voltage —PV current —PV power—Battery power—BATT1 voltage— BATT1 current—Max. BATT1 voltage—Min.BATT1 voltage—BATT1 temperature— www.solarv.de Copyright © 2021 SolarV GmbH...
Page 13: Temperature Units
Step2: Press the button to select the temperature unit. Step3: Press the button to set successfully. 5.4 Clear the generated energy Press the button and hold on 5s to clear the generated energy. www.solarv.de Copyright © 2021 SolarV GmbH...
Page 14: Battery Type
Charging Limit Voltage 15.0V 15.0V 15.0V 9~17V Over Voltage Reconnect Voltage 15.0V 15.0V 15.0V 9~17V Equalize Charging Voltage 14.6V —— 14.8V 9~17V Boost Charging Voltage 14.4V 14.2V 14.6V 9~17V Float Charging Voltage 13.8V 13.8V 13.8V 9~17V www.solarv.de Copyright © 2021 SolarV GmbH...
Page 15
Under Volt. Warning Voltage 12.0V 10.5V 9~17V Low Volt. Disconnect Voltage 11.0V 9.3V 9~17V Discharging LimitVoltage 10.8V 9.3V 9~17V The following rules must be observed when modifying the parameter values in User for the lithium battery. www.solarv.de Copyright © 2021 SolarV GmbH...
Page 16: Fault Indication
WARNING: The required accuracy of BMS shall be at least 0.2V. If the deviation is higher than 0.2V, the manufacturer will assume no liability for any system malfunction caused by this. 6.6 Fault indication ① No alarm for limited voltage fault when using Lithium batteries. www.solarv.de Copyright © 2021 SolarV GmbH...
Page 17: Technical Specifications
Communication way RS485 Communication port 3.81-4P RS485 cable CC-RS485-RS485-3.81-4P- 150(1.5m) CC-RS485-RS485- 3.81-4P-500(5m) CC-RS485- RS485-3.81-4P-1000(10m) Environment temperature -20℃~+70℃ Storage temperature range -20℃~+70℃ Enclosure IP20 Dimension 98.4×98.4mm Base cover dimension 114×114mm Weight 0.11kg SolarV GmbH www.solarv.de info@solarv.de www.solarv.de Copyright © 2021 SolarV GmbH...
