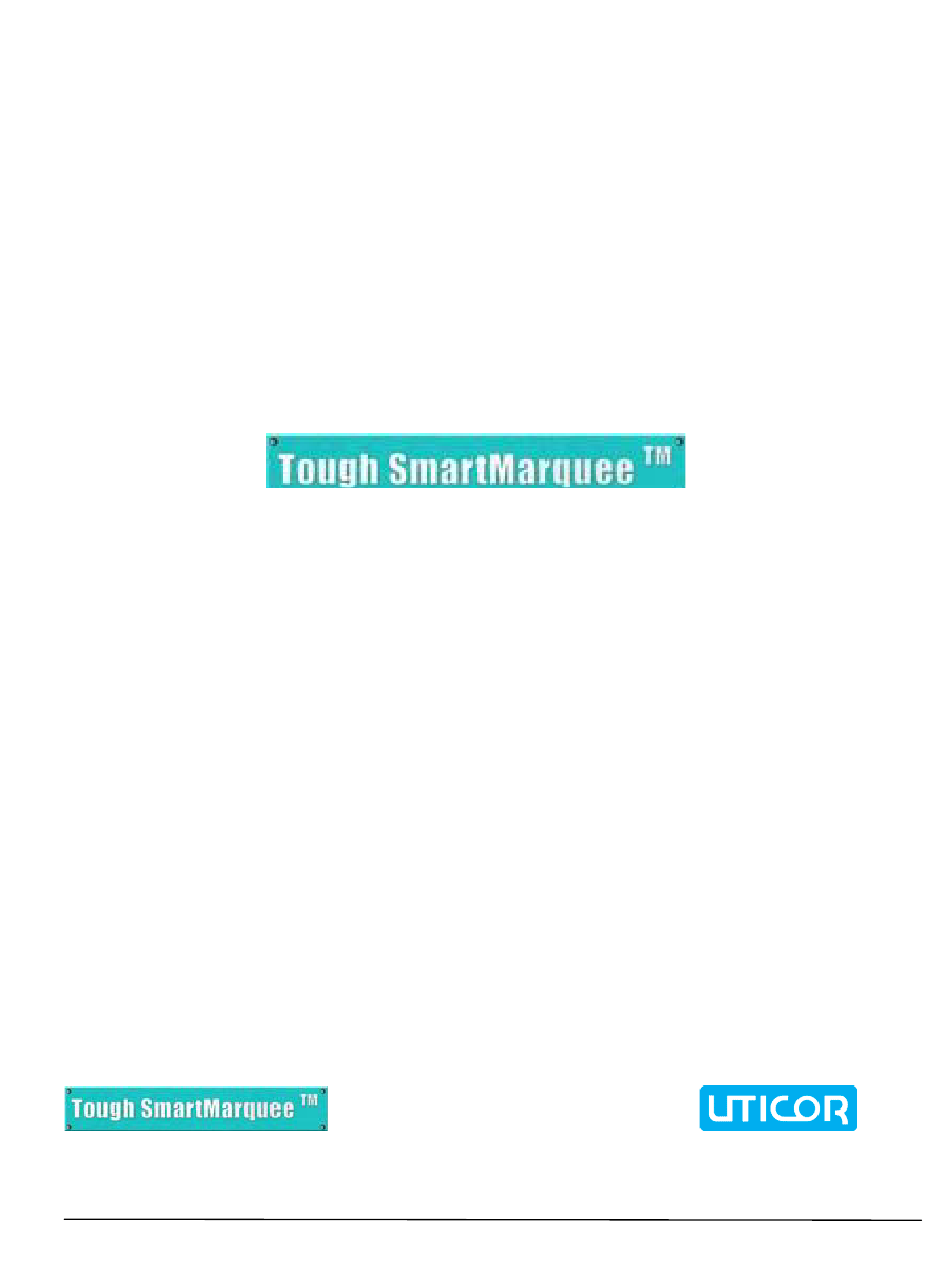

April 2010
Getting Started
MANUFACTURED and MARKETED
by
UTICOR TECHNOLOGY, L. P.
4140 Utica Ridge Rd. • Bettendorf, IA 52722-1327
Phone: 1-563-359-7501 • Fax: 1-563-359-9094 •
www.UTICOR.net

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ToughSmartMarquee and is the answer not in the manual?

Questions and answers

Related Manuals for UTICOR ToughSmartMarquee

Summary of Contents for UTICOR ToughSmartMarquee

  • Page 1 April 2010 Getting Started MANUFACTURED and MARKETED UTICOR TECHNOLOGY, L. P. 4140 Utica Ridge Rd. • Bettendorf, IA 52722-1327 Phone: 1-563-359-7501 • Fax: 1-563-359-9094 • www.UTICOR.net...
  • Page 2 This publication may contain references to products produced and/or offered by other companies. The product and company names may be trademarked and are the sole property of their respective owners. UTICOR Technology, L. P. disclaims any proprietary interest in the marks and names of others. ToughSmartMarquee Getting Started Guide ©...
  • Page 3 Power and how to interface Marquee for Serial and Ethernet communication. Chapter 3: Programming the Marquee Describes how to configure various PLC tag-dependent Messages (in the Programming software) to be sent to the ToughSmartMarquee. These messages are stored in the Marquee itself. Document Version History Date...

  • Page 4: Table Of Contents

    Table of Contents 1. GETTING STARTED ........................4 ..................... 4 NTRODUCTION OUGH MART ARQUEE ....................4 SYSTEM REQUIREMENTS ND RESOURCES 2. TOUGHSMART MARQUEE – INSTALLATION AND WIRING .............5 ....................5 A TYPICAL MARQUEE SYSTEM OVERVIEW TPRLS: ........................5 OUNTING THE ....................6 CCESING CONNECTORS AND SWITCHES ..........................

  • Page 5: Getting Started

    1. GETTING STARTED INTRODUCTION- TOUGH SMART MARQUEE The ToughSmartMarquee is a unique intelligent LED display product used with industrial control systems. The ToughSmartMarquee stores user programmed messages along with the conditions under which each message would be displayed. The marquee would then continuously poll control system’s controller, such as PLC, evaluate programmed conditions and display corresponding messages...

  • Page 6: Toughsmart Marquee - Installation And Wiring

    Note: A PC is only required to initially program the Marquee and the PLC. Fig 1.3.1 A Typical Marquee System MOUNTING THE TPRLS: Please refer to Chapter 3 in the ToughSmartMarquee Hardware manual for mounting and installation information. April 2010...

  • Page 7: Accesing Connectors And Switches

    ACCESING CONNECTORS AND SWITCHES The ToughSmartMarquee has an Access/Cover plate on its backside. This is a gasketed cover plate with two sealed grommets for power and communication cables. The gasket and the grommet seal must be intact to retain NEMA 12 rating. Once you remove the cover plate by removing the four access screws on the plate, you have access to wiring terminals required for marquee communication.

  • Page 8: Connecting Power

    CONNECTING POWER The Marquee’s power input is 110-220VAC @ 50-60Hz. Three terminals are provided for connecting operating power to the unit. These terminals are located on the Control Board (see the figure 2.2 below). Power Input terminals are labeled L1, L2, and chassis ground (8). Always connect the ground terminal to the safety ground.

  • Page 9: Serial Port 2 (Sp2) Wiring

    2.5.2 SERIAL PORT 2 (SP2) WIRING The SP2 connector is used to connect the Marquee to the PLCs via RS-232 or RS 422/485 (only one at a time) communication. If the user is using PLC over Ethernet, no wiring is required on this port.

  • Page 10: Ethernet Port

    2.5.3 ETHERNET PORT The Ethernet port is connected to a switch or a hub in LAN. (If your Marquee unit has two Ethernet ports, please use the one below SP2 port; DO NOT USE the other Ethernet port). The Marquee is generally programmed using the Ethernet port. (But, under certain cases as mentioned later, serial port SP1 may be used).

  • Page 11: Marquee Messages Seen On Power-Up

    (COM port Baud rate) CHAR (Character size) Once the controller board is activated, a scrolling message appears displaying the ToughSmartMarquee’s IP address. Example: CONTROLLER STATIC IP 192.168.0.1 After the IP address appears, the programmed messages (Power Up messages followed by PLC Messages) are displayed based on the PLC tag status and control parameters.

  • Page 12: Programming The Marquee

    1. On the Project Information screen, click on the Edit Program OFF-LINE (Write to Panel Later) button. 2. Under Project Name, enter the same. The primary ToughSmartMarquee file has a “.tsm” suffix. 3. Click on the DOWN arrow to the right of PLC Type and Protocol to view the list. In this example, select EZ PLC (Ethernet TCP/IP) –...

  • Page 13: Adding Plc Messages To The Marquee

    PLC. You can program Active or Inactive Messages based on whether the PLC tag condition is fulfilled on not. Refer to the “Add Messages” index in the ToughSmartMarquee software Help section for a detailed explanation on setting up Marquee Messages.
  • Page 14 Once that occurs, you would be prompted to exit the Setup Mode. GROUP AND UNIT NUMBER Each ToughSmartMarquee is assigned a unit address. A unit address is programmed into each message to specify which unit or units should display that message Each unit address consists of two identifiers—a Group and a Unit Number.

  • Page 15: Transferring Project To Marquee

    If you are still having difficulty with a particular aspect of installation or messaging, technical support is available at 1-800-TEC-ENGR (832-3647) or FAX us at 1-563-359- 9094. You can also contact technical support through our website at www.uticor.net. April 2010...
