Summary of Contents for UTICOR MI-17

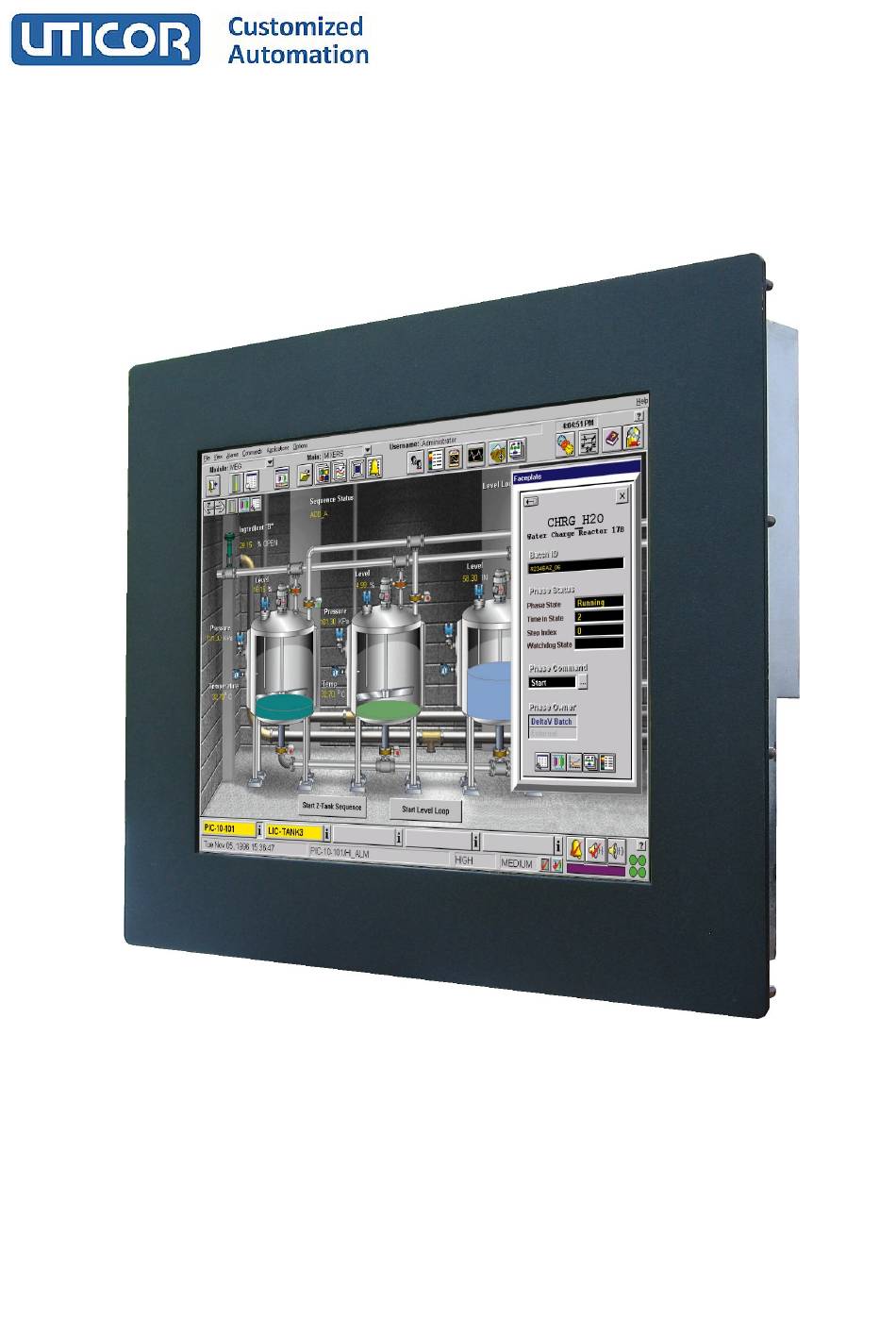

- Page 1 Manual Monitor MI-17...
-
Page 2: Table Of Contents
Contents: Page General Technical data 5 Power Supply 3.1 Monitor with 12 VDC power supply 3.2 Monitor with 24 VDC power supply 3.3 Monitor with 230 VAC power supply Backside Monitor OSD Menu Picture Adjust of the backlight Adjust the brightness Contrast setting Adjust the Sharpness Display... - Page 3 Contents: Page Touch Screen Monitor care Screensaver security Mechanical dimensions 10.1 Monitor with Standard or Stainless Steel Front Plate 10.2 Monitor with 19“ Front Plate Front panel cutout monitor with Standard or stainless steel front plate Notes Page 3...
-
Page 4: General

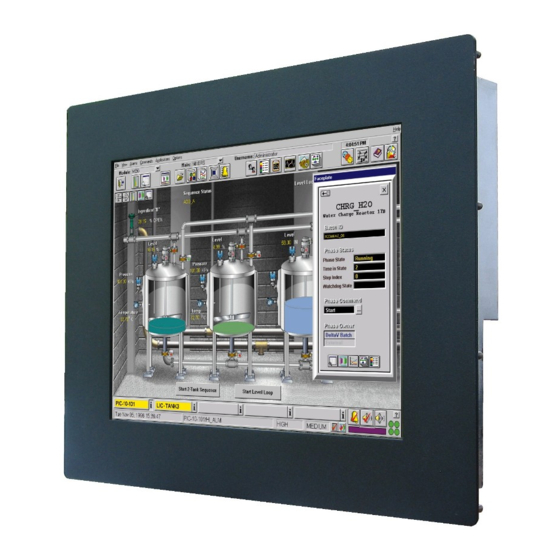

1 - General The monitor has a 17 "TFT display with a resolution of 1280 x 1024 pixels. The connection to the PC takes place via a VGA interface with 15-pin VGA plug or via a DVI interface with DVI-I Dual Link plug (24 + 1 pin) or the dis- play port for the transmission of digital image signals. -
Page 5: Technical Data
2 - Technical specifications Technical specifications LCD - Type 17“ TFT resolution (Pixel) 1280 x 1024 act. screen area(mm) 337,9 x 270,3 pixel density (mm) 0,264 x 0,264 brightness (cd / m²) contrast 1000 : 1 reaction time TR/TF (msec.) 3,5 / 1,5 Colors 16,7 Mio... -
Page 6: Power Supply
3 - Power supply 3.1 Monitor with 12 VDC power supply The connector is located on the back of the monitor. The inner pin is plus, the outer minus. The inner plug has a diameter of 2.5 mm. An external power supply unit with a supply voltage of 100 - 240 VAC / 12 VDC and 60 VA output is included in this ver- sion. -
Page 7: Backside Monitor
4 - Monitor Back Button OSD menu on the back of the monitor On the back of the monitor is the power supply connector, the VGA input, the DVI input, the DP connector, the connector on the Touch if the monitor is equipped with a touch screen, and 5 buttons for adjusting the OSD menu Die Tasten sind bezeichnet mit: POWER:... -
Page 8: Picture
5.1 Picture Backlight: Adjustment of the backlight Brightness: Adjust the brightness Contrast: Contrast adjustment Sharpness: Adjust the focus Page 8... -
Page 9: Display
5.2 Display Auto Adjustment: The optimal picture setting is activated H. Position: The horizontal position can be adjusted V. Position: The vertical position can be adjusted Pixel Clock: The clock frequency can be adjusted Phase: The clock rate can be adjusted Page 9... -
Page 10: Color
5.3 Color Gamma: The gamma value can be adjusted Color Temp.: The color temperature can be adjusted Color Effect: A color effect can be set Color Demo: Selection for hue and saturation Color Format: Color space selection Hue: Adjust the color balance Saturation: Adjust the saturation Page 10... -
Page 11: Advance
5.4 Advance Aspect ratio: Adjust aspect ratio Overscan: Overscan function on or off DDCCI: Turn DDCCI support on or off Ultra Vivid: Select the type of color mode Page 11... -
Page 12: Input
5.5 Input VGA: Select VGA as the input source DVI: Select DVI as the input source Select DP as the input source Page 12... -
Page 13: Other
5.6 more settings Reset: Auf Werkseinstellungen zurücksetzen Menu Time: Darstellungszeit OSD Menü OSD H Position: Horizontaleinstellung OSD Menü OSD V Position: Vertikaleinstellung OSD Menü Language: Sprache: Deutsch oder Englisch Transparencey: Transparenz OSD Menü Einstellung Rotate: Drehen OSD Menü Ein/Aus Seite 13... -
Page 14: Information
5.7 Information Information about: signal input H and V frequency clock speed HDCP functional status Firmware version Page 14... -
Page 15: Touch Screen
6 - Touch Screen If the monitor is equipped with a resistive touch screen, the CD comes with the driver software for the touch screen. When touched with a USB interface, the touch is powered by the PC. The connection to the PC is made via a USB plug type A. The plug is located on the back of the monitor. -
Page 16: Monitor Care
7 - Monitor maintenance Only clean the touch with a damp cloth! DO NOT use a pressure washer. Touch only with your fingers, do not use hard and sharp objects. 8 - Screensaver Avoid displaying the same image over a long period of time. Even with TFT monitors, this can lead to "burn in"... -
Page 17: Mechanical Dimensions
10 - Mechanical dimensions 10.1 monitor with standard or stainless steel front plate = 455 mm = 417 mm = 380 mm = 342 mm = 60 mm Front plate thickness = 3 mm Cut Out: 419 x 344 mm 10.2 Monitor with 19 "front panel HE = 8 HE = 482,6 mm... -
Page 18: Front Panel Cutout Monitor With
11 - Front Panel Cutout Monitor with standard and stainless steel front panel CUTOUT Front Panel Cutout Monitor 17 " Hole = 6.5 mm Page 18... -
Page 19: Notes
Notes: Page 19... - Page 20 UTICOR Automation GmbH Künkelstrasse 44 D - 41063 Mönchengladbach Tel.: 02161 - 23015 Fax: 02161 - 182655 Email: info@uticor.de www.uticor.de Manual MI-17 E Rev. D...
