Summary of Contents for REV Robotics UltraUSB
- Page 1 ULTRAUSB HUB QUICK START GUIDE REV-31-1592-QS-1 Copyright © 2019 REV Robotics, LLC...
-
Page 2: Table Of Contents
TABLE OF CONTENTS ULTRAUSB HUB OVERVIEW ..............................3 FEATURES ..................................3 KIT CONTENTS ................................3 USING THE ULTRAUSB HUB ..............................4 CABLE TYPES AND INFORMATION ..........................4 INSERTING CABLES ..............................5 POWERING THE ULTRAUSB HUB ..........................8 2.3.1 POWERING OFF THE HOST DEVICE ......................... 8 2.3.2... -
Page 3: Ultrausb Hub Overview

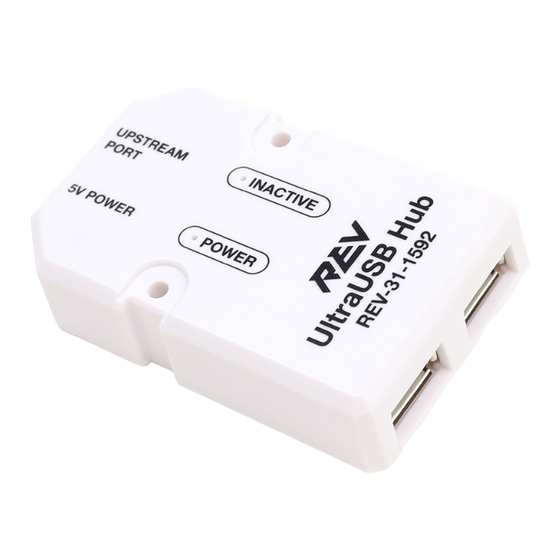

1 ULTRAUSB HUB OVERVIEW The UltraUSB Hub is designed specifically for use in competitive robotics and gives you the ability to connect multiple USB devices to each other as well as replacing cables when damaged instead of needing to replace the whole hub. The... -
Page 4: Using The Ultrausb Hub
2 USING THE ULTRAUSB HUB This section of the guide will cover cable types, how to connect and swap cables, and details on the powering options. 2.1 CABLE TYPES AND INFORMATION Cable Type Uses JST-PH 4-pin to USB-A Cable Data Connecting to any USB-A Device (i.e. -
Page 5: Inserting Cables
In addition to the materials included in the kit, you will also need a 5.5mm Nut Driver (or equivalent sized tool) Step 1 Using a 5.5mm Nut Driver (or equivalent tool), remove the cable cover. REV-31-1592-QS-1 Copyright © 2019 REV Robotics, LLC... - Page 6 Insert the data cable into the hub. If you have trouble inserting the connector, you can use a small flathead screwdriver to push the connector in. Step 3 If you are using a power cable, insert the power cable into the hub. REV-31-1592-QS-1 Copyright © 2019 REV Robotics, LLC...
- Page 7 Step 4 Screw the cable cover back into place. REV-31-1592-QS-1 Copyright © 2019 REV Robotics, LLC...
-
Page 8: Powering The Ultrausb Hub
2.3 POWERING THE ULTRAUSB HUB There are two ways to power the UltraUSB Hub. You can power the hub straight off the host device or externally power with a 5V supply. The maximum downstream current is 500mA per port when the hub is externally powered. When the hub is not externally powered, then the maximum downstream current is host dependent. -
Page 9: Appendix Asetup Examples
APPENDIX A SETUP EXAMPLES APPENDIX A.1 OPERATING A UVC CAMERA ON YOUR ROBOT APPENDIX A.2 USING TWO GAMEPADS WITH YOUR DRIVER STATION REV-31-1592-QS-1 Copyright © 2019 REV Robotics, LLC...
