VENT FrEE / FluElEss
Gas FirEplacE
iNsTallaTioN & opEraTiNG
InstructIon Manual
Please read these instructions carefully before
installation, use and retain them for future reference
LP GAS
VFSL1200
These appliances conform to the requirements of SANS 1539:2017
LPGSA Permit Number:
1013-49/1-RSA-17-A
Advertisement
Table of Contents
Related Manuals for CHAD-O-CHEF LP GAS VFSL1200
Summary of Contents for CHAD-O-CHEF LP GAS VFSL1200

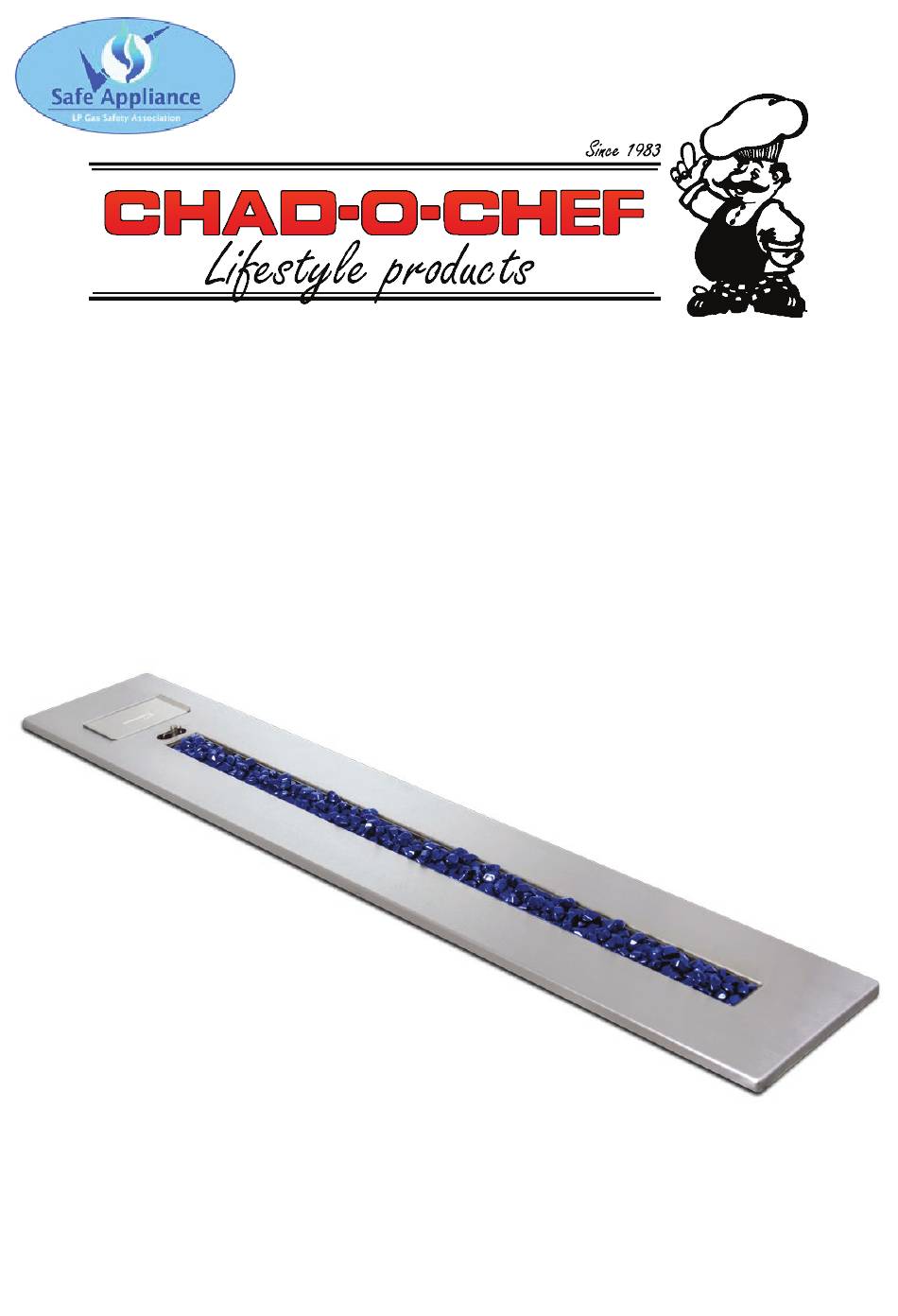

- Page 1 VENT FrEE / FluElEss Gas FirEplacE iNsTallaTioN & opEraTiNG InstructIon Manual Please read these instructions carefully before installation, use and retain them for future reference LP GAS VFSL1200 These appliances conform to the requirements of SANS 1539:2017 LPGSA Permit Number: 1013-49/1-RSA-17-A...
- Page 2 CONGRATULATIONS o n y o u r p u r c h a s e o f a CHAD-O-CHEF FirEplACE W E L C O M E a n d t o t h e CHAD-O-CHEF family...
-
Page 3: Table Of Contents
TAbLE OF CONTENTS General Instructions and Safety Notes ....................1 Specifications................................2 INSTALLATION REQUIREMENTS ......................2 INSTALLATION INSTRUCTIONS ......................3 FOR QUALIFIED GAS INSTALLER ......................3 NG6801 VALVE: Operating Instructions .....................4 NG6801 VALVE: Pressure Testing ......................4 Checklist For Gas Installer ..........................5 Caution ...................................5 Warnings ..................................6 Cleaning ..................................7 Servicing ..................................7 Guarantee Claim Form .............................8... -
Page 4: General Instructions And Safety Notes
GENERAL INSTRUCTIONS AND SAFETY NOTES Thank you for purchasing your new CHAD-O-CHEF Gas Fireplace manufactured to high standards and tested for compliance with SANS 1539:2017 The manufacturer and /or its agents and distributors will not be held responsible for injuries or damages caused by faulty or incorrect installation or use of the appliance. -
Page 5: Specifications
SPECIFICATIONS Model VFSL1200 Gas type Operating pressure 2,8kPa Min Regulator size to comply with SANS 1237 2 kg/hr Max. gas consumption 0.88kg/hr Max. mJ input 44 mJ/hr Max. kW input 12.2 kW/h Gas inlet connection Ø8mm compression Ignition Piezo Spark Oxygen depletion system ( Pilot ) ODS min 18.5% O2 Min Room size without permanent ventilation... -
Page 6: Installation Instructions
INSTALLATION INSTRUCTIONS FOR QUALIFIED GAS INSTALLER A masonry shelf may be fitted 800mm above the fireplace but under no circumstances should any electrical equipment such as a TV be positioned above. Any ornaments positioned above the fireplace must be able to withstand the elevated temperatures and moisture. -
Page 7: Ng6801 Valve: Operating Instructions
NG6801 VALVE: OPERATING INSTRUCTIONS The ODS pilot is situated on the side of the burner. The gas control valve is accessible by removing the lower door. Grip a knob in each hand and pull forward, to break the magnetic hold. 1. -
Page 8: Checklist For Gas Installer
… Jet is centrally aligned with the burner venturi. … Check for spider webs in the venturi. … The Glass pebbles supplied with Chad-O-Chef fireplaces must be inside the burner. Ensure that the right amount of glass pebbles placed on the fireplace are correct, as supplied by Chad-O-Chef. -
Page 9: Warnings
WARNINGS WARNING This appliance shall not be installed in bedrooms or bathrooms. WARNING This is an un-vented gas heater. It uses air (oxygen) from the room in which it is installed. Provisions for adequate ventilation must be provided. Refer to appropraite section of the user manual. WARNING CARBON MONOXIDE POISONING CAN LEAD TO DEATH... -
Page 10: Cleaning
CLEANING Should soot deposits appear on the stainless steel, first clean with a dry cloth when cold, and follow up with a cloth dampened with methylated spirits and a final buffing with a dry cloth. Do not use an oil based cleaner, as the oil tends to discolour the stainless steel when heated. -
Page 11: Guarantee Claim Form
GUARANTEE CLAIM FORM... - Page 12 Manufactured By: Chad-o Engineering PO box 986 Honeydew 2040 Tel: (011) 668 1910 Email: Sales@chad-o-chef.co.za www.chad-o-chef.co.za...
