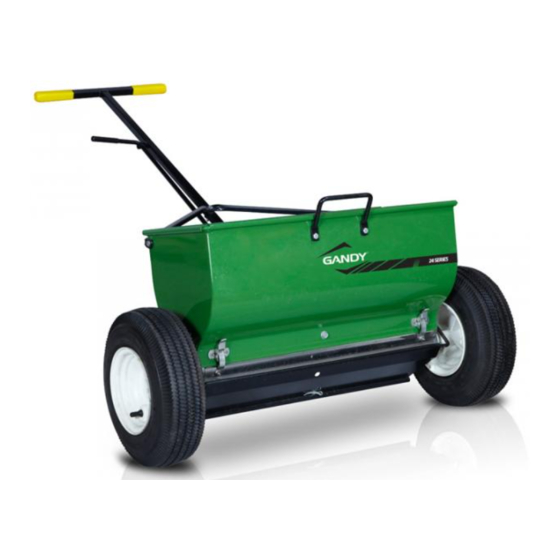

24-inch variable rate spreader
Hide thumbs Also See for Turf Tender 24H13:

Advertisement

Quick Links

Parts & Assembly Manual
815 Rice Lake Street, Owatonna, MN 55060
Phone: 800-443-2476 / 507-451 5430
www.gandy.net / Email: sales@gandy.net
Turf Tender
®
24H13
(Beginning w/ Serial #145111)
24-inch Variable Rate Spreader
Push Model w/13-inch Pneumatic Tires and Spread Plate
(All Hardware in Hardware Bag Unless Otherwise Specified)

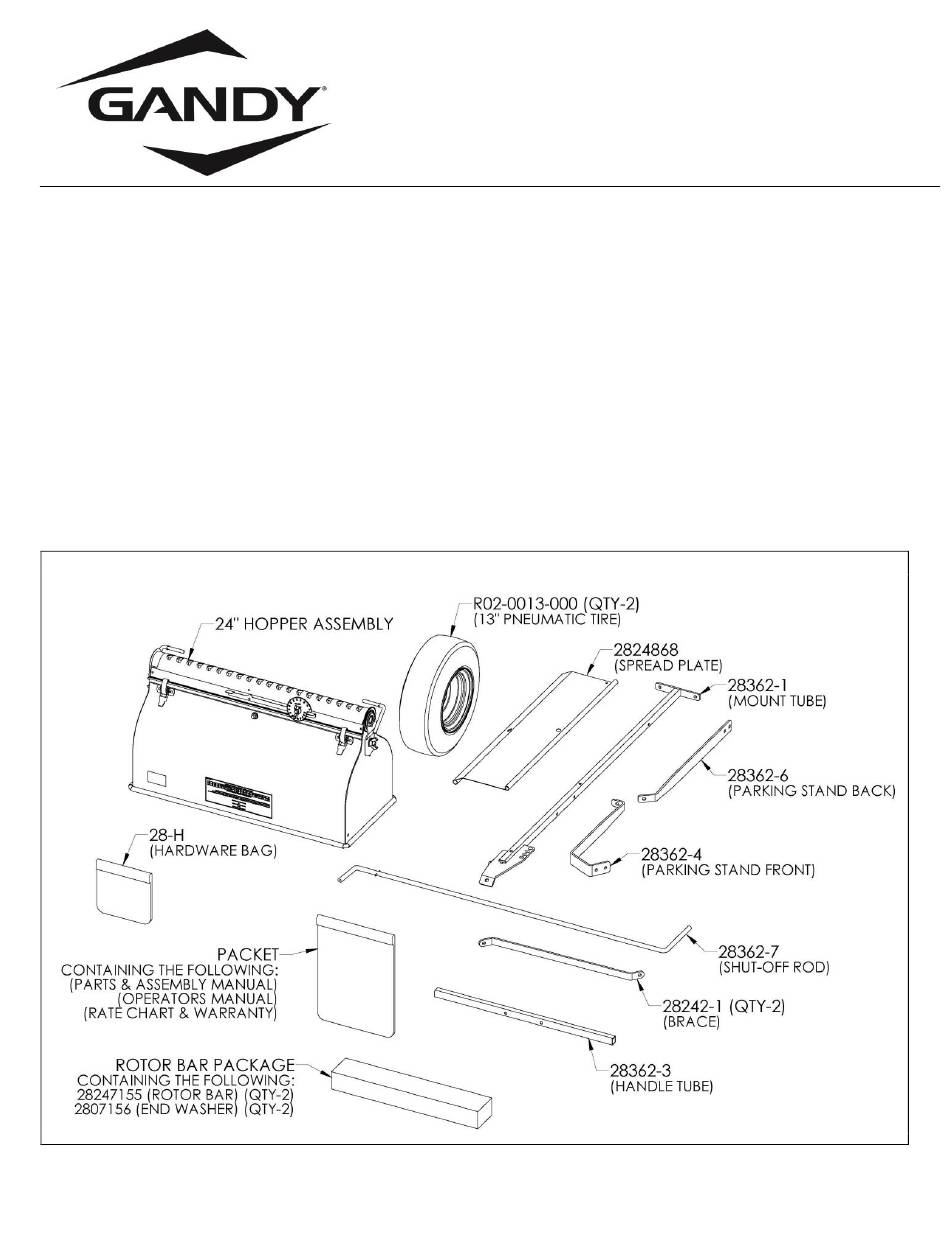

Carton Containing the Following Parts:
Diagram #1
2824-B
Page 1 of 19

Advertisement

loading
Need help?

Need help?

Do you have a question about the Turf Tender 24H13 and is the answer not in the manual?

Questions and answers

Summary of Contents for Gandy Turf Tender 24H13

  • Page 1 Parts & Assembly Manual 815 Rice Lake Street, Owatonna, MN 55060 Phone: 800-443-2476 / 507-451 5430 www.gandy.net / Email: sales@gandy.net Turf Tender ® 24H13 (Beginning w/ Serial #145111) 24-inch Variable Rate Spreader Push Model w/13-inch Pneumatic Tires and Spread Plate...
  • Page 2 Rotor Bar Package (for 24” Spreader) Contents: Diagram #2 2824-RP Hardware Bag 28-H Contents: Diagram #3 28-H Note: Part numbers C21-0177-020 (Qty-2) is not used in this spreader package. Page 2 of 19...
  • Page 3 24” Hopper Assembly Schematic Diagram #4 2824-A1 Bottom Assembly (28247968) Breakdown: These parts are part of the Bottom Assembly but can be ordered separately. Diagram #5 28247968 Page 3 of 19...
  • Page 4 Assembly Instructions: (All Hardware & Small Parts in Hardware Bag Unless Otherwise Specified) Please read and review all instructions before starting to assemble. Minimum tools required. Pliers, Two 7/16” Wrenches & One 1/2" Wrench Step# 1 (Unpacking & Rotor Bar Assembly) Remove contents from carton and check all parts against page #1 to confirm parts.
  • Page 5 Step# 2 (Spread Plate Assembly) 1. Locate Spread Plate (2824868). 2. Slide rolled edge (side without bend) of spread plate onto bearing retainer rod as shown in Diagram #7. 3. Re-install the last bearing retainer to hopper and spread plate re-using the 5/16” washer and wing nut. 3.
  • Page 6 Step# 4 (Locate the Following Parts & Hardware) Parts: Hardware: Mount Tube (28362-1) 1/4 x 1-1/4 Hex Bolts (C03-0250-051) (Qty-2) Shut-Off Rod (28362-7) 1/4” Washers (C02-0250-020) (Qty-2) Guide Rod Bracket (28362-2) (Qty-2) 1/4” Flange Nuts (C01-0250-030) (Qty-2) Diagram #9 2836-A3 Page 6 of 19...
  • Page 7 Step# 5 (Mount Tube & Shut-Off Lever Assembly) Insert the 90° bent end of shut-off rod (28362-7) through guide tab on mount tube (28362-1) as shown in Diagram #10. When 90° bend on shut-off rod hits the guide tab rotate the shut-off rod (see diagram #11) and slide shut-off rod until the spring pin touches the guide tab as shown in Diagram #12.
  • Page 8 Step# 6 (First Guide Shut-Off Lever Assembly) Slide the first guide rod bracket (28362-2) over the 90° bent end of the shut-off rod and rotate around the corner of the shut-off rod. Now slide guide all the way down the shut-off rod to the farthest hole down on the square tube.
  • Page 9 Step#7 (Second Guide Shut-Off Lever Assembly) Slide the second guide rod bracket (28362-2) over the 90° bent end of the shut-off rod and rotate around the corner of the shut-off rod to the top hole on the square tube. When in place the tab with small slot will be on the opposite side of the square tube as the shut-off rod as shown in Diagram #17.
  • Page 10 Step# 8 (Mount Tube to Hopper Assembly) Note: Lay something down (piece of cardboard or blanket) to protect hopper from being scratched up. Lay hopper on its side so the cam gauge is up & pivot the spread plate down out of the way as shown in Diagram #19.
  • Page 11 Step #9 (Left Brace to Mount Tube Assembly) Locate the TWO braces (28242-1), TWO 1/4 x 1/2 hex bolts (C03-0250-010), ONE 1/4 x 1-1/2 hex bolt (C03- 0250-061), THREE 1/4" flange nuts (C01-0250-030) and ONE 1/4" washer (C02-0250-020). Attach one end of the brace to the 1/4" hole in the left side of the hopper as shown in Diagram #21 using a 1/4 x 1/2 hex bolt and 1/4”...
  • Page 12 Step #10 (Right Handle Brace Assembly) Attach the second brace (28242-1) to the 1/4” hole on the right side of the hopper using the 1/4 x 1/2 hex bolt and 1/4" flange nut. Do not tighten bolt. Remove the 1/4" flange nut from the 1/4 x 1-1/2 bolt holding the left brace in place to the mount tube. Attach the other end of the brace to the 1/4 x 1-1/2 bolt and re-install the 1/4"...
  • Page 13 Step #11 (Parking Stand Assembly) Locate the following parts: front parking stand (28362-4), back parking stand (28362-6), TWO 1/4 x 5/8 carriage bolts (C04-0250-020) and TWO 1/4" flange nuts (C01-0250-030) as shown in Diagram #23. Fasten parking stands together using two carriage bolts and flange nuts as shown in Diagram #23. Do not tighten, leave loose.
  • Page 14 Step #13 ( Sash Chain to Spread Plate Assembly) Locate Sash Chain (28368785-1) and the small hairpin cotter 1/8 x 1-15/16 (C21-0125-020). Insert sash chain into hole in spread plate as shown in Diagram #25. Connect the small hairpin cotter to the bottom most link on the sash chain. Pull sash chain up so the hairpin cotter contacts the spread plate.
  • Page 15 Step #15 (Handle Tube Assembly) Locate the following parts: Handle Tube (28362-3), TWO 1/4 x 1-1/4 hex bolts (C03-0250-051), TWO 1/4" washers (C02-0250-020) and TWO 1/4” flange nuts (C01-0250-030). Attach the Handle Tube to the Mount Tube using the above listed hardware as shown in Diagram #27. Tighten hardware securely.
  • Page 16 Step #17 (Lift Handle Assembly) Locate Lift Handle (2808886-9), TWO 1/4 x 1/2 hex bolts (C03-0250-010) and TWO 1/4" flange nuts (C01- 0250-030). Attach Lift Handle to the two 1/4" hole in the front of the hopper using the above listed hardware as shown in Diagram #29.
  • Page 17 24” Spreader Parts Breakdown: 24H13-A1 Page 17 of 19...
  • Page 18 24” Push Handle Parts Breakdown: 24H13-A2 Page 18 of 19...
  • Page 19 13” Pneumatic Tire & Mount Hardware: 36H13-A3 Optional Equipment (NOT Part of Spreader Package) Calibration Pan & Mounting Hardware: Package #28248584 Calibration pan hangs under the spreader to catch material to double check application rates. 28248584 Jiggler Package: Package #J24 Use Jigglers on bridging material.
