End-Wheel Driven 3-Point Hitch
Website: www.gandy.net / Email: sales@gandy.net
10T Series
January 2018
Gandy Company
815 Rice Lake Street
Owatonna, MN 55060
Telephone: 507-451-5430 / 800-443-2476
Fax: 507-451-2857

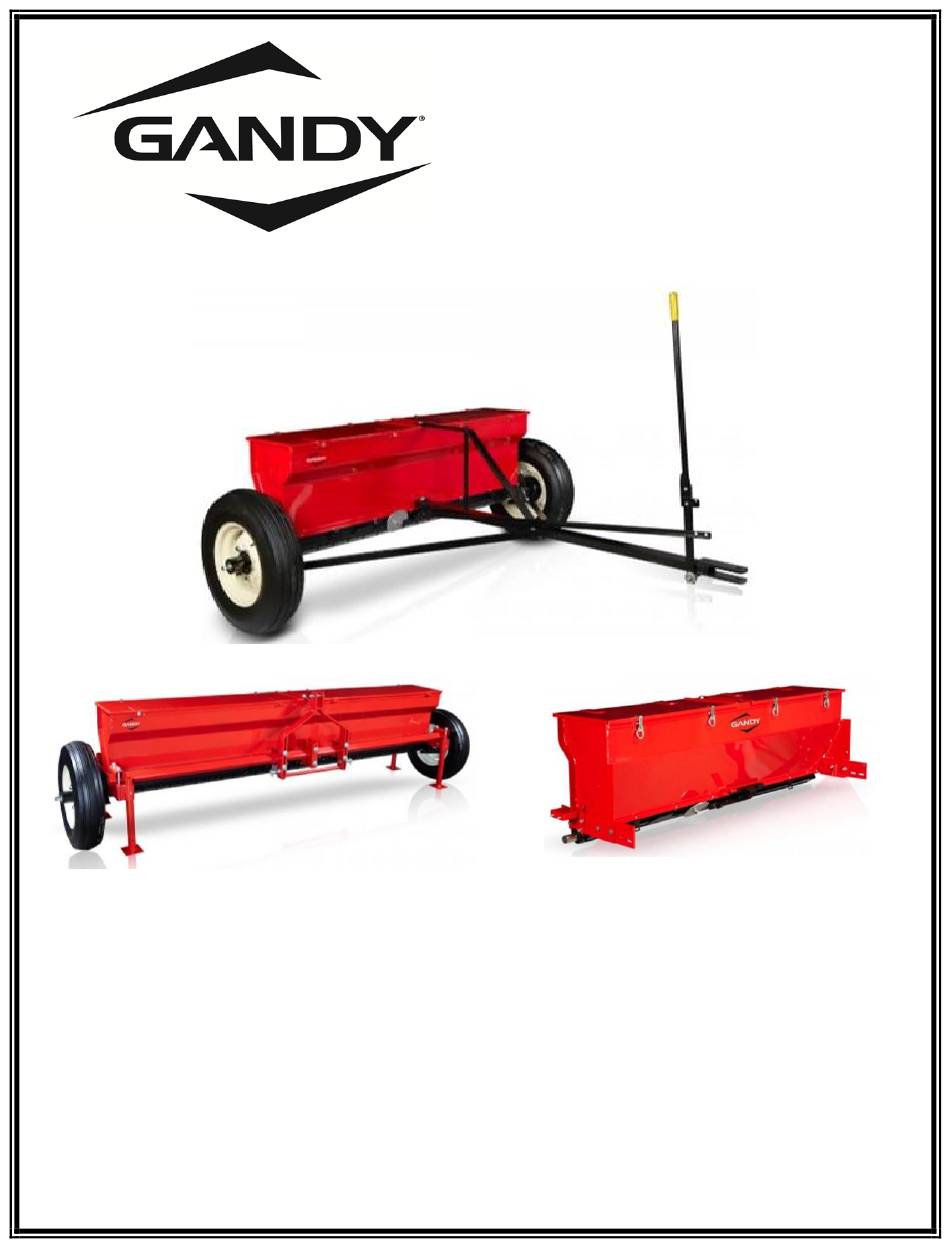

Operator's Manual
10T Series Drop Spreader
For 6, 8, 10 & 12-Ft Models
Pull-Type, End-Wheel Drive
& Implement Mounted
Pull-Type
Implement Mount
Advertisement
Related Manuals for Gandy 10T Series
Summary of Contents for Gandy 10T Series
- Page 1 Operator’s Manual 10T Series Drop Spreader For 6, 8, 10 & 12-Ft Models Pull-Type, End-Wheel Drive & Implement Mounted Pull-Type End-Wheel Driven 3-Point Hitch Implement Mount Gandy Company 815 Rice Lake Street Owatonna, MN 55060 Telephone: 507-451-5430 / 800-443-2476 Fax: 507-451-2857 Website: www.gandy.net / Email: sales@gandy.net...
- Page 3 Maintenance of 10T Series Spreaders: Lubrication of Spreader: There are a total of 9 grease fittings on this spreader that need to be greased twice –a-day. These 9 grease fittings are greased from the factory but double check that none were missed.
- Page 4 Built in Ground Driven Wheel Hub Manual Operation: For Pull-Type & 3-Pt End Wheel Driven Spreaders: Out of Gear Position, Lever Up: When traveling to a from field locations flip the clutch lever in the up Out of Gear position as shown in illustration.
- Page 5 Cleaning of Spreader: Run spreader until it is empty or nearly so. Move the cam gauge to the highest position and empty hopper out. Catch remaining material on a tarp or optional l calibration pans. Sweep out remaining material. To remove rotor bars pull out the stub drives on each end by pushing down on the clutch lever and pulling stub drives out.
-
Page 6: Operation & Calibration
Operation & Calibration: 1) Observe the important service and safety decals located on the spreader. N02-0014-010 N02-0014-020 N02-0057-000 2) With spreader in the closed position fill hopper and close lids. Check to see that spread-plates are set at desired angle. Spread plats can be adjusted by changing how the sash chain is hooked to the spreader. - Page 7 Picture of a Calibration Pan Held in Place By Sash Chains Using Calibration Pans: Place calibrations pans on spread-plate using the sash chains to hold them in place. Note: the 6-ft spreader only uses one pan all the others use two pans. Fill the spreader about half full.
- Page 8 Powder Angle Packages for 10T Series Spreader Standard with all Spreaders Powder Angles are recommended for powdery fine light materials. They are furnished with all “T” series spreaders. Powder Angle C02-0250-020 C03-0250-040 0506394-100 0506394-334 (1/4” SAE Washer) (Powder Angle 1”) Package #.
- Page 9 Standard Equipment on All Spreaders. Powder Paint Coated Steel Hopper & Removable Bottom and Rate Control Slide. Cam-Gauge Controlled Shur-Feed Rotor Bars with Removable Stub Drives for Rotor Bars. Heavy Duty Grease Able Bearings Adjustable Spread-Plate Removable & Reversible Covers with Spill-Guards for Each Cover. Powder Angles Included.
-
Page 10: Limited Warranty
Gandy Company. Serial number and model of the unit involved is required by the Gandy Company on all warranty claims. Gandy Company policy is to improve products whenever it is practical to do so. It reserves the right to make changes or add improvements at any time without incurring any obligation to make such changes on products sold previously.
