- Page 1 8720 LAMBRIGHT ROAD HOUSTON, TEXAS 77075 PHONE: (713) 987-0336, FAX: (713) 987-0355 www.acsi-us.com FORCED AIR 700 PORTABLE HEPA FILTRATION UNIT PART ORDER NUMBER: FA700 OPERATING & MAINTENANCE MANUAL DOCUMENT NUMBER: OPMM-002E-R0...
- Page 2 REPLACEMENT PARTS LIST NOTE: ALL UNITS MANUFACTURED BY ADVANCED CONTAINMENT SYSTEMS INC. (ACSI) MEET ALL STANDARDS REQUIREMENTS SET BY THE AMERICAN NATIONAL STANDARS INSTITUTE (ANSI) Z2.9, AND ARE OSHA APPROVED. ELECTRICAL COMPONENTS ARE “UL” LISTED AND “CSA” CERTIFIED. Proprietary Information: This document is the property of ADVANCED CONTAINMENT SYSTEMS, Inc.

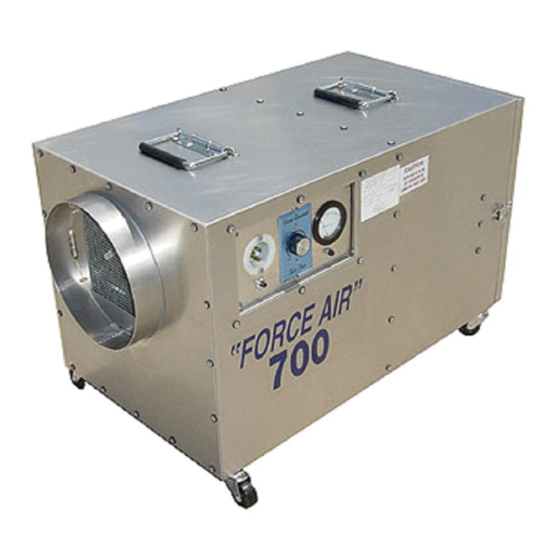

- Page 3 DOCUMENT NUMBER: OPMM-002E-R0 1. GENERAL INFORMATION: The FORCED AIR 700 PORTABLE HEPA FILTRATION UNIT is designed for indoor use and to provide the most efficient air filtration with three stages of filtration. One stage with HEPA (High Efficiency Particulate Air) filtration, that can remove 99.97% of particles 0.3 micron or larger from the air stream.
- Page 4 DOCUMENT NUMBER: OPMM-002E-R0 PS Receptacle Vari-Speed Switch Pressure Gauge Breaker 15 Amp Sensing Port Fig. 1 Control Panel Control Panel: 3.3.1 Variable Speed Switch to start and select the speed of the unit 3.3.2 Push Button Breaker 15 Amp 3.3.3 Power Supply Receptacle 3.3.4 Pressure Gauge...
- Page 5 DOCUMENT NUMBER: OPMM-002E-R0 Fig. 2 Pre-filter Pad Fig. 3 Ring Panel Filter 4. FILTRATION: First Stage Filter (Pre-filter Pad): 4.1.1 17.5” x 17.5” x 1” 4.1.2 Double Ply 4.1.3 Removes large particles up to 10 microns and larger from the air flowing through the unit, thereby preventing premature loading of the second stage and HEPA filters.
- Page 6 DOCUMENT NUMBER: OPMM-002E-R0 Fig. 4 HEPA Filter Third Stage Filter (HEPA): 4.3.1 12” x 12” x 11.5” 4.3.2 99.97% Efficient 4.3.3 Removes smaller contaminated particles up to 0.3 micron from the air flowing through the unit and has an efficiency rating of 99.97%. The HEPA filter (see fig 4) need to be changed as it becomes loaded and the airflow capacity of the unit decreases, or the pressure gauge at the control panel exceeds 1.9 inches of W.C.
- Page 7 DOCUMENT NUMBER: OPMM-002E-R0 5.1.3 Fold in the sides of the contaminated pad and dispose of as per section 5.4. 5.1.4 Install a new pre-filter pad. 5.1.5 Close the door and fasten draw latch. 5.1.6 Reconnect the power supply cord, then turn the unit on, and check the pressure gauge at the control panel.
- Page 8 DOCUMENT NUMBER: OPMM-002E-R0 5.3.6 Place the new HEPA filter in the unit with the gasket end facing the fan. Check to see that the filter lies squarely on the base bracket. 5.3.7 Push the HEPA filter against the HEPA flange bulkhead and rotate the looking tabs to the closed position.
