YARDMAX�

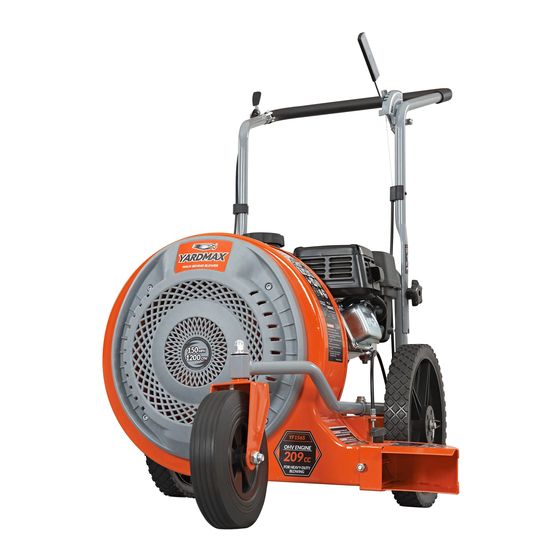

Walk-Behind Blower
Assembly Manual
MODEL NUMBER
YF1565
SERIAL NUMBER
PURCHASE DATE
Both model number and serial
number may be found on the
main
label.
(See
Page 2, Figure
your User Manual)
record both of them in a safe
place for future use.
READ AND UNDERSTAND THE ENTIRE MANUAL BEFORE OPERATING MACHINE.
FAILURE TO COMPLY WITH THE SAFETY INSTRUCTIONS IN THE MANUAL
1 of
You should
MAY RESULT IN PERSONAL INJURY.
Save This
Manual
for Future Reference
Tame the Great Outdoors·
Advertisement
Table of Contents
Related Manuals for YARDMAX YF1565
Summary of Contents for YARDMAX YF1565
- Page 1 Save This Manual for Future Reference YARDMAX� Walk-Behind Blower Assembly Manual MODEL NUMBER YF1565 SERIAL NUMBER PURCHASE DATE Both model number and serial number may be found on the main label. (See 1 of Page 2, Figure your User Manual)
-
Page 2: Contents Supplied
Many accidents are caused by poorly maintained equipment. To maintain your machine, check for any misalignment of binding CONTENTS SUPPLIED Your YARDMAX walk-behind blower comes partially assembled and contains the following: � i '. � • �... - Page 3 ASSEIMBLY This walk-behind blower was partially assembled at the factory. To assemble your machine follow the below instructions. FRAME Insert the end of the front swivel caster tube into the opening of the frame tube, and align the holes. Attach the tubes to the engine deck with M8x40 bolt, arc washer, spring washer and lock nut in four places.
-
Page 4: Upper Handle
Walk-Behind Blower Operator's Manual » UPPER HANDLE THROTTLE CONTROL LEVER Mount the throttle control lever onto the right upper handle with There are two positions which � NOTE the handle can be attached a high M5x25 screw and lock nut. Tighten securely using a 8mm wrench position and a lower position. - Page 5 FLOW ANGLE ADJUSTMENT CONTROL CABLE FRONT DISCHARGE CHUTE Attach the Z type end of the cable into the lever as shown. (See The front discharge chute is used to � NOTE Figure illustration redirect the air flow to the front of the blower.
-
Page 6: Know Your Machine
Walk-Behind Blower » Operator's Manual KNOW YOUR MACHINE FEATURES ANID CONTROLS l•Hffi05«@® 3M§ •-------------- � ■ Upper Handle Frame Tube lift\Hi¥%i: Intake Guard Front Discharge Chute lii·lllftbtildi§ Discharge Chute Know Your Machine I... - Page 7 Air Cleaner Muffler Spark Plug ©Ni Plffltiii§ --4i•lif.i ffi M=Mil .;:--___ "'"'----� Carburetor Fuel Filler Cap DMffliA, Oil Filler Cap/ Dipstick Oil Drain Plug Know Your Machine...
- Page 8 Walk-Behind Blower » Operator's Manual Flow Angle Adjustment Index Lever Throttle Control Lever Transits the movement from control lever to the air Regulates the speed of engine. Moving flow louver. FAST9 towards to speed up the engine. Moving towards LOW-A to lower the engine Recoil Starter Handle speed.
- Page 9 Tame the Great Outdoors* 847-327-0566 or 844-YARDMAX info@yardmax.com...
