Summary of Contents for Rainbow Attic Stair ProTech-12 Series

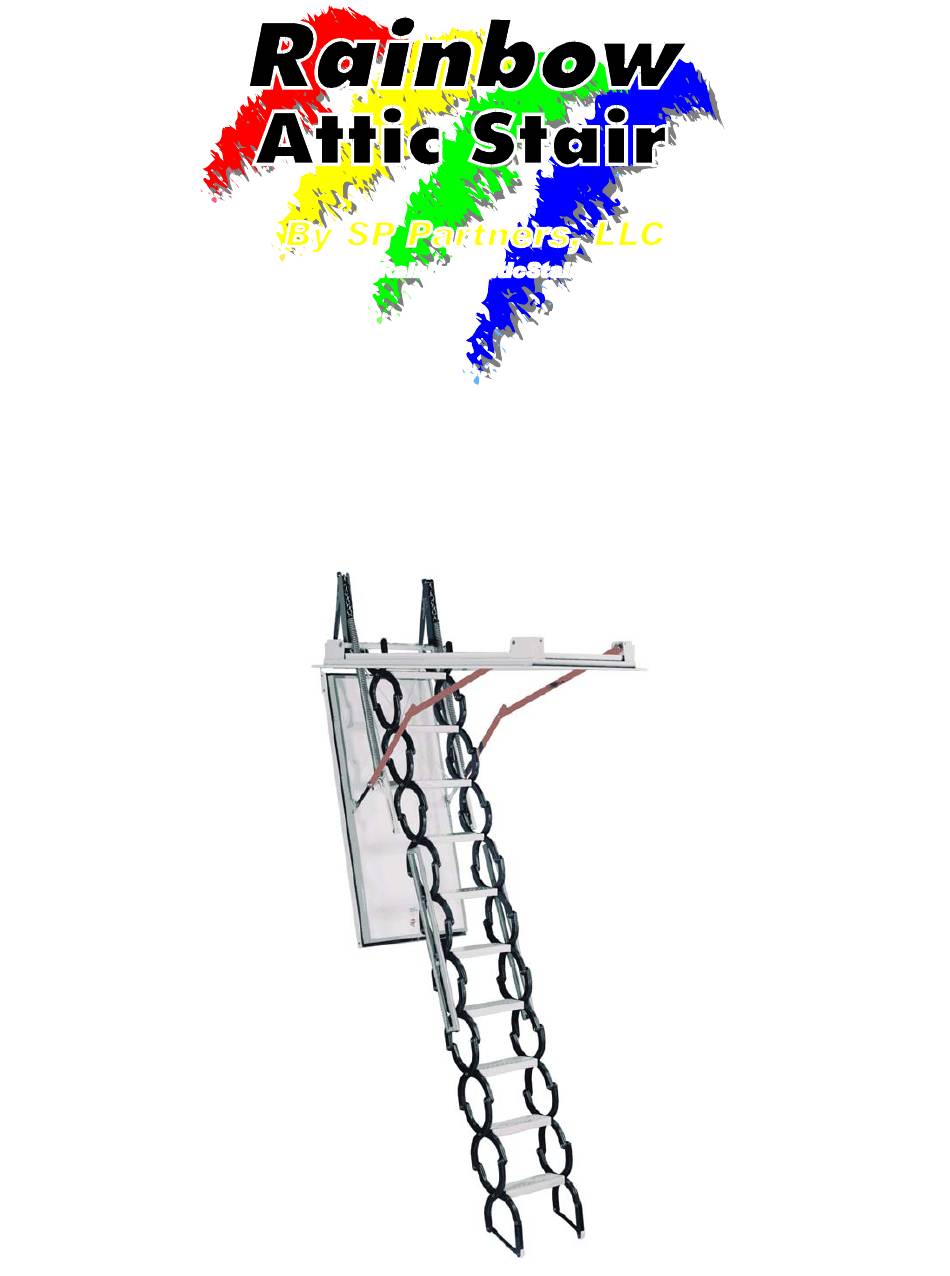

- Page 1 By SP Partners, LLC www.RainbowAtticStair.com INSTALLATION GUIDE ProTech-12...
-
Page 2: Important Read This First
IMPORTANT READ THIS FIRST ● Inspect stair for any damage prior to installation. ● Stair is NOT to be installed while home is under construction and used as a construction stair. ● Correct number of treads for floor-to-ceiling height MUST be attached. -
Page 3: Tools/Materials Required
Tools / Materials Required Drill, tape measure, 1/4” wood drill bit, hammer, crescent wrench, wood shims, ladder, lumber with same dimensions as joists, keyhole saw or utility knife to cut ceiling material. Parts Included (4) 3/8” Threaded Rod (4) Joist Hanger (8) 3/8”... - Page 4 Read instructions carefully and completely before beginning installation. This stairway is for residential use only. Maximum capacity is 350 lbs. Installer should be experienced in the construction or modification of structural framing supports. Improper installation can result in stair collapse and bodily injury. ...
-
Page 5: Preparing The Opening
Preparing the Opening Mark out the rough opening size for your unit ac- cording to TABLE A. Note that the finished metal trim extends about 2” beyond the rough opening when the unit is installed (Figure 2). Allow clearance for this on all four sides. ... - Page 6 Preparing the Stair Insert threaded rod into receivers in each of the four corners. Installing the Stair Be sure that there is adequate light in the attic since the stair will block any light from the room below when raised into place. ...
-
Page 7: Final Adjustments
Slide door opening ring onto pin. Pull door open using pole and hook. Insert hook into eyelet at bottom of last tread (Figure 7) and pull down slowly until it can be reached by hand. Pull remainder of way until fully open. Figure 7 Final Adjustments Adding Additional Step(s) - Page 8 Final Adjustments - continued Remove bottom tread Add extra tread(s) Figure 9 Figure 8 Adjusting Stop Bolt Loosen stop nut on side of stair (both sides) and ensure that stair is touching the ground. Slide bolt up- wards until it stops and re-tighten. This will keep the stair from stretching when climbing. Page 7 October 2014...
- Page 9 Congratulations! You are now ready to begin using your Rainbow Attic Stair. As with any product, be sure to follow instructions for safe, efficient and trouble-free operation for years to come. *** Children should never be allowed to operate or climb any attic stair. ***...
