USE OF METAMORPH WITH THE NANOSCAN SP RANGE OF
SAMPLE SCANNERS AND THE NANOSCAN OP OBJECTIVE POSITIONER

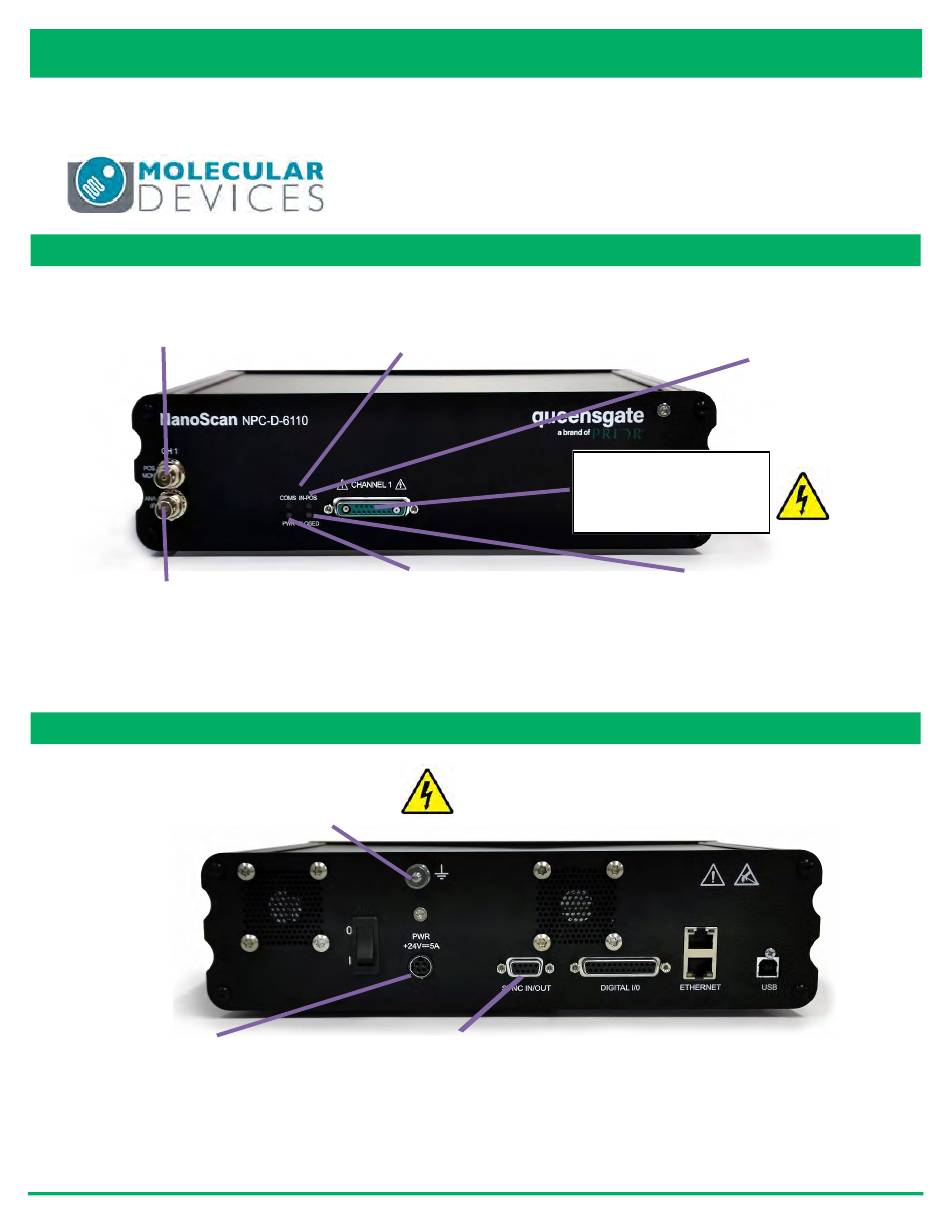

CONNECTING YOUR SYSTEM - FRONT OF UNIT

POS MON connector analogue
position monitor output BNC
connector(s)
Single ended output(s)
ANA I/P connector
Signal used to control the stage position
analogue command input
BNC connector(s)
Single ended output(s)
CONNECTING YOUR SYSTEM – REAR OF UNIT
Earth stud – M4 threaded provides additional
On/off
ground connection to reduce interference of
switch
background electrical noise
Do not raise above 0V ground potential
PWR connector
Provides power to controller electronics
4 pin mini-DIN with screen input
+24V DC ±0.75V @ 5A
Only connect an approve power supply
The NanoScan SP series sample scanners and the NanoScan OP400 objective
positioner have basic control within Metamorph using the NanoScan Z
functionality.
COMS indicator LED indicates status of
communications with connected computer
Not lit = No communications taking place
GREEN lit or flashing = Communications active
PWR indicator LED
Indicates power status and controller ready
RED steady = Controller configuring/not
ready (can take up to 30 seconds)
GREEN steady = Controller powered and
ready for operation
SYNC IN/OUT connector
Provides RS-232 connection with connected
computer using supplied gender changer adaptor
Also used to synchronise multiple 6000 controllers
9-pin D-type socket
www.prior.com
IN POS indicator LED indicates status of stage
position in CLOSED loop mode
OFF = Stage has not reached desired position
ORANGE = Stage settings being loaded on connection
GREEN = Stage has reached desired position
Nanomechanism connector
provides all connections to
nanomechanism
NOTE: High voltage present on
connector – up to 160V DC
CLOSED indicator LED
Indicates status of control loop
OFF = Stage not connected
ORANGE = Stage settings being loaded on connection
RED = Controller operating in OPEN loop mode
GREEN = Controller operating in CLOSED loop mode
YELLOW = Controller servo output frozen
ETHERNET connector used to communicate
with controlling computer dual connector for
pass-through connection
Provides digital inputs and outputs for
interfacing controller to external equipment
USB type B connector
used to communicate
with controlling
computer
DIGITAL I/O connector
TRIG inputs and outputs
IN POS outputs
Stepped inputs and outputs
25-pin D-type socket, 5V TTL
inputs/outputs
MUST use shielded cable
