Ripack 3000 Series User Manual

Hand-held propane-fired shrink gun for shrink-wrapping plastic films
Hide thumbs Also See for 3000 Series:
Table of Contents

Advertisement

Quick Links

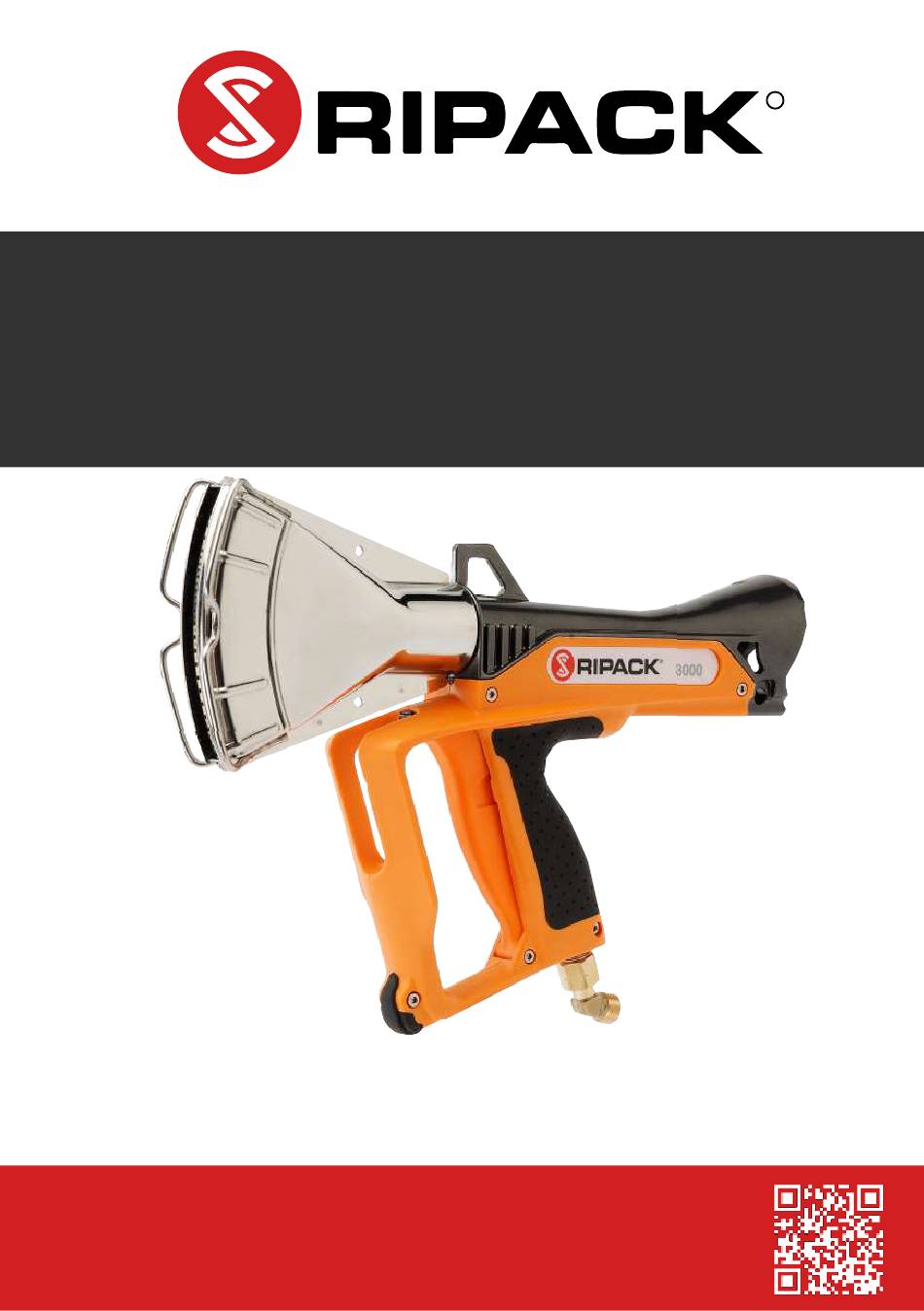

GROUPE SEFMAT
USER'S GUIDE
YOUR PROTECTION
BY EXCELLENCE
REGISTER YOUR PRODUCT
ONLINE WARRANTY CONTRACT
RIPACK.COM/EN/REGISTER-A-PRODUCT
RIPACK 3000
RIPACK 3000 +
R

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 3000 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Ripack 3000 Series

Summary of Contents for Ripack 3000 Series

  • Page 1 GROUPE SEFMAT USER’S GUIDE RIPACK 3000 RIPACK 3000 + YOUR PROTECTION BY EXCELLENCE REGISTER YOUR PRODUCT ONLINE WARRANTY CONTRACT RIPACK.COM/EN/REGISTER-A-PRODUCT...
  • Page 2 RIPACK ACCESSORIES MODULAR EXTENSIONS Quick and easy assembly of one or more extensions wands on the Ripack Series 3000 heat gun. All components are integrated and protected from the environment, use extension wands to work quickly and easily. PIVOTING ARM REST...
  • Page 3 GAS CYLINDER CART Ideal to hold and carry the gas cylinder safely, this accessory offers portability in conformity with industrial insurance requirements. The gas cylinder cart increases the operator’s productivity thanks to a greater ease in working. GAS HOSE REEL WINDER Hea v y du t y c on stru cti o n fo r i n d u st ri a l a pp li cat i on : co r r osi on resistant powder coated steel, four-direction non-snag rollets reducing hose wear abrasion.
  • Page 4 The Multicover sealers allow to make pallet covers and bags from rolls of shrink-film when required and in any size. Make savings by avoiding useless stock of various heights and sizes. MULTICOVER 940/950 : Ripack Heat Gun Sealing MULTICOVER 960 : Electrical impulse sealing 2nd reel in option...
  • Page 5 TURBOPACK SHRINK COLUMN INDEPENDENT AND MOBILE The Turbopack is moved to the pallets, thus avoiding the handling of unsteady loads. FLEXIBLE No limitation in length or width of the load. Heating height adjustable from 1,20 m / 47’’ up 2,40 m / 95’’ (2,20 m / 86’’...
  • Page 6 CALPACK PALLET RAISER Quick and easy to set up, the Calpack allows the film to shrink under the pallet. The load is thus perfectly stabilised with the pallet. Calpack can be used as well with a pallet-truck or a fork-lift. TOOL BAG CONTENT WRENCH USER’S GUIDE...
  • Page 7 GROUPE SEFMAT RIPACK 3000 RIPACK 3000 + HAND-HELD PROPANE-FIRED SHRINK GUN FOR SHRINK-WRAPPING PLASTIC FILMS USER’S GUIDE RIPACK SERIES 3000 IS A PRODUCT OF RIPACK FRANCE.

  • Page 8: Table Of Contents

    CONTENTS WARNINGS ............... OPERATION ............CONNECTIONS ............. EXAMPLES OF USE ........MAINTENANCE ............. SPARE PARTS ............23 WARRANTY ............. EXPLODED VIEW ..........SPARE PARTS LIST ..........

  • Page 9: Warnings

    This appliance is meant exclusively for professional use and for shrinking plastic films. Users of the Ripack Series 3000 shrink gun must read this user’s guide completely and must be trained for the applications that require the use of this appliance.
  • Page 10 This user’s guide must be kept for future reference. Do not use this appliance for shrinking plastic film on materials, substances, products or liquids that inflame spontaneously, either processed in bulk or packed, and do not use the appliance in the storage areas of these products or in spaces where it is explicitly forbidden to smoke for safety reasons.
  • Page 11 In operation, the appliance creates a danger zone up to 1.5 metres (5 feet) in front of the fire nozzle. We draw the attention of operators to the fact that within the danger zone, there is a possible risk of burning for persons and animals, and goods can be damaged or catch fire.
  • Page 12 Always contact your RIPACK distributor for all maintenance work and spare parts. The RIPACK Series 3000 propane works with propane according to the principle of atmospheric air burners induced at high speed (diagram B). Ignition is performed using a piezoelectric lighter that is activated simultaneously with the release of gas activated by the trigger, which is the sole operating mechanism.
  • Page 13 PROPANE GAS APPLIANCE TECHNICAL CHARACTERISTICS : TABLE A SI SYSTEM Pressure (bar) 1,5 to 3,5 Power (kW) 45 to 80 Consumption (kg/h) 3,06 to 5,41 39 to 70 Air intake (m3/h) CO emission vol % 0,0052 to 0,0021 CO2 emission vol % 2,81 to 4 Noise level <...

  • Page 14: Operation

    FORBIDDEN WITH ALL USES LIQUID PROPANE GAS BOTTLE ON ITS SIDE (e.g Fuel forklift truck) The Ripack Series 3000 works with PROPANE gas in gas phase, contained in bottles of different capacities. Use the largest possible bottles available. Always connect and disconnect the bottles a long way from any flames and ignition points.

  • Page 15: Connections

    CONNECTIONS Before connecting the SECURIPACK to the gas bottle, make sure the sealing gasket is positioned correctly for systems using this type of joint. In other cases, make sure the fitting is clean. - 14 -...
  • Page 16 TIGHTNESS Use a bubble spray or some soapy water to check that there are no leaks in the parts that have been screwed together (bottle, hose and gun connections) IGNITING THE RIPACK SERIES 3000 POWER KNOB - 15 -...
  • Page 17 T H E H O S E B Y P R E S S I N G T H E TRIGGER. SPARE PARTS THE COMPANY RIPACK SHALL NOT BE HELD LIABLE IN THE EVENT THAT THE GUN IS DISMANTLED. Contact your dealer if the RIPACK Series 3000 needs to be dismantled.

  • Page 18: Examples Of Use

    You will find an accessory in the RIPACK product range that is designed specially to keep pallets lifted from the ground: the CALPACK (contact your dealer).
  • Page 19 You can also adjust the power of the RIPACK Series 3000 with the adjustable SECURIPACK controls. Once the lower part of the pallet has been shrink- wrapped, continue the operation for each side and move from top to bottom to cover the entire height.
  • Page 20 PACKAGING All kinds of objects with irregular shapes can also be packaged using shrink-wrap film. To obtain a good film joint, you need to provide a minimum overlap of 30 cm. Start by heating the film in a continuous movement and then put pressure on this part to connect the two parts together.

  • Page 21: Maintenance

    MAINTENANCE MAINTENANCE MALFUNCTION DIAGNOSIS : 3000 NO GAS COMING OUT OF YOUR RIPACK CYLINDER OPEN THE FAUCET VALVE BY 90° CLOSED TOO HIGH CLOSE THE FLOW RATE VALVE (The internal safety of the PURGE THE GAS gas cylinder can shut off...
  • Page 22 MALFUNCTION DIAGNOSIS : 3000 DIFFICULTIES IN IGNITION OF YOUR RIPACK CHANGE THE PIEZO PIEZO USED THE PIEZO LOSES ITS ELECTRICAL PROPERTIES WITH EACH SOLICITATION. SPARE PIEZO REFERENCE : 131003 BROKEN SPARK PLUG Remove the spark plug with flat pliers. Check the ceramic for cracks.
  • Page 23 MALFUNCTION DIAGNOSIS : 3000 DIFFICULTIES IN IGNITION OF YOUR RIPACK THE GAS FLOW RATE IS ABNORMALLY REDUCED (short and weak flame) The ignition is not easy to do The swivel is equipped with a grid filter. This can be blocked by...

  • Page 24: Spare Parts

    MALFUNCTION DIAGNOSIS : NO GAS CUT OFF AFTER RELEASING THE TRIGGER When the trigger i s r e l e a s e d , t h e c o m b u s t i o n n o z z l e s h o u l d shut off instantly.
  • Page 25 At the latest 5 years after first use Note: The date on the hose is the manufacture date. Only use a replacement hose supplied by RIPACK with its original fittings! 2. Check that the gas supply is shut off by releasing the trigger (see: no gas shut off on previous page).

  • Page 26: Warranty

    This ten-year warranty requires that the Ripack 3000 gun must be registered within three (3) months of purchase. The purpose of this warranty is to ensure the proper functioning of the Ripack 3000 gun that has suffered an internal breakdown. In order to assert his rights, the customer purchasing the Ripack 3000 gun must inform RIPACK®, in writing at the following...
  • Page 27 - Transformations of the product and in particular the modifications made or the addition of parts not coming from the manufacturer. - Failure to regularly maintain the product as described on page 20 of the RIPACK user manual, negligence or failure to monitor the product on the part of the purchasing customer.

  • Page 28: Exploded View

    3000 132054 - 27 -...
  • Page 29 FOR EXTENSIONS ON RIPACK SERIES 3000 CHECK YOUR PRESSURE REGULATOR NUMBER 134022 134023 134024 USBS 134025 - 28 -...

  • Page 30: Spare Parts List

    Code art. Désignation Piezo igniter for standard RIPACK 3000 , without extension 131003 Piezo igniter for RIPACK 3000 with extension 131072 Bumper 131169 133132 Wrench 19 133403 Trigger Allen key 3 133415 Molykote grease 137039 Ground pin 137081 Flat seal for SECURIPACK NF - UNI 140010 O-ring inside Ø...
  • Page 31 Déclare que l’appareil : Hereby declares that the appliance : Erklärt hiermit, dass das Gerät : RIPACK 3000 déstiné à la production d’une flamme produite par la combustion de gaz designed to produce a flame produced by the combustion of gas zue Erzeugung einer durch Verbrennung von Gas erzeugten Flamme bestimmt ist, est conforme aux dispositions du Règlement (UE) 2016/426 du 9 mars 2016 concernant les appareils...
