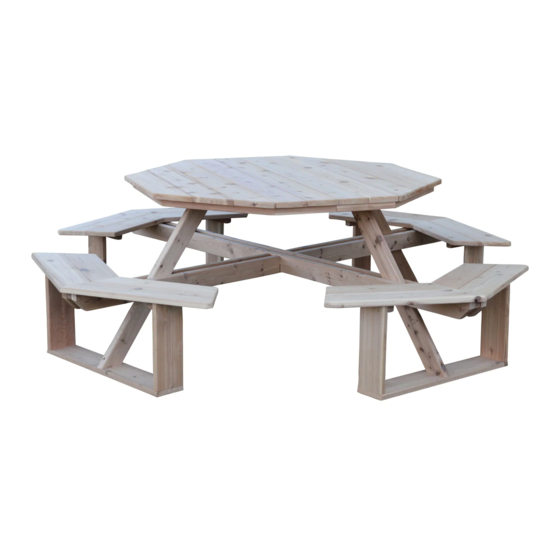

Assembly Instructions for Octagon Walk-In Table

Tools Needed:

Power drill or screwdriver

#2 Square Drive Bit

Hardware:

4- 2¾" Wafer Head Bolts

75- 2" Screws

1– Allen Wrench

Lay the table tops upside down and bolt together. Insert the four 2¾" bolts in the predrilled holes in one

side and turn into the threaded inserts with the Allen Wrench. (See photo 1.) Now attach the 2"x2"x36"

strips as shown. Place ends in the corners and center of strip against the preinstalled 2x2 strips on the

table top. Fasten with six 2" screws in each strip and turn into the table top. (See photo 2.)

Assemble the four bench legs. Take two leg supports and attach to a bench bottom. Put two 2" screws in

the predrilled holes in each end of the bench bottom and screw into one end of the leg supports. (See

photo 3.)

Predrilled holes in leg

supports belong at

Unfold a table leg assembly and place upside down

on a table. (See photo 4.) Take a bench top and

place upside down with the center 2x2 between the

2x4 leg support beams. Attach with two 2" screws on

each side. (See photos 4 & 5.)

photo 1

this end

photo 3

Step 3

Parts List:

Table Top—2 pieces

2"x2"x36" Strips—2 pieces

Table Leg Assemblies—2 pieces

Bench Tops—4 pieces

1"x5½"x14½" Bench Leg Supports—8 pieces

1"x5½"x32" Bench Bottoms—4 pieces

Step 1

Step 2

*Keep 2x2 even with outside edge of leg supports*

photo 2

photo 4

photo 5

Page 1 Assembly Instructions for Octagon Walk-In Table Tools Needed: Parts List: Power drill or screwdriver Table Top—2 pieces #2 Square Drive Bit 2”x2”x36” Strips—2 pieces Table Leg Assemblies—2 pieces Hardware: Bench Tops—4 pieces 4- 2¾” Wafer Head Bolts 1”x5½”x14½” Bench Leg Supports—8 pieces 75- 2”...
Page 2 Step 4 Now take the bench leg assemblies from step 2 and place them on the seat. Align with the outside edges of the 2x2’s. Attach with two 2” screws on each end. (See photos 6 & 7.) photo 6 photo 7 Step 5 Fold the center leg down and attach to the bench bottom.
