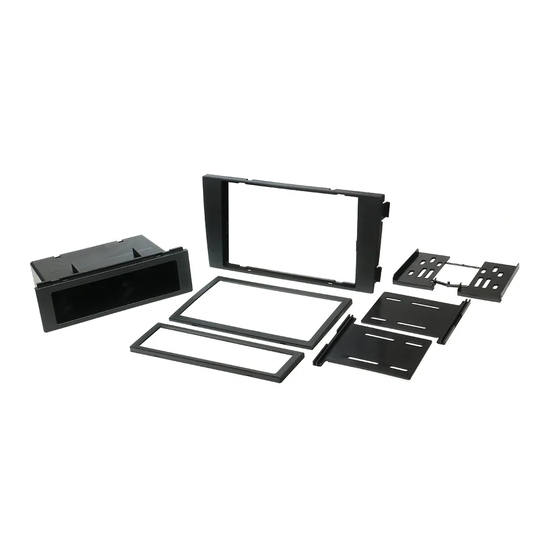

2000-UP SELECT AUDI A6
ALL-IN-ONE, SINGLE DIN & DOUBLE-DIN KIT
5933
MOUNTING
PANEL
5984
SINGLE-DIN
TRIM RING
CAR STEREO CONNECTORS
PROVIDE EASY CONNECTION OF YOUR CAR
STEREO TO FACTORY WIRING HARNESS.
VW03B
2002-UP Volkswagen and BMW
INTRODUCTION / PRELIMINARY
Thank you for purchasing the Scosche AU2380B Kit. This Kit was manufactured with the highest of quality
standards.
CAUTION: DISCONNECT YOUR VEHICLE'S NEGATIVE BATTERY TERMINAL BEFORE THE
INSTALLATION TO HELP PREVENT ELECTRICAL DAMAGE. WE RECOMMEND THE USE OF A
VOLT/OHM METER OVER A TEST LIGHT TO CHECK WIRING. A TEST LIGHT OR GROUNDED
WIRE PROBE CAN CAUSE DAMAGE TO THE VEHICLE'S COMPUTER AND/OR DIAGNOSTIC
SYSTEMS. AVOID ALL FACTORY AIR BAG WIRING - AIR BAGS CAN ACCIDENTALLY DEPLOY
CAUSING SERIOUS INJURY OR DEATH.
NOTES:
• See your vehicle's instructions for any special tools your installation might require.
• Read all instructions accompanying your car stereo/cassette player for proper wiring and mounting
instructions.
Using European radio removal tools (4), slide in to the (4) slots on the factory radio. Pull out, disconnect
and remove
This instruction booklet is based on carefully documented data and research of automobile dash disassembly, wire
harness/codes and information pertaining to installation of this kit (AU2380B) in 2000-Up Select Audi A6 Vehicles.
Scosche Industries, Inc. can not be held responsible for discrepancies/inconsistencies that may occur due to the
automobile manufacturing changes or options, or damage that may occur in the automobile during the installation of
components while using this booklet.
If you have any further questions, call our toll free technical help line at:
©
2006 SCOSCHE INDUSTRIES, INC.
5986
POCKET
5985
SINGLE-DIN
TRIM RING
FACTORY WIRING CODES
RADIO DISASSEMBLY
LIABILITY DISCLAIMER
AU2380B
5742 L & R
SINGLE-DIN
ISO BRACKETS
6068 L & R
SINGLE-DIN
ISO BRACKETS
1-800-621-3695x3
SI 07/06 - AU2380B (3000003)
