PRODUCT OVERVIEW

The PRESSURE UNIT is a stand-alone pressure sensor allowing a fast and
accurate measure of the pressure applied in a fluidic path. The product
range can detect values from 69 mbar (1 psi) to 7000 mbar (100 psi). The
sensor can be directly plugged to a PC with USB connection and display in
live the measurement on Fluigent All-in-One software interface. The user's
can output this value for custom software application using the Software
Development Kit.
1

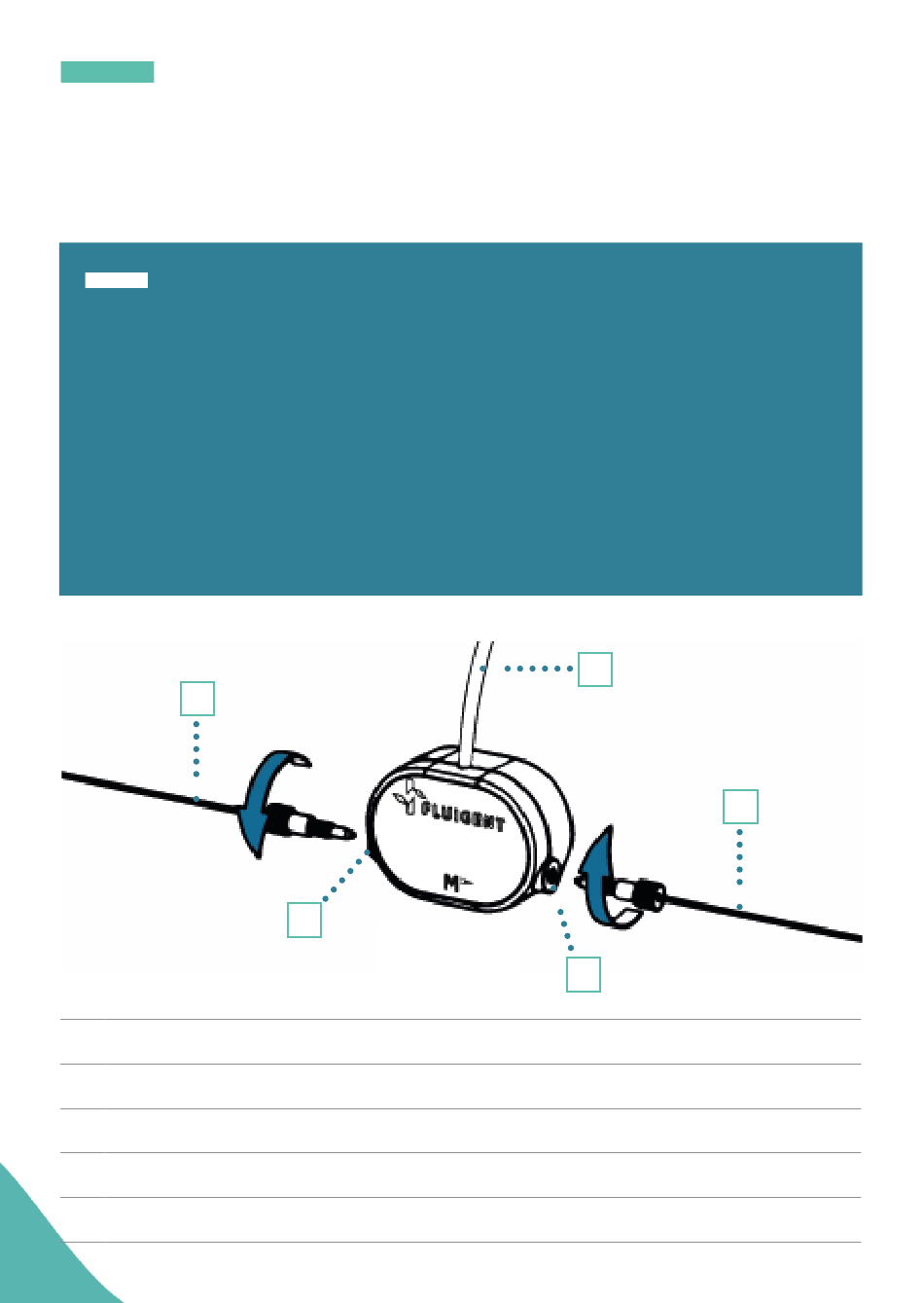

1 Input tubing
2 Sensor inlet
3
Sensor outlet
4
Outlet tubing
5 USB cable
6
2
to connect to the sensor inlet
screw the connectic to the port
screw the connectic to the port
to connect to the sensor outlet
to connect to the PC USB port
