Micro L
Head
Instructions
Ver. 20.1.4

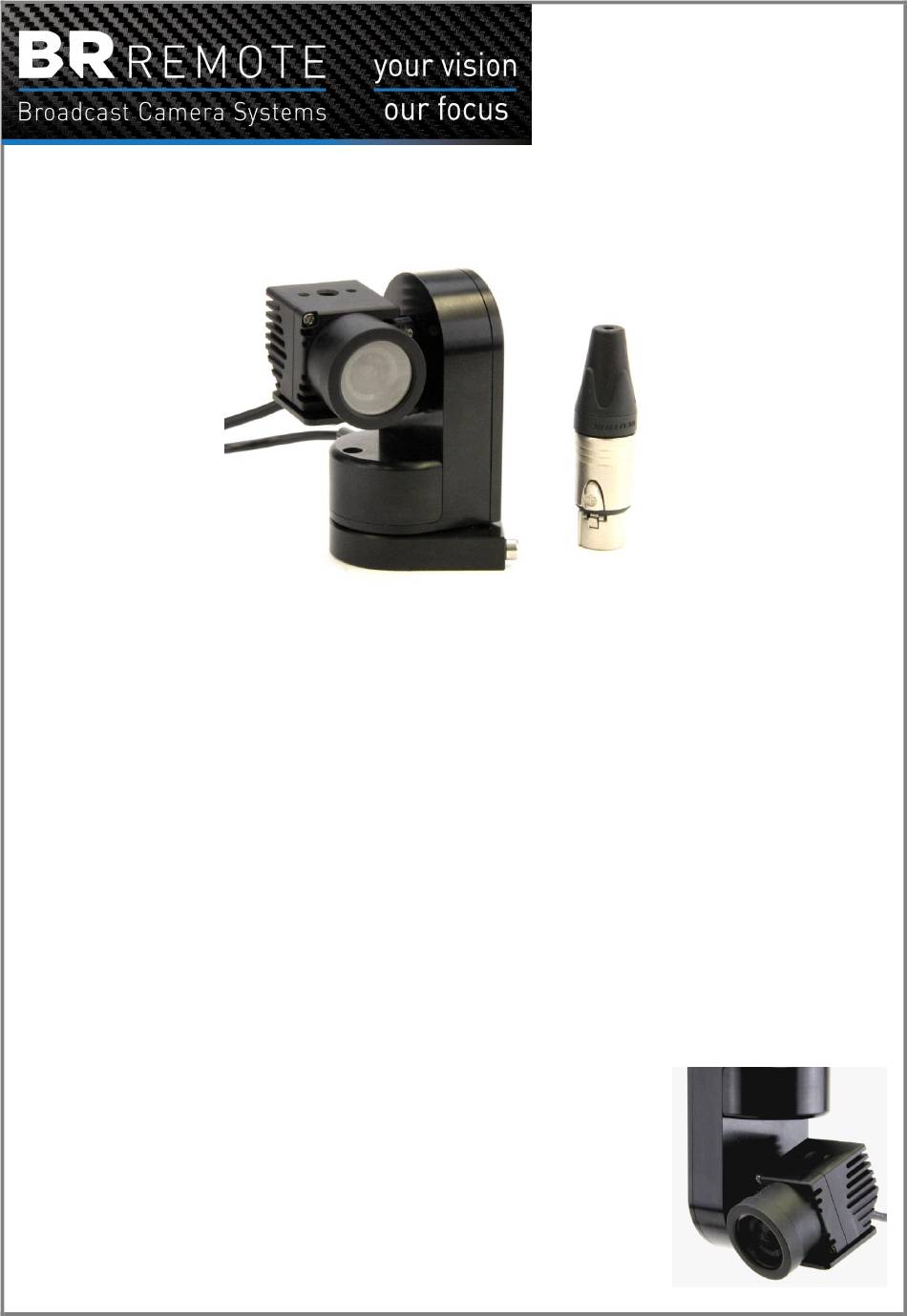

The Micro L Head (µL) can be controlled by any BR Remote controller. These generate
RS485 data which can be connected directly to the Micro L Head or sent via an IP network
with IP adaptors. The RS485 data can be sent up to 1km on a twisted pair cable.
Power for the µL can be up to 35v so very long ranges can be achieved by increasing the
voltage to the remote end. Inside the unit is a 12v regulated supply for the camera so it
doesn't matter what voltage you send to the µL, the camera will always have 12v.
Both power and RS485 control data are input via the 4pin Lemo connector on the base.
Currently, the cameras supported with control protocols are Marshal (VISCA) and
Dreamchip. The control protocols for these cameras are embedded in the µL and can be
connected to the camera.
The camera itself can then be controlled via BR Remote
controllers. The Camera CCU output is RS422 and is on the 7pin Lemo connector.
There are various widths of camera plate available; 40mm, 45mm and 60mm. Choose the
one that best suits the camera you are using.
As standard the µL is weatherproof and can be used outside. This makes a perfect match for
the small weatherproof cameras that are readily available.
There are slipping clutches on both pan and tilt which prevent damage
to the mechanics if it is moved inadvertently during rigging or if it hits
an obstruction during use.
And if you want to hang it upside down – no problem. There are 3x
M4 mounting threads as well as a ¼" camera thread on the base.
Advertisement
Table of Contents
Related Manuals for BR Remote Micro L Head
Summary of Contents for BR Remote Micro L Head
- Page 1 The Micro L Head (µL) can be controlled by any BR Remote controller. These generate RS485 data which can be connected directly to the Micro L Head or sent via an IP network with IP adaptors. The RS485 data can be sent up to 1km on a twisted pair cable.
- Page 2 Joystick Control Like all BR Remote heads, there are 10 ‘gears’. Some controllers can select any gear but others can only select a smaller number of gears. The movement is fully proportional to the joystick displacement in all gears. If the ‘turbo’ button is enabled on the controller this will set the speed to the fastest gear whilst the button is held down.
- Page 3 Cable Management On the pan cover, under the camera plate are two M2.5 threaded holes. These can be used to attach cable management clips. Pan & Tilt Clutch Adjustment Both the pan and the tilt clutches can be adjusted if needed. To adjust the pan clutch, remove the Pan Cover which is secured with a single screw.
- Page 4 Safety There are 2 M4 bolts fitted to the base which should be used for a safety bond if the unit is rigged above head height. Also on the base is a standard ¼” camera mounting thread and 3x M4 threads. Any of these can be used for mounting the unit to a suitable platform.
- Page 5 Camera Specific Connections For Marshall cameras, the table below is correct if a Male connector is fitted on the camera. ie. if the connector on the camera itself has pins – like in the picture. Marshall Cameras HR-10A-10P- Hard wired cable assembly into camera 12S(73) Core Colour Function...
- Page 6 Dreamchip Cameras HR-10A-7P-6S(73) ATOM one Function Lemo 7 pin No. Hirose Pin No. Core Colour Alternative Colour Blue Brown Data A (+) Green Orange Data B (-) Yellow Black Power 6-36v Looped to Pin 2 White Looped to pin 1 Black For Dreamchip cameras the available controllable functions are;...
