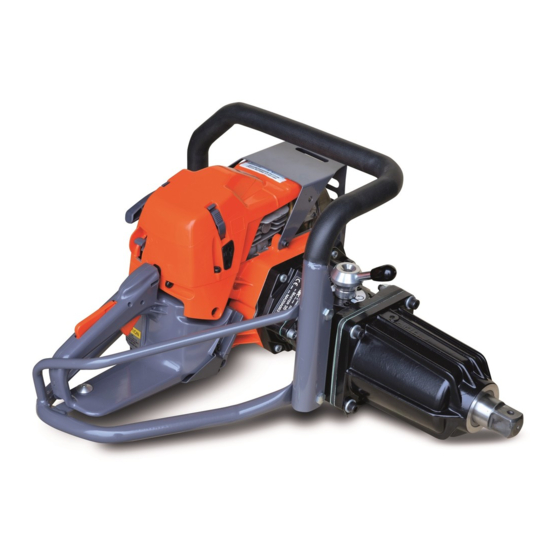

Airtec MASTER 35 Manual
Petrol/gasoline impact wrench
Hide thumbs
Also See for MASTER 35:
- Maintenance manual (29 pages) ,
- Maintenance manual (25 pages) ,
- Manual (25 pages)
Related Manuals for Airtec MASTER 35
Summary of Contents for Airtec MASTER 35
- Page 1 ® MASTER 35 PETROL/GASOLINE IMPACT WRENCH Couper Street, Glasgow G4 0DL United Kingdom Tel: 44(0)141 552 5591 Fax: 44(0)141 552 5064 E-mail: enquiries@airtecinternational.co.uk...
- Page 2 New Master 35 Petrol/Gasoline Impact Wrench DECLARATION OF CONFORMITY To whom it may concern: We Airtec International Ltd Couper Street GLASGOW G4 0DL United Kingdom Declare that we are solely responsible for the supply/manufacture of the Master 35® Petrol/Gasoline Impact Wrench 1”...
-
Page 3: Table Of Contents
Workshop Tools Accessories © Copyright Airtec International Ltd ". All Rights Reserved. No reproduction of whole or part of this Manual is allowed without written Permission of Copyright. Airtec International Limited, Couper Street, Glasgow G4 0DL, U.K. New Edition June 2020... - Page 4 New Master 35 Petrol/Gasoline Impact Wrench USES The Master Impact Wrench is ideal for removing/fitting Chairscrews (Lag Screws) and Fishplates (Joint Bars) where track possession is not possible, if there are access difficulties or if other sources of power e.g.
-
Page 5: Safety Precautions
New Master 35 Petrol/Gasoline Impact Wrench SAFETY PRECAUTIONS BEFORE using the Impact Wrench read these safety instructions CAREFULLY and ensure you fully UNDERSTAND them. DO NOT allow untrained personnel to use the Wrench. 1. Wear suitable PROTECTIVE CLOTHING, safety boots, goggles, gloves and ear protection 6. -
Page 6: Operating Controls - Illustrations
OPERATING CONTROLS - ILLUSTRATIONS Control Switch (Choke/Run/Stop) Socket Square Drive - Anvil De-Compression Button Oil Filler Plug with Sightglass Recoil Starter Handle Fuel Filler Cap Throttle Trigger Location of Serial Number Label Trigger Lock Air Filter Cover Clips Gear Lever... - Page 7 Comes out Replace when worn. Automatically when Motor Starts. Use our Master 35 No Go Gauge to check if DO NOT use when Engine is warm Anvil and Sockets are worn and need to be replaced. 3. RECOIL STARTER HANDLE...
-
Page 8: Start/Stop Operation
New Master 35 Petrol/Gasoline Impact Wrench START/STOP OPERATION 1. FUEL MIXTURE Repeat step 3 Mix = 1:25 Mineral oil A few pulls are sufficient Mix = 1:50 Synthetic oil to start the engine. If the engine “dies”, with Unleaded Petrol/... -
Page 9: Basic Workshop Safety Rules
New Master 35 Petrol/Gasoline Impact Wrench BASIC WORKSHOP SAFETY RULES GUIDE Only qualified trained Fitters should attempt to service or repair this machine. Your personal safety and those of your fellow workers is your responsibility. Please observe all local and national regulations on safety. The undernoted list should be used as a guide. -
Page 10: Routine Service
New Master 35 Petrol/Gasoline Impact Wrench ROUTINE SERVICE (See Exploded Diagram Drawings on Pages 9 to 13 and 15 to 17) 1. REPLACING SPARK PLUG 4003.5010 5. REPLACE GEAR BOX OIL Lift two Cover Clips and lift off Filter Cover Remove three Screws 2300.0512 in Gear... -
Page 11: Motor - Repairs
New Master 35 Petrol/Gasoline Impact Wrench MOTOR – REPAIRS (See Exploded Diagram Drawings on Pages 9 to 13 1. REMOVING TOP COVER 4003.3006 5. Continued Remove Muffler Guard 2650.1660 by loosening If engine cuts out turn idle screw in and repeat four Screws 2300.0520. - Page 12 New Master 35 Petrol/Gasoline Impact Wrench MASTER MOTOR PARTS LIST - CARBURETTOR Ref No Part No. Description 4003.4010 Spring 4003.4020 Min. Adjustment Screw 4003.4030 4003.4040 Repair Kit 4003.3220 Carburettor 4003.4050 Max Adjusting Screw...
- Page 13 New Master 35 Petrol/Gasoline Impact Wrench MASTER MOTOR PARTS LIST – CYLINDER & PISTON Ref No Part No. Description Ref No Part No. Description 4003.5010 Spark Plug 4003.3190 Gasket Kit 4000.0885 Washer 4003.0050 Spring 4003.5030 Screw 4003.5170 Piston Ring Decompression Button 4003.0140 Spring Clip...
- Page 14 New Master 35 Petrol/Gasoline Impact Wrench MASTER MOTOR PARTS LIST – FUEL TANK Part No. Description 4003.0470 ‘O’ Ring 4003.6020 Fuel Filler Cap 4003.6030 Throttle Cable 4003.6040 Antivibration Bush 4003.6050 Screw 4003.0870 Rubber Mount 4003.6070 Cam 4003.6080 Throttle Lever 4003.6090 Spring 4003.6100 Lever...
- Page 15 New Master 35 Petrol/Gasoline Impact Wrench MASTER MOTOR PARTS LIST – STARTER ASSEMBLY Part No. Description 4003.2010 Screw 4003.0100 Washer 4003.2030 Spring 4003.2040 Coil 4003.0040 Nut 4003.0670 Washer 50.00361 Washer 4003.0440 Flywheel Ratchet Assembly 4003.2090 Flywheel Kit 4003.2100 Flange 4003.0690 Screw 4003.0700 Washer...
- Page 16 New Master 35 Petrol/Gasoline Impact Wrench MASTER MOTOR PARTS LIST – TOP COVER & CRANKCASE Ref No Part No. Description Ref No Part No. Description 4003.3010 Filter Cover 4003.3170 Crankcase 4003.3020 Clip 4003.3180 Seal 4003.2070 Screw 4003.3190 Gasket Kit 4003.3040 Deflector 4003.3200 Screw...
-
Page 17: Impact Unit - Repairs
New Master 35 Petrol/Gasoline Impact Wrench IMPACT UNIT – REPAIRS 15 to 17 See Exploded Diagram Drawings on Pages 1. REMOVING CLUTCH SUPPORT FLANGE 5. DISMANTLING COMPLETE HAMMER 035309 2600.0460 Place complete Hammer Assembly length After completing section 10 Motor Repairs Page ways in a vice with one hole uppermost. - Page 18 New Master 35 Petrol/Gasoline Impact Wrench IMPACT UNIT, GEARBOX AND CARRYING HANDLE Ref No Qty Part No. Description Ref No Part No. Description 4003.2050 Screw 2870.0610 Impact Assembly 2700.0200 Retention 2650.1660 Exhaust Guard 2580.0050 Fixing Screw 2800.4653 Compl. Anti Vibration Handle 2310.2061 Locknut...
- Page 19 New Master 35 Petrol/Gasoline Impact Wrench IMPACT UNIT AND GEARBOX – DETAILED...
- Page 20 New Master 35 Petrol/Gasoline Impact Wrench IMPACT UNIT AND GEARBOX – DETAILED Part No. Description Part No. Description 035560 Flange Gasket 035523 Spring 035562 Gasket 035111 Gear Lever Flange 2500.2065 Gasket 035107 Reverse Lever 035115 Flange Gasket 035554 2300.0851 Screw...
-
Page 21: Troubleshooting Advice
New Master 35 Petrol/Gasoline Impact Wrench TROUBLESHOOTING ADVICE WARNING Always stop Impact Wrench and disconnect Spark Plug before carrying out any of the following procedures unless they require operation. If these solutions do not solve the problem please contact your approved Service Centre. -
Page 22: Workshop Tools
New Master 35 Petrol/Gasoline Impact Wrench WORKSHOP TOOLS 40000309 ELECTRONIC REV. COUNTER 40000307 PISTON LOCK/STOP 40000313 COMPRESSION TEST KIT 40028059 COIL/FLYWEHEEL GAUGE 40000308 FLYWHEEL PULLER 40000355 PRESSURE GAUGE 40028090 EXHAUST FLANGE 40000306 SPANNER FOR RUBBER MOUNTS 40028060 INTAKE FLANGE 40000303 SCREWDRIVER FOR CARB ADJUSTMENT WORKSHOP TOOLKIT 4000.0290... - Page 23 New Master 35 Petrol/Gasoline Impact Wrench ACCESSORIES – RAILWAY QUALITY TOOL CARRIERS & ACCESSORIES VERTICAL HORIZONTAL Three versions for Standard, Narrow and Broad Gauge track METAL CARRYING BOX NO GO GAUGE PINS, RINGS & MAXI CLIPS Check for wear on Sockets...
- Page 24 New Master 35 Petrol/Gasoline Impact Wrench Couper Street, Glasgow G4 0DL United Kingdom Tel: 44(0)141 552 5591 Fax: 44(0)141 552 5064 E-mail: enquiries@airtecinternational.co.uk Website: www.airtecinternational.co.uk...
