Potter LED-16 Series Quick Start Manual

Features

• Capable of displaying alarms, supervisory, trouble status for 16
zones
• System Silence and Reset buttons
• Common LEDs for status indication
• Maximum 31 LED-16s for:
PFC-6800, P400(R), IPA-4000, and AFC-1000.
• Maximum 10 LED-16s for:
PFC-6030/6075(R)/6200, P100/200/300, IPA-60, IPA-100, AFC-
50, AFC/ARC-100 and PFC-4064
• Maximum P-Link wire length of 6,500 feet
• available in four colors
• Product includes a 5 year warranty
• UUKL Listed for Smoke Control

Description

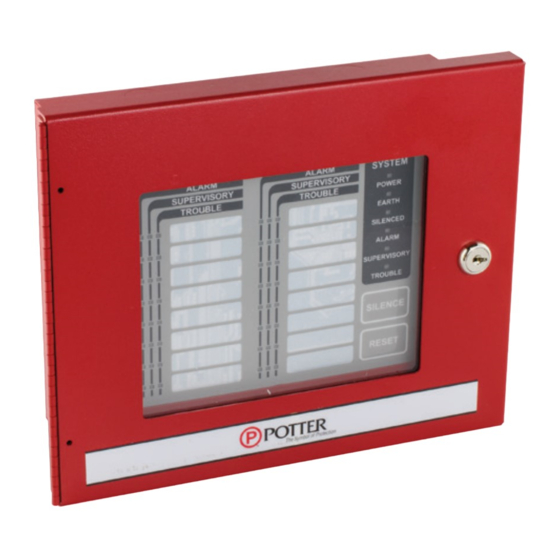

The LeD-16 Series is a LeD remote annunciator for various potter
addressable fire control panels. The LED-16 Series communicates
using a RS-485 (P-Link) connection to the main panel providing zone
specific indication of Alarm, Supervisory, Trouble conditions.
The LeD-16 Series features 2 slide-in labels allowing each of the 16
zones to be customized for any application. It can be flush mounted
or surface mounted. It can be mounted on a single gang electrical box
or a four-square electrical box. The annunciator utilizes a sheet metal
enclosure secured with a Potter lock.
Potter Electric Signal Company, LLC

Technical Specifications

*Legacy Product
NOTE:
power must be 16 VDC–33 VDC and must be power limited.
• St. Louis, MO •
•
8830096 - Rev D
LED-16 Series
LED-16 Flush Mount
Standby Current 20 ma
Alarm Current 25 ma
Operating Temperature 0°C-49°C (32°F-120°F)
Operating Humidity Range 0 to 93% (non-condensing)
Maximum Wire Length 6500 ft.
Maximum Annunciators 31
Flush Mount Size
11 3/8" x 9-1/4" x 7/8"
(WxHxD)
Surface Mount Size
11 3/8" x 9-1/4" x 3 1/8"
(WxHxD)
Wire Gauge 12 AWG-22 AWG
IPA Series
AFC/ARC Series
Compatible Panels PFC-4064
p-Series*
PFC-6000 Addressable Series*
LED PWR can be provided by any fire listed source. Output
Phone: 800-325-3936
12/18
LED Annunciator
LED-16 Surface Mount
7305-0328:0200 UOXX.S2930
• www.pottersignal.com
page 1 OF 2
