The SSX-81 is a more powerful version of the SSX-51. The SSX-81 is an indoor/outdoor, self-contained, 25 watt, dual tone armored siren.
The full featured siren consists of a dual tone that delivers a steady or warble sound output (steady overrides warble), light weight, rust-proof,
aluminum die-cast housing, a 127 dB output siren driver, and a dual action normally open reed plunger switch for normally closed loop. The
armored siren does not require additional modules, metal boxes, tamper switches, special tools, or training to install and operate. The SSX-81

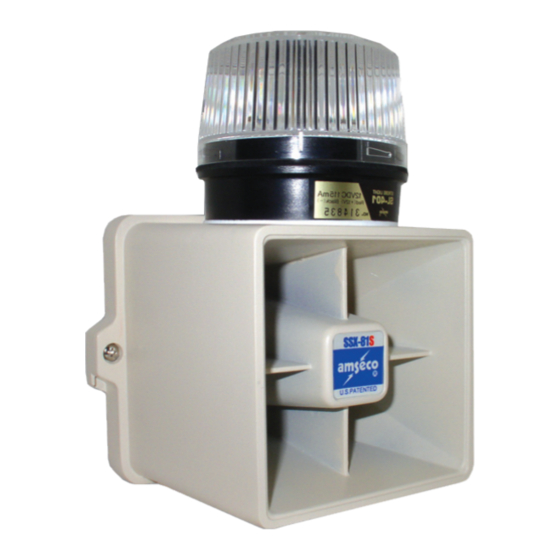

series comes completely assembled and ready for installation. The SSX-81S Siren Strobe combination is also available. It is a high quality, high
output siren with a 60,000 candle power strobe with available lens colors: amber, blue, clear, and red.
The SSX-81 series is ideally suited for noisy, heavy machinery areas, warehouses, loading docks, print shops, busy production floors, or for
indoor/outdoor applications where high quality and high output warning is required.
Model
Input voltage
Number
SSX-81 6 - 12V DC
SSX-81SA
SSX-81SB
12V DC
SSX-81SC
SSX-81SR
Potter Electric Signal Co., LLC • St. Louis, MO • Cust Service: 866-240-1870 • Tech Support:866-956-1211• Canada 888-882-1833 • www.pottersignal.com
PRINTED IN USA
Current Operating Volt-
Draw age Range
1.20 Amps 4.8 - 14.4V DC
1.31 Amps 9.6 - 14.4V DC
MKT. #8850065 - REV B
SSX-81/SSX-81S
ARMORED SIREN/SIREN STROBE
• Indoor/outdoor 25 watt armored siren
• 127dB sound output
• Dual tone: Steady and warble
• Rust-free aluminum die-cast housing
• Polarized 12VDC input with reverse polarity protection
• Dual-action reed tamper switch
• Up-front screw terminals for easier field wiring
• Suitable with use for most control panels
• Mounts directly to the wall or to 4" square back box
• 60,000 candle power strobe
• Available strobe lens colors: amber, blue, clear, red
Printed Circuit Board
Mounting Holes for
4" Square Box
Steady and Warble Tone
Aluminum Diaphram
Gasket
Dual Action Reed Switch
Die-Cast Aluminum Housing
Strobe Specifications
Strobe
Lens Flash
Candle
Color Rate
Power
- - -
Amber
20 - 100
Blue
60,000 times/
Clear
min.
Red
2/10
Operating
Siren Specifications Temperature
Tamper
Sound
Contact
Output
Capacity
0.3A @ -4°F - 140°F
127dBA
12V DC -20°C - 60°C
Range
