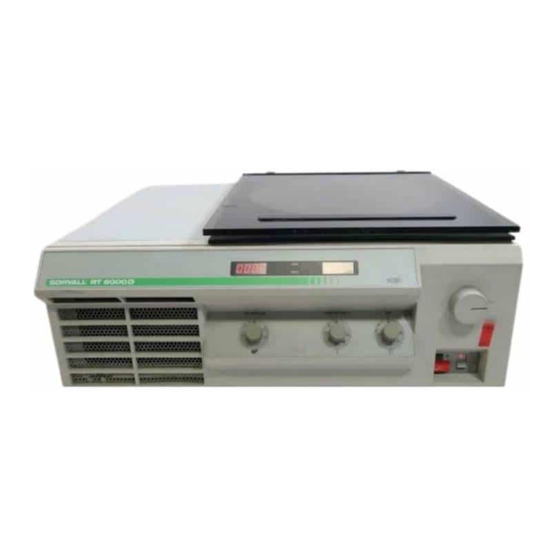

Sorvall RT/T6000D Service Manual
  1. Manuals
  2. Brands
  3. Sorvall Manuals
  4. Laboratory Equipment
  5. RT/T6000D
  6. Service manual

Sorvall RT/T6000D Service Manual

Tabletop centrifuges
Hide thumbs
Table of Contents

Advertisement

Quick Links

Parts Section
Updated Feb '02

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RT/T6000D and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Sorvall RT/T6000D

Summary of Contents for Sorvall RT/T6000D

  • Page 1 Parts Section Updated Feb '02...
  • Page 160 ® SORVALL CENTRIFUGES RT6000 and T6000 CENTRIFUGES 7-3. Illustrated Parts This section contains illustrations of the centrifuge assemblies. Each illustration identifies replaceable parts by item numbers. The item numbers are keyed to accompanying parts lists, Which provide part numbers and descriptions of the items.
  • Page 161 ® SORVALL CENTRIFUGES RT6000 and T6000 CENTRIFUGES Table 7-3. Suggested Spare Parts Part Number Description 07887 Motor Assembly, 115 V 07587 RT6000 & T6000 Gyro Assembly, W/O Pulley 07841 Temperature Board Assembly (RT6000) 07848 Motor Control Board Assembly (RT6000) 12294...
  • Page 162 ® SORVALL CENTRIFUGES RT6000 T6000 CENTRIFUGES Table 7-4. Parts: RT6000 (Keyed to figure 7-7) ITEM DESCRIPTION QTY. 07524 Cover, Access 07684 Seal, Cover, Insulation 67301 Transformer, Power 67351 Screw, Phillips, Pan Head, No. 8-32 x 3/8" Long 07959 Brake Resistor 63936 Lockwasher, External Tooth, No.
  • Page 163 ® SORVALL CENTRIFUGES RT6000 T6000 CENTRIFUGES Table 7-4. Parts: RT6000 (Keyed to figure 7-7) (continued ITEM DESCRIPTION QTY. 07628 Lamp Holder Assembly, Door Open 67372 Lamp 67380 Relay, 24 Vdc, 50/60 Hz 3 PDT, 3/16" Contacts 63085 Flatwasher, SST, 0.304 O.D. x 0.032" Thick 63011 Lockwasher, No.
  • Page 165 ® SORVALL CENTRIFUGES RT6000 and T6000 CENTRIFUGES Table 7-5. Parts: T6000 (keyed to figure 7-8) ITEM DESCRIPTION QTY. 07524 Access Cover 07684 Seal, Cover, Insulation 67301 Transformer, Power 67351 Screw, Phillips, Colored, Pan Head, No. 8-32 x 3/8" Long 66665...
  • Page 166 ® SORVALL CENTRIFUGES RT6000 and T6000 CENTRIFUGES Table 7-5. Parts: T6000 (keyed to figure 7-8) (continued) ITEM DESCRIPTION QTY. 67874 Velcro® Fastener, Hook 7 inches 60436 Louver, 14 Mesh, 3" diameter 07628 Lamp Holder Assembly, Door Open 67372 Lamp 67380 Relay, 24 Vdc.
  • Page 167 ® SORVALL CENTRIFUGES RT6000 and T6000 CENTRIFUGES Table 7-5. Parts: T6000 (keyed to figure 7-8) (continued) ITEM DESCRIPTION QTY. 61437 Screw, Machine, Pan Head, Slotted, No. 8-32 x 1/4" Long 63936 Lockwasher, External Toth, No. 8 63022 Lockwasher, Split, 5/16 68687 Screw, Cap, Hex Head Socket, 5/16-18 x 1-1/2"...
  • Page 169 ® SORVALL CENTRIFUGES RT6000 and T6000 CENTRIFUGES Table 7-6. Parts: Drive Assembly PN 07588 (keyed to figure 7-9) ITEM DESCRIPTION QTY. 07528 Plate Assembly, Drive 68658 Belt, V-drive, 3/16 wide x 29.5" Long, Polyflex 67399 Spring, Extension, 0.360 O.D. x 1.75 Long x 0.058"...
  • Page 170 ® SORVALL CENTRIFUGES RT6000 and T6000 CENTRIFUGES Table 7-6. Parts: Drive Assembly PN 07588 (keyed to figure 7-9) (continued) ITEM DESCRIPTION QTY. 66680 Screw, Cap, Socket Hex Head, UNC, No. 10-24 x 3/8" Long 63019 Lockwasher, Split, 1/4, SST, 0.047" Thick...
  • Page 172 ® SORVALL CENTRIFUGES RT6000 and T6000 CENTRIFUGES Table 7-7. Refrigeration System: RT6000 Centrifuge (keyed to figure 7-10) ITEM DESCRIPTION QTY. 83185 Condenser Assembly, 60 Hz, 115 Vac 83184 Condenser Assembly, 50 Hz, 200 Vac Transformer Assembly, 50 Hz only (Not available)
  • Page 174 ® SORVALL CENTRIFUGES RT6000 and T6000 CENTRIFUGES Table 7-8. Parts: Console Assembly (keyed to figure 7-11) ITEM DESCRIPTION QTY. Console Assembly • RT6000 • T6000 07514 Console (Not available) 67325 Lens Cap, Green (Not available) ---- Knob, Timer • 55035 60 Hz •...
  • Page 175 ® SORVALL CENTRIFUGES RT6000 and T6000 CENTRIFUGES Table 7-8. Parts: Console Assembly (keyed to figure 7-11) (continued) ITEM DESCRIPTION QTY. 60074 Nut, Hex, SST, No. 6-32 67692 Fastener, Floating Treelok 67882 Cord Stock, 1/8" Diameter 67717 Loctite® 495 A/R* 12216** Temperature Control P.C.
  • Page 177 ® SORVALL CENTRIFUGES RT6000 and T6000 CENTRIFUGES Table 7-8. Parts: Lid Latch Mechanism (keyed to figure 7-12) (continued) ITEM DESCRIPTION QTY. 07821 Latch Assembly without Interlock 67350 Retaining Ring, External, Carbon Steel, 0.219 shaft diameter 07543 Linkage, Latch 64591 Lubricant, Plastilube®...
  • Page 207 ® SORVALL CENTRIFUGES RT6000B and T6000B CENTRIFUGES Serial Numbers Below 9101800 8-3. Illustrated Parts This section contains illustrations of the centrifuge assemblies. Each illustration identifies replaceable parts by item numbers. The item numbers are keyed to accompanying parts lists, Which provide part numbers and descriptions of the items.
  • Page 208 ® SORVALL CENTRIFUGES RT6000B and T6000B CENTRIFUGES Serial Numbers Below 9101800 Table 8-3. Suggested Spare Parts Part Number Description 07887 Motor Assembly, 115 V 07885 Gyro Assembly, Complete 07841 Temperature Board Assembly 07848 Motor Control Board Assembly 12294 Brush Replacement Kit...
  • Page 209 ® SORVALL CENTRIFUGES RT6000B and T6000B CENTRIFUGES Serial Numbers Below 9101800 Table 8-4. Parts: RT6000B (SN Below 9101800) (Keyed to figure 8-9) ITEM DESCRIPTION QTY. 07524 Cover, Access 07684 Seal, Cover, Insulation 67301 Transformer, Power 67351 Screw, Phillips, Pan Head, No. 8-32 x 3/8" Long...
  • Page 210 ® SORVALL CENTRIFUGES RT6000B and T6000B CENTRIFUGES Serial Numbers Below 9101800 Table 8-4. Parts: RT6000B (SN Below 9101800) (Keyed to figure 8-9) (continued ITEM DESCRIPTION QTY. 07628 Lamp Holder Assembly, Door Open 67372 Lamp 67380 Relay, 24 Vdc, 50/60 Hz 3 PDT, 3/16" Contacts 63085 Flatwasher, SST, 0.304 O.D.
  • Page 212 ® SORVALL CENTRIFUGES RT6000B and T6000B CENTRIFUGES Serial Numbers Below 9101800 Table 8-5. Parts: T6000B (SN Below 9101800) (keyed to figure 8-10) ITEM DESCRIPTION QTY. 07524 Access Cover 07684 Seal, Cover, Insulation 67301 Transformer, Power 67351 Screw, Phillips, Colored, Pan Head, No. 8-32 x 3/8" Long...
  • Page 213 ® SORVALL CENTRIFUGES RT6000B and T6000B CENTRIFUGES Serial Numbers Below 9101800 Table 8-5. Parts: T6000B (SN Below 9101800) (keyed to figure 8-10) (continued) ITEM DESCRIPTION QTY. 67874 Velcro® Fastener, Hook 7 inches 60436 Louver, 14 Mesh, 3" diameter 07628 Lamp Holder Assembly, Door Open...
  • Page 214 ® SORVALL CENTRIFUGES RT6000B and T6000B CENTRIFUGES Serial Numbers Below 9101800 Table 8-5. Parts: T6000B (SN Below 9101800) (keyed to figure 8-10) (continued) ITEM DESCRIPTION QTY. 61437 Screw, Machine, Pan Head, Slotted, No. 8-32 x 1/4" Long 63936 Lockwasher, External Toth, No. 8...
  • Page 216 ® SORVALL CENTRIFUGES RT6000B and T6000B CENTRIFUGES Serial Numbers Below 9101800 Table 8-6. Parts: Drive Assembly, PN 07884 (keyed to figure 8-11) ITEM DESCRIPTION QTY. 07528 Plate Assembly, Drive 68658 Belt, V-drive, 3/16 wide x 29.5" Long, Polyflex 67399 Spring, Extension, 0.360 O.D. x 1.75 Long x 0.058"...
  • Page 217 ® SORVALL CENTRIFUGES RT6000B and T6000B CENTRIFUGES Serial Number Below 9101800 Table 8-6. Parts: Drive Assembly, PN 07884 (keyed to figure 8-11) (continued) ITEM DESCRIPTION QTY. 63019 Lockwasher, Split, 1/4, SST, 0.047" Thick 61141 Nut, Hex, SST, 1/4-20 65548 Shock Mount...
  • Page 219 ® SORVALL CENTRIFUGES RT6000B and T6000B CENTRIFUGES Serial Number Below 9101800 Table 8-7. Refrigeration System: RT6000B Centrifuge (keyed to figure 8-12) ITEM DESCRIPTION QTY. 83185 Condenser Assembly, 60 Hz, 115 Vac 83184 Condenser Assembly, 50 Hz, 200 Vac Transformer Assembly, 50 Hz only (Not available)
  • Page 221 ® SORVALL CENTRIFUGES RT6000B and T6000B CENTRIFUGES Serial Numbers Below 9101800 Table 8-8. Parts: Console Assembly (keyed to figure 8-13) ITEM DESCRIPTION QTY. Console Assembly • 07899 RT6000B • 07900 T6000B Console (Not available) 07514 67325 Lens Cap, Green (Not available)
  • Page 222 ® SORVALL CENTRIFUGES RT6000B and T6000B CENTRIFUGES Serial Numbers Below 9101800 Table 8-8. Parts: Console Assembly (keyed to figure 8-13) (continued) ITEM DESCRIPTION QTY. 60074 Nut, Hex, SST, No. 6-32 67692 Fastener, Floating Treelok 67882 Cord Stock, 1/8" Diameter 67717 Loctite®...
  • Page 224 ® SORVALL CENTRIFUGES RT6000B and T6000B CENTRIFUGES Serial Numbers Below 9101800 Table 8-9. Parts: Lid Latch Mechanism (keyed to figure 8-14) ITEM DESCRIPTION QTY. 07821 Latch Assembly without Interlock (Sold in kit) 67350 Retaining Ring, External, Carbon Steel, 0.219 shaft diameter...
  • Page 279 ® SORVALL CENTRIFUGES RT/T6000D and RT/T60000B CENTRIFUGES Serial Number 9101800 and Above 9-3. Illustrated Parts This section contains illustrations of the centrifuge assemblies. Each illustration identifies replaceable parts by item numbers. The item numbers are keyed to accompanying parts lists, Which provide part numbers and descriptions of the items.

  • Page 280: Rt/T6000D

    ® SORVALL CENTRIFUGES RT/T6000D and RT/T6000B centrifuges Serial Numbers 9101800 and Above Table 9-6. Suggested Spare Parts Part Number Description 07887 Motor Assembly, 115 V 07885 Gyro Assembly, Complete 07409 Controller P.C. Board Assembly 83039 Display P.C. Board Assembly, RT6000D 83088 Display P.C.
  • Page 281 ® SORVALL CENTRIFUGES RT/T6000D and RT/T60000B CENTRIFUGES Serial Number 9101800 and Above Table 9-7. Parts: RT6000B (SN 9101800 and Above) and RT6000D (keyed to figure 9-20) ITEM DESCRIPTION QTY. 07524 Cover, Access 67351 Screw, Phillips, Pan Head, No. 8-32 x 3/8" Long 63936 Lockwasher, External Tooth, No.
  • Page 282 ® SORVALL CENTRIFUGES RT/T6000D and RT/T60000B Centrifuges Serial Number 9101800 and Above Table 9-7. Parts: RT6000B (SN 9101800 and Above) and RT6000D (keyed to figure 9-20) (continued) ITEM DESCRIPTION QTY. 67853 Washer, Steel, Zinc Plate, No. 10 67383 Flatwasher, Nylon, 0.194 I.D. x 0.375 O.D. x 0.125" Thick 67875 Velcro®...
  • Page 283 ® SORVALL CENTRIFUGES RT/T6000D and RT/T60000B CENTRIFUGES Serial Number 9101800 and Above Table 9-7. Parts: RT6000B (9101800 and Above) and RT6000D (keyed to figure 9-20) (continued) ITEM DESCRIPTION QTY. 64877 Woodruff Key, 3/32 x 3/8" 07572 Support, Block Shaft 60023 Truarc®...
  • Page 285 ® SORVALL CENTRIFUGES RT/T6000D and RT/T6000B Centrifuges Serial Number 9101800 and Above Table 9-8. Parts: T6000B (SN 9101800 and above) and T6000D (keyed to figure 9-21) ITEM DESCRIPTION QTY. 07994 Access Cover, 67351 Screw, Phillips, Colored, Pan Head, No. 8-32 x 3/8" Long 63936 Lockwasher, External Tooth, No.
  • Page 286 ® SORVALL CENTRIFUGES RT/T6000D and RT/T6000B centrifuges Serial Number 9101800 and Above Table 9-8. Parts: T6000B (SN 9101800 and above) and T6000D (keyed to figure 9-21) (continued) ITEM DESCRIPTION QTY. 63936 Star Washer 60184 61597 Screw, Machine, Pan Head, Slotted, SST, No. 10-32 x 3/8"...
  • Page 287 ® SORVALL CENTRIFUGES RT/T6000D and RT/T6000B centrifuges Serial Number 9101800 and Above Table 9-8. Parts: T6000B (SN 9101800 and above) and T6000D (keyed to figure 9-21) (continued) ITEM DESCRIPTION QTY. 60674 Screw, Machine, Flat Head, 82o countersink, No 6-32 x 3/8"...
  • Page 289 ® SORVALL CENTRIFUGES RT/T6000D and RT/T6000B centrifuges Serial Number 9101800 and Above Table 9-9. Parts: Drive Assembly, PN 07884 (keyed to figure 9-22) ITEM DESCRIPTION QTY. 07528 Plate Assembly, Drive 68658 Belt, V-drive3/16" Wide x 29.5" Long, Polyflex x 3/8"...
  • Page 290 ® SORVALL CENTRIFUGES RT/T6000D and RT/T6000B centrifuges Serial Number 9101800 and Above Table 9-9. Parts: Drive Assembly, PN 07884 (keyed to figure 9-22) (Cont'd) ITEM DESCRIPTION QTY. 68860 Screw, Set, Socket Hex Head, Flat Point, UNC, 3/8-16 x 1-1/2 Long 65811 Loctite No.
  • Page 292 ® SORVALL CENTRIFUGES RT/T6000D and RT/T6000B centrifuges Serial Number 9101800 and Above Table 9-10. Refrigeration System: RT6000B and RT6000D Centrifuges (keyed to figure 9-23) ITEM DESCRIPTION QTY. 83185 Condenser Assembly, 60 Hz, 115 Vac 83184 Condenser Assembly, 50 Hz, 200 Vac...
  • Page 294 ® SORVALL CENTRIFUGES RT/T6000D and RT/T6000B centrifuges Serial Number 9101800 and Above Table 9-11 Parts: Console Assembly (keyed to figure 9-24) ITEM DESCRIPTION QTY. Console Assembly (Not available) RT6000B (SN 9101800 to 9302766), 60Hz 83021 RT6000B (SN 9101800 to 9302766), 50Hz...
  • Page 295 ® SORVALL CENTRIFUGES RT/T6000D and RT/T6000B centrifuges Serial Number 9101800 and Above Table 9-11 Parts: Console Assembly (keyed to figure 9-24) (Continued ITEM DESCRIPTION QTY. 61711 Lockwasher, Internal, No. 6 x0.021 thick P.C. Board Assembly, Display 83039 RT6000D 83088 T6000D...
  • Page 297 ® SORVALL CENTRIFUGES RT/T6000D and RT/T6000B centrifuges Serial Number 9101800 and Above Table 9-12 Parts: Console Assembly (keyed to figure 9-25) ITEM DESCRIPTION QTY. ---- Console Assembly (Not available) 83156 RT6000B (SN 9302767 and above), 60Hz 83155 RT6000B (SN 9302767 and above), 50Hz...
  • Page 298 ® SORVALL CENTRIFUGES RT/T6000D and RT/T6000B centrifuges Serial Number 9101800 and Above Table 9-12 Parts: Console Assembly (keyed to figure 9-25) (continued) ITEM DESCRIPTION QTY. ♦ 67376 Screw, Flat Head, No. 6 x 0.38 Long 07513 Timer Assembly 91729 Screw, Machine, Pan Head, Phillip, SST, Thread - Forming 6...
  • Page 300 ® SORVALL CENTRIFUGES RT/T6000D and RT/T6000B centrifuges Serial Numbers 9101800 and Above Table 9-13 Parts: Lid Latch Mechanism (keyed to figure 9-26) ITEM DESCRIPTION QTY. 07821 Latch Assembly, kit (Sold in kit) 67350 Retaining Ring, External, Carbon Steel, 0.219 shaft diameter...
