Summary of Contents for IrriGreen 2

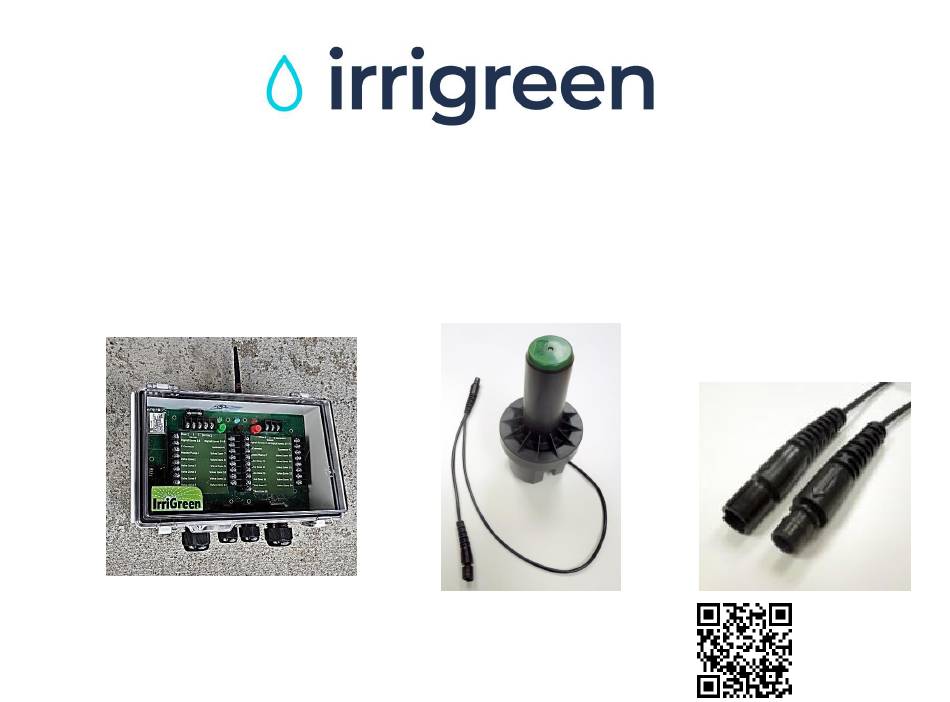

- Page 1 Irrigreen2 Installation Manual Irrigreen® Digital Sprinklers Wi-Fi/Cloud Controller Ultrasonic Flow Sensor Waterproof Plug-n-Play Cabling 16 Digital/12 Valve Controller 32 Digital/24 Valve Controller Installation Video Irrigreen.com/professionals-logged-in/ IG2-INST-1.0.3 Password: goirrigreen!
- Page 2 (50 ft w/end plug) Sprinkler Cable (50ft) Irrigreen2 Wi-Fi / Cloud Controller 16/12: 16 Digital Zones, 12 Valve Zones, 1 MV/P 32/24: 32 Digital Zones, 24 Valve Zones, 2 MV/P Digital Sprinkler (1 per zone, ~2000 sq. ft.) Cable Tee (w/end plug) FlexPipe (15 in.)
-
Page 3: Other Items Needed
*One for each Digital Zone Connects flow sensor to the 3M® DBY/R, Orbit® 57002 or similar (protect cable connections and hold IrriGreen2 Controller (IrriGreen supplies these) any extra sprinkler cable *One for the flow sensor *As needed for valve zones... - Page 4 Irrigreen System Requirements Constant pressure, good flow, clean water • 40 - 80 psi (Any constant pressure between 40 - 80 psi) • 10+ gpm (Must be checked during preliminary site visit) • Well systems require a constant pressure pump or regulated constant pressure supply;...
- Page 5 5’ 50 psi 27.5’ 50 psi 5’ 60 psi 30’ 60 psi 5’ 70 psi 32.5’ 70 psi 5’ 80 psi 35’ 80 psi 5’ Total Area At 60 psi, one Irrigreen head will evenly water up to ~2000 sq.ft.
- Page 6 System Design (1 of 2) One Head per Zone Place Head to Reach Farthest Corner, 25-35 Feet Exact placement NOTE: The zone not critical as you start up point can program the (Position 1) head to the shape must be set at...
- Page 7 System Design (2 of 2) One Head per Zone Place head 5 feet or more from the nearest edge* Design hint: For watering *For narrow shrubs/bushes zones less than without drip, 10’ wide, place you may head along edge program...
- Page 9 They will run in that numerical order* Locate each sprinkler in the numerical order you want them to run* *Head #1 runs first Digital Sprinklers have Zone Numbers Head #2 runs second 1-8, 9-16 assigned at the factory Head #3 runs third Etc.
- Page 10 Digital Sprinkler Head Depth Position head so the Digital Sprinkler cap is slightly above grade...
- Page 11 Digital Sprinkler...
- Page 12 1. Before installing any heads, flush lines to remove all dirt and sand 2. After all heads are installed, run the last Digital Sprinkler(s) on the end of all pipe runs at maximum throw for several minutes to remove all air from the system.
- Page 14 2 AAA...
-
Page 15: Controller Terminals
Controller Terminals Rain/Soil Sensor 1 Flow Sensor 1 Digital Sprinklers 1-8 Digital Sprinklers 9-16 Master Valve Valve Zones 1-12... - Page 17 Irrigreen2 App Log onto Irrigreen Wi-Fi network with your mobile device to get started Rollover to property Wi-Fi network for system monitoring (see App Manual) Irrigreen private Wi-Fi signal from Controller (2.4 GHz) White IG2 App Icon (The Green and...
-
Page 18: Controller Buttons
Controller Buttons “MODE” “SELECT” Red button Blue button runs connects controller to the “RESET” Green button: all zones and IrriGreen Wi-Fi router, if resets the system shuts down zones needed, for Wi-Fi connectivity NOTE: Hold buttons down for 2-3 seconds... - Page 19 Controller Indicator Lights LED 1- Green System has LED 2 - Blue LED 3 - Red power when blinking System is System Error watering System Status: Green LED glowing (blinks off every 8 or 16 seconds) Wi-Fi is Rolled over to...
- Page 20 Digital Sprinklers are Connected with Cables Daisy-chain up to eight Digital Sprinklers per run NOTE: If a Genius Sprinkler does not have a zone number or its zone number needs to be changed, see “Advanced Zone Address” instructions.
- Page 21 DON’T pull IrriGreen Cables DO loop excess Cable inside a valve box adjacent to the head, buried below turf DON’T cut and splice IrriGreen Cables DO branch out your Cables in different directions with Tees Use a 6FT Plug-n-Play Cable Tee; use supplied End Plug to seal the last Sprinkler connector plug...
- Page 22 Install on all Cable connections...
- Page 23 Protect Cable Connections All connections should be protected by a small valve box Install next to Digital head below turf Install box below turf...
- Page 24 Flow Sensor Wiring to Controller Black Flow Sensor lead Red Flow Sensor lead to to“Common ” “Flo1”...
- Page 25 24” 1” PVC 12” 1” PVC Install at 45 Angle !! (2 sections of PVC) (1 section of PVC) This prevents air bubbles from causing *Required by flow sensor manufacturer to eliminate flow errors...
-
Page 26: Flow Sensor Installation
Flow Sensor Installation Waterproof “DBY” connections supplied Install Flow Sensor and Splices in Valve Box Ultrasonic Use DBYs as shown Flow sensors must Picture shows an be installed at 45 Impeller flow sensor in vertical orientation Use the supplied 3M® DBY “grease cap with wire nut” connectors Push wire nut all the way into gel cap, ensure wires and wire nut are totally sealed by gel... - Page 30 Shortened Stream Distances Streams Not Evenly Spaced Make sure green cap is tight (grasp/hold riser when tightening cap) Line up filter marks with nozzle opening Clean/change filter & nozzle Check filter if streams not tracking evenly. Make sure filter markings line up with nozzle opening...
- Page 31 Optional: Impeller Flow Sensor Installation 24” PVC upstream, 12” downstream from the IrriGreen 1” flow sensor* Glue Carefully! Remove impeller sensor before gluing pipe. Glue on the sensor Impeller Flow sensor paddles will cause unscrews from the inaccurate readings and saddle tee.
- Page 32 Irrigreen Diagnostic Help Screens These appear if the system detects a problem Follow troubleshooting list on screen Wiring Faults No Sprinkler Flow Sensor* Calibration* Typically caused by System doesn’t detect Not getting usable data Not getting enough connecting multiple the Digital Sprinkler...
- Page 33 Irrigreen Diagnostic Help Screens These appear if the system detects a problem Follow troubleshooting list on screen Rotor Controller Valve Rotor drive in Controller not Ball valve in sprinkler not communicating with sprinkler not operating properly the mobile app operating properly...
- Page 34 Per FCC 15.19 (a) (3) and (a) (4): This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
